1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
1600kVA Dry Type Electrical Transformers Low Loss Cast Resin Distribution Transformer 60Hz
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Price :
CN¥88534/pieces
Certification :
CE
Frequency :
60Hz
Phase :
Three
Coil Number :
Three Windings, Multi Winding, Two Windings
application :
distribution system
Coil Structure :
layer coil, Disc Coil, round coil, Shell-Type Coil
Output Voltage :
415V, 110V, 220V, 380V, 400V , 440V, 480V
Input Voltage :
11kV, 10.5kV, 12.47kV, 10kV, 35kV, 6.6kV, 6.3kV, 6kV
Type :
Dry Type Transformer, Dry-type
Vector Group :
Dyn11 / Yyn0
Capacity/KVA :
315KVA, 400KVA, 630KVA
Application :
Indoor with high-performance requirements
Warranty :
3 years
Tapping Range :
2*2.5%/ 5%
Customized :
Logo
Cooling Method :
With cooling fans
Advantages :
Strong overload capacity, and maintenance free
Phase Number :
Three Phase
Insulation Class :
F
Highest Machinery Speed :
140m/min
Voltage Class :
6-35kv
Impedance :
4%
Demension :
405*800*895 mm
Material :
Aluminum
Product Type :
Transformer
Cooling :
AN or ANAF
Low Voltage :
10 - 0.4/0.23kV
Temperature Rise :
150°C
MOQ :
2 sets
Description
SCB13 Series 1600kVA Dry-Type Transformer | High-Efficiency, Safe, and Low-Loss Power Distribution
PRODUCTS DESCRIPTION

Product Overview

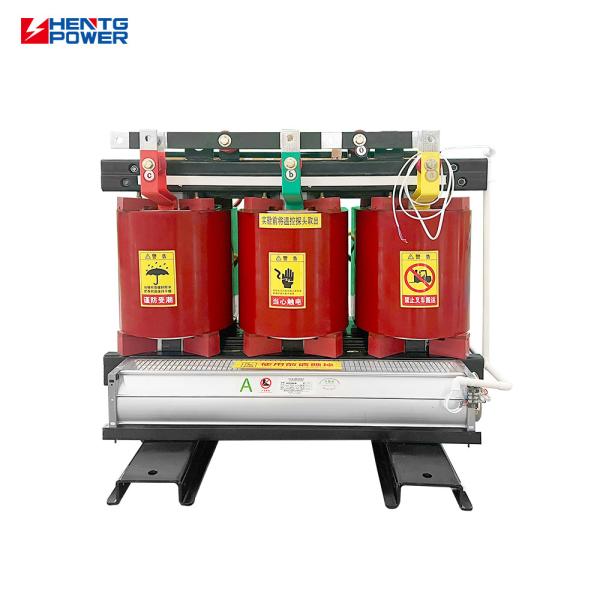

The SCB13 Series 1600kVA Dry-Type Transformer is engineered for high-demand power distribution applications in industrial, commercial, and utility settings. With its innovative cast resin insulation and efficient core design, this transformer provides exceptional performance in both energy savings and operational reliability. It’s perfect for large-scale facilities where consistent, clean, and safe power is essential.

Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7


Features

  • Rated Capacity: 1600kVA — Ideal for large commercial, industrial, and utility power systems.

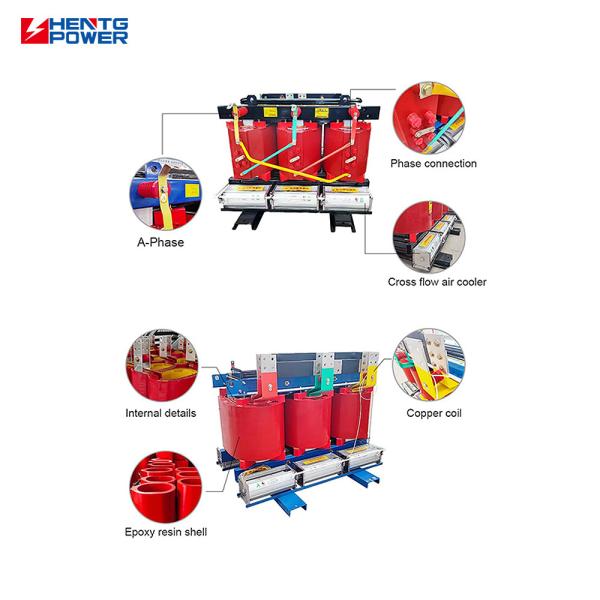

  • Epoxy Resin Insulation — Flame-retardant and moisture-resistant insulation ensures high safety standards.

  • High-Efficiency Silicon Steel Core — Low iron loss, reducing overall energy consumption and operating costs.

  • Air-Cooled (AN) — No oil required, reducing environmental risks and maintenance needs.

  • Low Noise Emission — Operates at ≤ 60 dB, ensuring quieter operations even in noise-sensitive environments.

  • Compact and Robust Design — Built for indoor installations, offering space-saving flexibility.

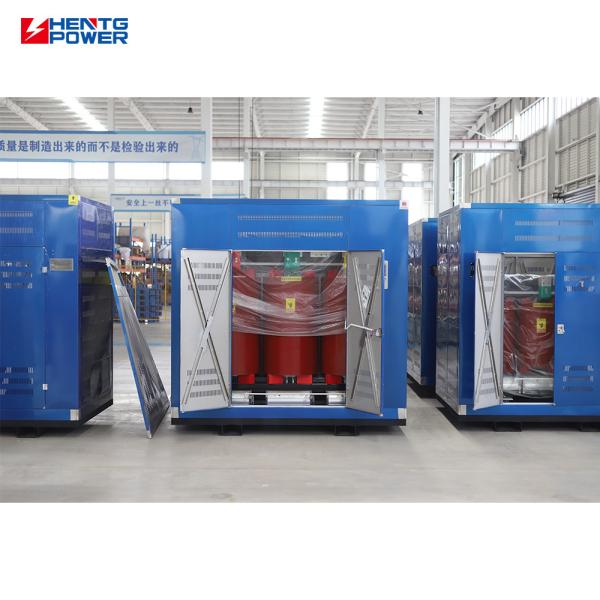

  • Protection Rating: IP20 — Additional protection options available for enhanced durability (IP23/IP44).

Benefits

  • Reduced Operational Costs: Energy-efficient design with low no-load and load losses helps reduce electricity bills.

  • Enhanced Safety: Fully dry-type, no risk of oil leakage, fire, or explosion, making it ideal for high-traffic areas.

  • Low Maintenance Requirements: No need for oil checks, external cooling systems, or complex maintenance routines.

  • Long-Term Reliability: The resin insulation provides superior mechanical strength and resistance to environmental factors.

  • Stable Power Delivery: Delivers consistent and clean voltage, ideal for sensitive industrial equipment.

  • Environmentally Friendly: Oil-free design and recyclable materials comply with green building standards.

Advantages

  • Ideal for Large-Scale Applications: Suitable for large factories, data centers, and power plants.

  • Complies with International Standards: Fully adheres to IEC 60076, GB/T 10228, and other global safety and performance standards.

  • Adaptable for Custom Needs: Custom voltages, IP-rated enclosures, and optional monitoring features available.

  • Reliability in Harsh Conditions: Can withstand overloads, mechanical shocks, and harsh environments.

  • Reduced Environmental Impact: The dry-type construction ensures zero pollution and minimal noise emissions.

COMPANY PROFILE
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
