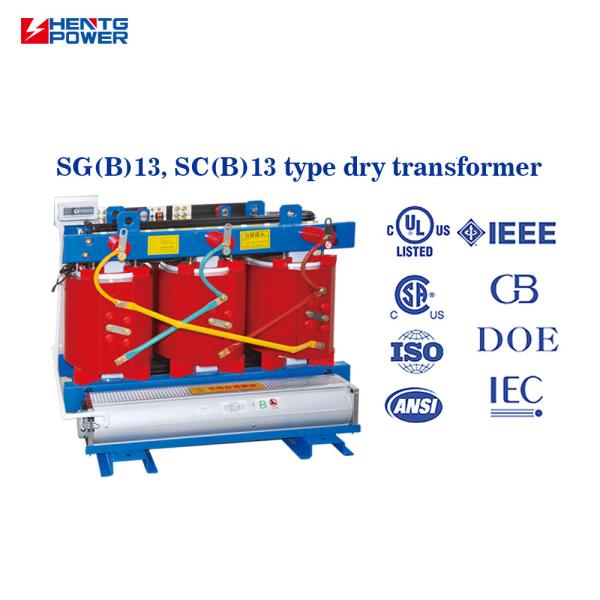

125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Certification :
CE
Price :
CN¥28400/pieces
Frequency :
50Hz, 60Hz
Phase :
Three
Coil Number :
Three Windings, Multi Winding
application :
power transformer
Coil Structure :
Shell-Type Coil, layer coil, Disc Coil, round coil
Output Voltage :
415V, 110V, 220V, 380V, 400V , 440V, 480V
Input Voltage :
10.5kV, 11kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV
Type :
Isolation Transformer, Dry Type Transformer, AUTOTRANSFORMER
Warranty :
36 Months
Winding Material :
100% Copper
Vector Group :
Dyn11 / Yyn0
Cooling Method :
With Cooling Fans
Customized :
Accept
Application :
Fire Prevention & Explosion Protection
Name :
Type SC(B)13 Dry Transformer
MOQ :
2 sets
Description
SCB13 Series 125kVA Dry-Type Transformer | Compact, Safe & Energy-Efficient Power Distribution

PRODUCTS DESCRIPTION
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

Product Overview

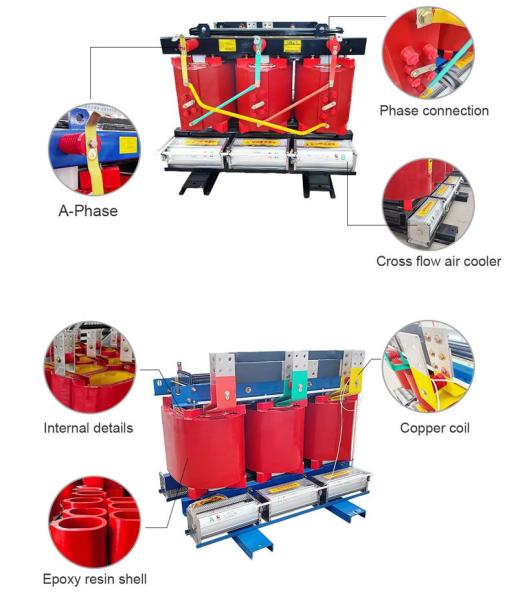

The SCB13 Series 125kVA Dry-Type Transformer is a compact and efficient power solution tailored for small to medium commercial and industrial applications. With its epoxy cast resin insulation, low-loss silicon steel core, and air-cooled design, it offers long-term performance, high safety, and low maintenance. It is ideally suited for indoor power distribution in facilities where fire resistance, reliability, and quiet operation are essential.

125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer
125kVA Dry Type Transformer With Cooling Fans , Copper Winding Isolation Transformer


Features

  • Rated Capacity: 125kVA — Ideal for light industrial, commercial, and infrastructure applications.

  • Cast Resin Insulation — Flame-retardant and moisture-resistant epoxy for enhanced safety and reliability.

  • Low-Loss Core Technology — Uses high-quality silicon steel to reduce no-load and load losses.

  • Air Natural Cooling (AN) — Oil-free, fanless design with quiet operation and minimal upkeep.

  • Low Noise Performance — Operating sound level ≤ 45 dB, perfect for offices, schools, and healthcare spaces.

  • Moisture & Pollution Resistance — Operates reliably in humid or dusty indoor environments.

  • Standard IP20 Enclosure — Optional IP23/IP44 protection available for tougher applications.

Benefits

  • Energy Efficiency: Reduced operational losses lead to long-term savings on electricity costs.

  • Enhanced Fire Safety: No oil means no fire risk, explosion hazard, or toxic leaks.

  • Maintenance-Free Design: No oil to monitor, no cooling fans to replace — just plug-and-play reliability.

  • Environmentally Friendly: Oil-free, recyclable materials with minimal noise and zero emissions.

  • Space-Saving & Lightweight: Compact footprint allows easy integration into constrained indoor spaces.

  • Stable Power Output: Delivers clean and consistent voltage for sensitive equipment and systems.

Advantages

  • Perfect for Small to Medium Loads: Suited for powering control systems, HVAC units, elevators, lighting, and IT infrastructure.

  • Complies with Global Standards: Manufactured in accordance with IEC 60076 and GB/T 10228 for international compatibility.

  • Quiet and Reliable: Ideal for indoor settings like hospitals, schools, server rooms, and retail spaces.

  • Adaptable to Custom Requirements: Primary and secondary voltages, enclosures, and monitoring options can be tailored.

  • Green Power Solution: Designed to support energy-saving initiatives and sustainable development goals.

FAQs
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What service scan we provide?
Accept OEM, business payment are negotiated.
