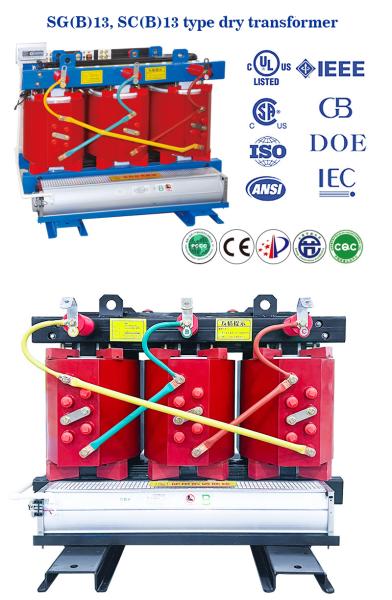

2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Certification :
CE
Price :
CN¥22667/pieces
Type :
distribution transformer, Power Isolation Transformer
Frequency :
50Hz, 60Hz
Winding Material :
Copper
application :
Power
Phase :
Three
Coil Structure :
Layered Winding
Coil Number :
Triple-winding coil
Input Voltage :
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage :
5V, 400V , 208V, 200V, 415V, 127V, 11kV, 12V , 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Cooling Method :
ANAF
Product name :
Three Phase Transformer
Application :
Power Distribution System
Usage :
Power Electronic
Material :
Copper Winding
Transformer type :
S13-MRL Oil-immersed Transformer
Vector Group :
Dyn11/Yyn0
Function :
AC Voltage Converting Device
Product Type :
Transformer
Reference Standards :
IEC60076-11
Rated Voltage :
480V
Certifications :
UL, CSA, CE
Rated Power :
15kVA
Enclosure Type :
NEMA 3R
Primary Winding Material :
Copper
Rated Frequency :
60Hz
Model :
Cast-Resin Dry Type Transformer
MOQ :
2 sets
Description
SCB13 Series 2500kVA Dry-Type Transformer | High-Efficiency Power Distribution with Low Loss & Fire-Safe Design
PRODUCTS DESCRIPTION
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

Product Overview

The SCB13 Series 2500kVA Dry-Type Transformer is a robust power distribution solution designed for large-scale industrial, commercial, and public utility applications. With its advanced cast resin insulation, low loss core, and air-cooled operation, this transformer ensures exceptional safety, stability, and energy efficiency, making it ideal for mission-critical environments.

2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards
2500kVA Dry Type Distribution Transformer Fire Safe Design IEC60076-11 Standards

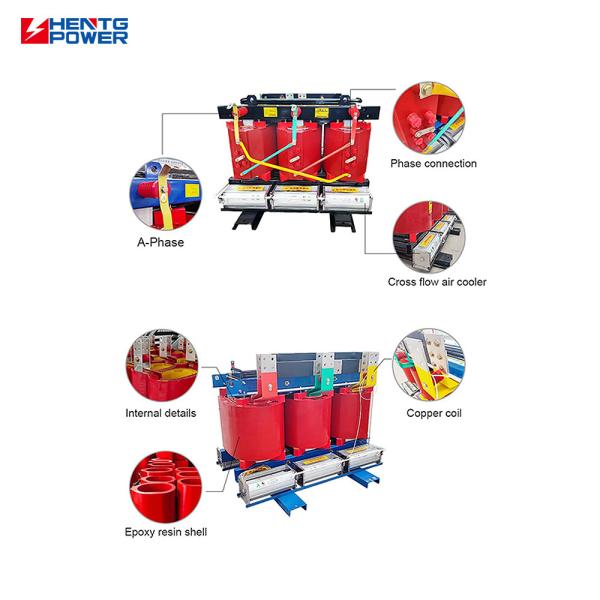

Features

  • Rated Capacity: 2500kVA — Delivers reliable power for large-scale operations and critical infrastructure.

  • Epoxy Cast Resin Insulation — Flame-retardant, non-toxic, moisture-resistant material for maximum safety.

  • Low Loss Core — Made from high-grade silicon steel for reduced no-load and load losses.

  • Cooling Method: AN (Air Natural) — Eliminates the need for oil, cutting down maintenance and environmental risks.

  • Low Noise Level — Operates under 60 dB, suitable for installation near occupied spaces.

  • Temperature Monitoring System — Built-in sensors for real-time thermal protection.

  • High Protection Level — Standard IP20 enclosure, upgradeable to IP23/IP44 for harsh environments.

  • Three-Phase Configuration — Supports stable and efficient power flow for complex electrical networks.

Benefits

  • Energy Cost Savings: The SCB13 series achieves significant energy efficiency with minimized losses, leading to long-term savings.

  • Enhanced Safety: Dry-type construction ensures zero risk of oil leakage, explosion, or fire, ideal for indoor applications.

  • Minimal Maintenance: No oil refilling, no tank inspection — just reliable operation and simple upkeep.

  • Superior Environmental Adaptability: Performs consistently across wide humidity and temperature ranges.

  • Long Operational Life: Built to last over 20 years with high reliability and consistent performance.

  • Eco-Friendly Design: Fully recyclable materials, oil-free insulation, and low carbon footprint.

Advantages

  • Ideal for Demanding Environments: Widely used in airports, hospitals, tunnels, manufacturing plants, and data centers.

  • Meets Global Standards: Fully compliant with IEC 60076 and GB/T 10228 standards for safety and performance.

  • Customizable Parameters: Voltages, taps, enclosures, and smart monitoring systems can be tailored to project needs.

  • Supports Green Building Certification: Qualifies for LEED and other sustainability credentials.

  • Fast Installation: Compact footprint and easy connection terminals speed up on-site deployment.

FAQ
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distributiontransformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. Wewill provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
