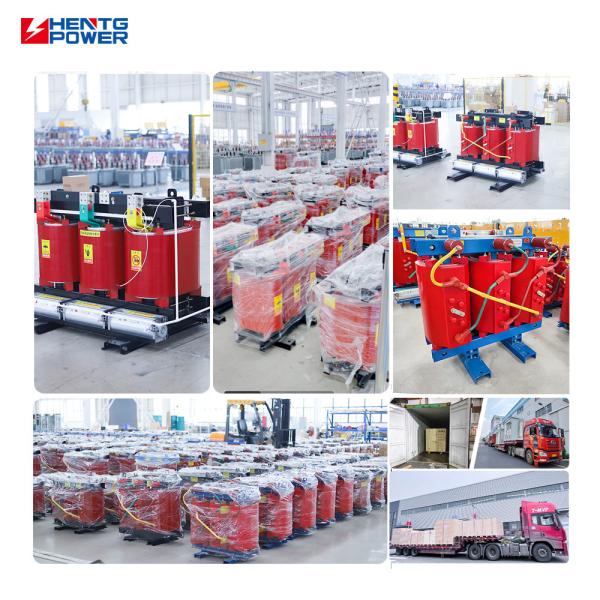

630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
MOQ :
2 sets
Price :
CN¥99170/units
Certification :
CE
Type :
distribution transformer
Material :
Copper, Copper Winding
Frequency :
50Hz, 60Hz
Shape :
Rectangle
Winding Material :
Copper
application :
Potential
Phase :
Three
Coil Structure :
TOROIDAL
Coil Number :
Multi-winding coil
Input Voltage :
10kV
Output Voltage :
0.4kV
Product name :
Three Phase Transformer
Rated capacity :
30KVA-2500KVA
Cooling Method :
ANAF
Feature :
High Security
Rated voltage :
6/6.3/10/10.5/11KV
Vector Group :
Dyn11/Yyn0
Working frequency :
50/60KHz
Operating temperature :
40 To+180
Transformer type :
SC-B-13
Description
SCB13 Series 630kVA Dry-Type Isolation Transformer | High Efficiency | Low Noise | Maintenance-Free
PRODUCTS DESCRIPTION
The SCB13 630kVA dry-type isolation transformer is designed to provide stable, safe, and efficient power distribution in sensitive environments. Utilizing advanced epoxy resin cast technology, it offers reliable electrical insulation, improved safety, and high energy efficiency. Ideal for critical applications such as medical devices, data centers, and industrial systems, it guarantees the separation of input and output circuits, ensuring no electrical interference and reducing the risk of system failures.630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
630kVA Dry Type Transformer Low Noise Maintenance Free 3 Phase Isolation Transformer
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7

FEATURES

  • Electrical Isolation: Provides complete isolation between primary and secondary circuits, preventing interference and reducing ground loop issues.

  • Epoxy Resin Insulation: High dielectric strength and excellent moisture resistance, ensuring safety and reliability in harsh environments.

  • Low Noise Operation: Noise level ≤ 50dB, making it suitable for indoor applications such as offices, hospitals, and research facilities.

  • Fire-Retardant Design: Made with flame-retardant epoxy resin to prevent fire hazards.

  • Compact Design: Optimized for space-saving installation in various indoor environments.

BENEFITS

  • Enhanced Equipment Safety: By isolating the power source from sensitive equipment, it ensures optimal protection from electrical surges, noise, and voltage fluctuations.

  • Stable Power Quality: Reduces electrical interference, providing consistent and high-quality power output, ideal for sensitive equipment like medical and communication systems.

  • Energy Efficiency: Designed with low-loss materials, this transformer minimizes energy consumption and reduces operational costs.

  • Environmentally Friendly: With no oil and a flame-retardant structure, the transformer eliminates environmental pollution risks.

ADVANTAGE

  • Long-Lasting Durability: Designed for long-term operation, with a lifespan of over 20 years under normal conditions.

  • Zero Maintenance Costs: The dry-type design eliminates the need for oil checks and regular maintenance, reducing long-term operational costs.

  • Flexible Installation Options: Can be installed in a variety of settings, including floor-mounted, cabinet-integrated, or wall-mounted options, to suit different spatial requirements.

  • Compliance with International Standards: Conforms to global safety and performance standards, including IEC, ANSI, and GB codes.

APPLICATION SCENARIO

  • Data Centers

  • Hospitals

  • Laboratories

  • Communication Equipment

  • Industrial Automation

  • Office Buildings

FAQs
Q: Who are we ?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
