SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Certification :
CE
Price :
CN¥42,877.45-55,555.50/units
Frequency :
50Hz
Phase :
Three
Coil Number :
Three Windings, Multi Winding, Two Windings, Single Winding
application :
power transformer
Coil Structure :
round coil, Disc Coil, layer coil, Shell-Type Coil
Output Voltage :
110V, 220V, 380V, 400V
Input Voltage :
10kV, 6kV, 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV
Type :
Dry Type Transformer
Rated capacity :
800kva 1250kva
Vector Group :
Dyn11 / Yyn0
Advantage :
Maintenance-free
Tapping Range :
2*2.5%/ 5%
Winding Material :
100% Copper/Aluminum
Application :
Tough conditions, such as high-humidity
Product name :
SC(B)13 Dry Type Transformer
Customized :
Accept
MOQ :
2 sets
Description
HENTG POWER High-performance SC(B)13 Dry Type Power Transformer
with Cooling Fan 800kva 1250kva
PRODUCTS DESCRIPTION
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7



Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !!!
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva

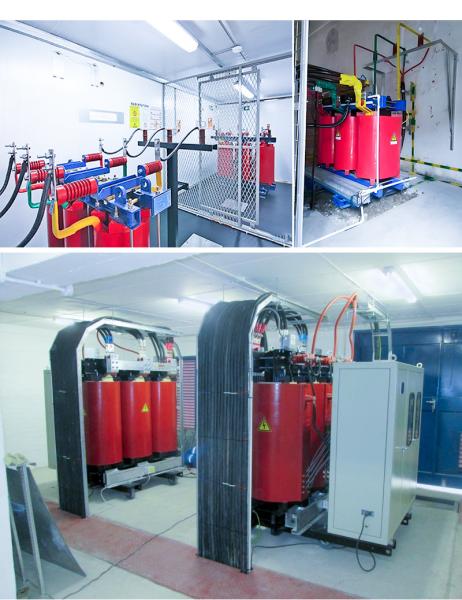

APPLICATION SCENARIO
Due to its strong short-circuit resistance, low maintenance workload, high operating efficiency, small size, and low noise, dry-type transformers are commonly used in places with high performance requirements such as fire and explosion prevention. such as Power station, factory, hospital, airport, tunnel, chemical plant, nuclear power plant...
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
OUR ADVANTAGES
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
● Professional 30+ senior engineers offer 24 hours online service and response within 30 mins.

● 100000 m² factory, 250 workers, 30+engineers .

● 4 production line, 10000+ sets annual production capacity.

● 100% OQC testing with 25 detection contents.

● 15 years power transformer designing and production experience.

● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.

●Cross-industry power transformer solution.

● Global on-site technical support.
CERTIFICATIONS
SC(B)13 Dry Type Power Transformer Three Phase With Cooling Fan 800kva 1250kva
FAQ
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

Q:How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide?
Accept OEM, business payment are negotiated.
