Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Specifications
Place of Origin :
Hunan, China
Brand Name :
HENTG Power
Model Number :
SC(B)13
Price :
CN¥24,074.05-33,618.20/units
Certification :
CE
Frequency :
50Hz, 60Hz
Phase :
Three
Coil Number :
Three Windings, Multi Winding, Two Windings, Single Winding
application :
distribution system
Coil Structure :
layer coil, Disc Coil, round coil
Output Voltage :
415V, 110V, 220V, 380V, 400V
Input Voltage :
11kV, 10.5kV, 12.47kV, 10kV, 35kV
Type :
Dry Type Transformer, Dry-type
Vector Group :
Dyn11 / Yyn0
Capacity/KVA :
315KVA, 400KVA, 630KVA
Application :
High-load electricity
Customized :
Accept
Cooling Method :
With cooling fans
Advantages :
Safe, fireproof, pollution-free
Shape Of Core :
U
Enclosure Type :
NEMA 1/3R
Symbol :
Yy0|Yyn0|Dyn11
Voltage Class :
6-35kv
Insulation Class :
Class F/H
Drying Chamber :
1-8 sections
Materials :
aluminum/copper
Enclosure :
IP20/IP23
Transformer Type :
dry type Transformer
Capacity :
3500 kVA or Customized
Winding :
Cooper Winding
MOQ :
2 sets
Description
HENTG POWER Dry Type Transformer Manufacturer Copper Aluminum
Winding 315kva 400kva 630kva Set Down Power Transformer

VR
PRODUCTS DESCRIPTION
✅ Safe, fireproof, pollution-free, maintenance free;
✅ Low loss, low noise, significant energy-saving effect;
✅ High mechanical strength, strong short-circuit resistance, good thermal stability, and long service life;
✅ Good heat dissipation performance, strong overload capacity, and can operate for a short period of time under forced air cooling;
✅ Has certain moisture resistance and can operate in harsh environments with high humidity.
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Rated capacity (KVA)
Vector Group
Voltage Combination


No-load loss
Load loss
No-load current
lmpedance


HV
Tapping range
LV




30














Yyn0 / Dyn11












10
6.3
6











±5%

±2X2.5%

(+3/-1)X2.5%
0.4
135
640
2








4.0
50




195
900
2

80




265
1240
1.5

100




290
1410
1.5

125




340
1660
1.3

160




385
1910
1.3

200




445
2270
1.1

250




515
2480
1.1

315




635
3120
1

400




705
3590
1

500




835
4390
1

630




965
5290
0.85

630




935
5360
0.85





6.0
800




1090
6260
0.85

1000




1270
7310
0.85

1250




1500
8720
0.85

1600




1760
10500
0.85

2000




2190
13000
0.7

2500




2590
15400
0.7



Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same

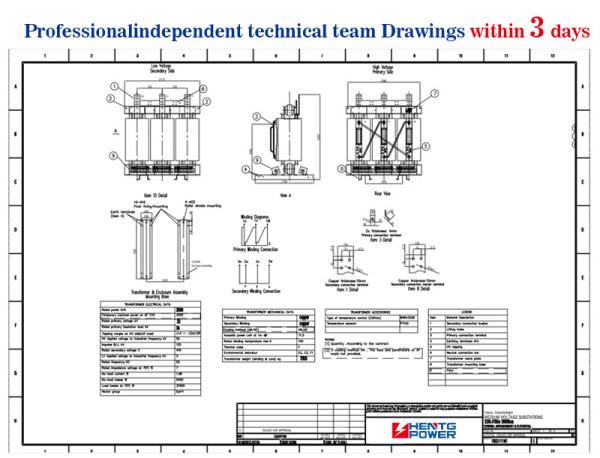

time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

If you have any questions, welcome to click here for discussion !!!
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
● Professional 30+ senior engineers offer 24 hours online service and response within 30 mins.

● 100000 m² factory, 250 workers, 30+engineers.

● 4 production line, 10000+ sets annual production capacity.

● 100% OQC testing with 25 detection contents.

● 15 years power transformer designing and production experience.

● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.

● Cross-industry power transformer solution.

● Global on-site technical support.
OUR ADVANTAGES
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer

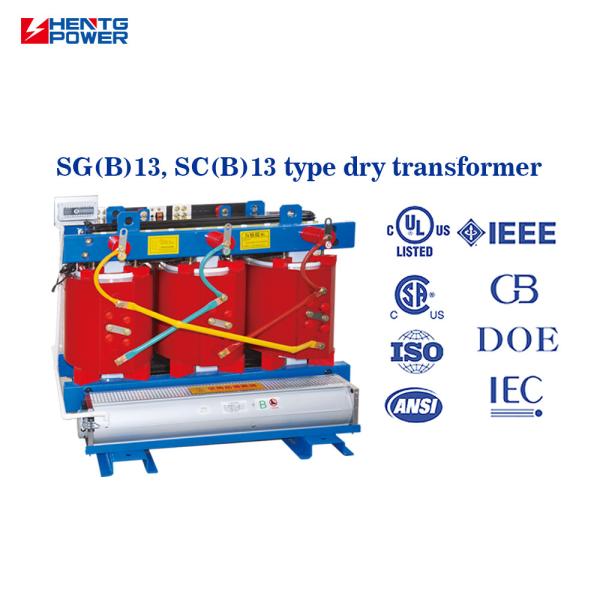

SG(B)13, SC(B)13 type dry transformer
☑ Safety performance: Oil free design, fire and explosion prevention, safer operation, suitable for high safety level places.
☑ Environmental characteristics: pollution-free, low noise, in line with green, energy-saving and environmental protection requirements
☑ Structural strength: Advanced casting technology and insulation materials are used, with high mechanical strength and strong short-circuit resistance.
☑ Thermal stability: Small partial discharge, good thermal stability, suitable for long-term high load operation; intelligent control: equipped with a temperature control system, real-time monitoring of winding temperature, with automatic air cooling, alarm, trip and other functions
☑ Energy saving effect: Both no-load loss and load loss are lower than the national standard requirements, indicating significant energy-saving benefits.
☑ Superior heat dissipation performance: Designed with natural air cooling and forced air cooling. it has strong overload capacity and can operate under overload for a short period of time
CERTIFICATIONS
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
COMPANY PROFILE
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Copper Aluminum Winding Dry Type Transformer 315kva 400kva 630kva Step Down Transformer
Q: Who are we?
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT (Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What services can we provide ?
Accept OEM, business payment are negotiated.
