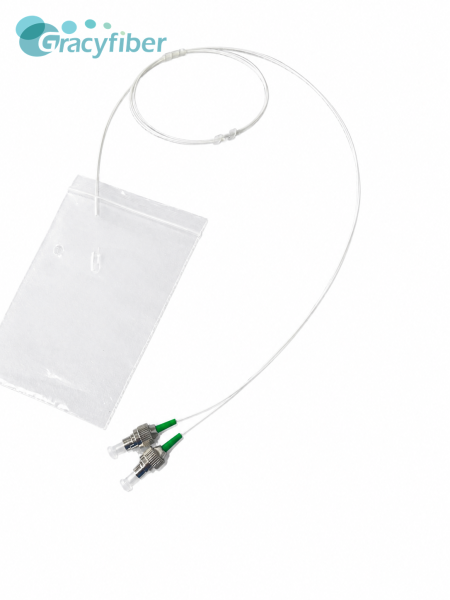

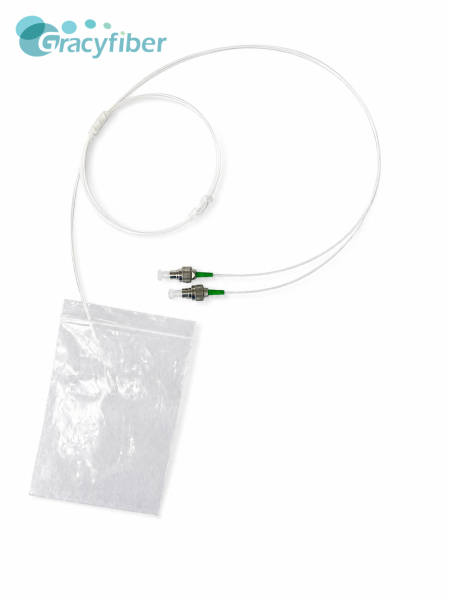

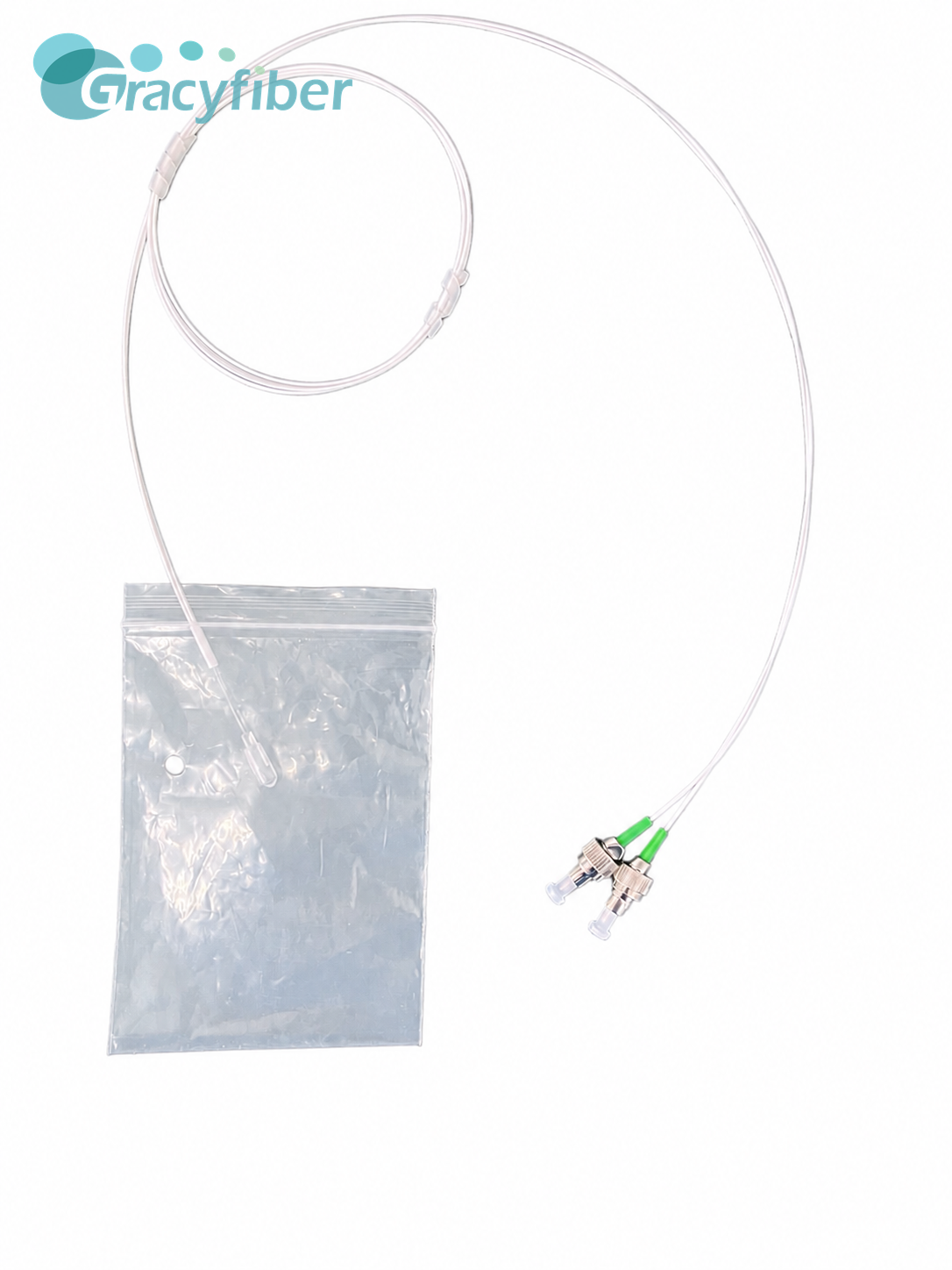

Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber
Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber
Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber
Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber
Specifications
Model Number :
910108416-35
Channel Count :
4
Channel Spacing :
250 μm
Fiber Tube Diameter :
0.9 mm
Insertion Loss :
≤0.3 dB
Description

Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber


1. Product Overview
This high-precision 4-channel single-mode fiber array (4CH SMFA) utilizes a high-quality quartz glass substrate and is specifically designed for multi-channel optical interconnects and silicon photonic chip coupling.



2. Product Features

Parameters Unit Spec. Value
Channel / 4 OK
Material / Quartz Glass OK
Channel Spacing μm 250 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3 　
　
　
　
Fiber Type / SMF-28e OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK

Ultra-low insertion loss (< 0.3 dB)

High-precision 250μm channel pitch

Corning SMF-28e single-mode fiber

All-quartz glass substrate (10×2.5×2.5mm)

High-precision A8° end-face grinding

High-standard FC/APC connectors


Custom Single Mode Fiber Pigtail | 0° AR Coated Capillary to FC-APC | SMF-28e 0.9mm White Tube with Number Marker | Gracyfiber

3. Applications

Planar waveguide device integration (PLC)

High-speed optical transceiver module packaging

Silicon photonic integrated chip coupling

High-density multi-channel optical interconnects
