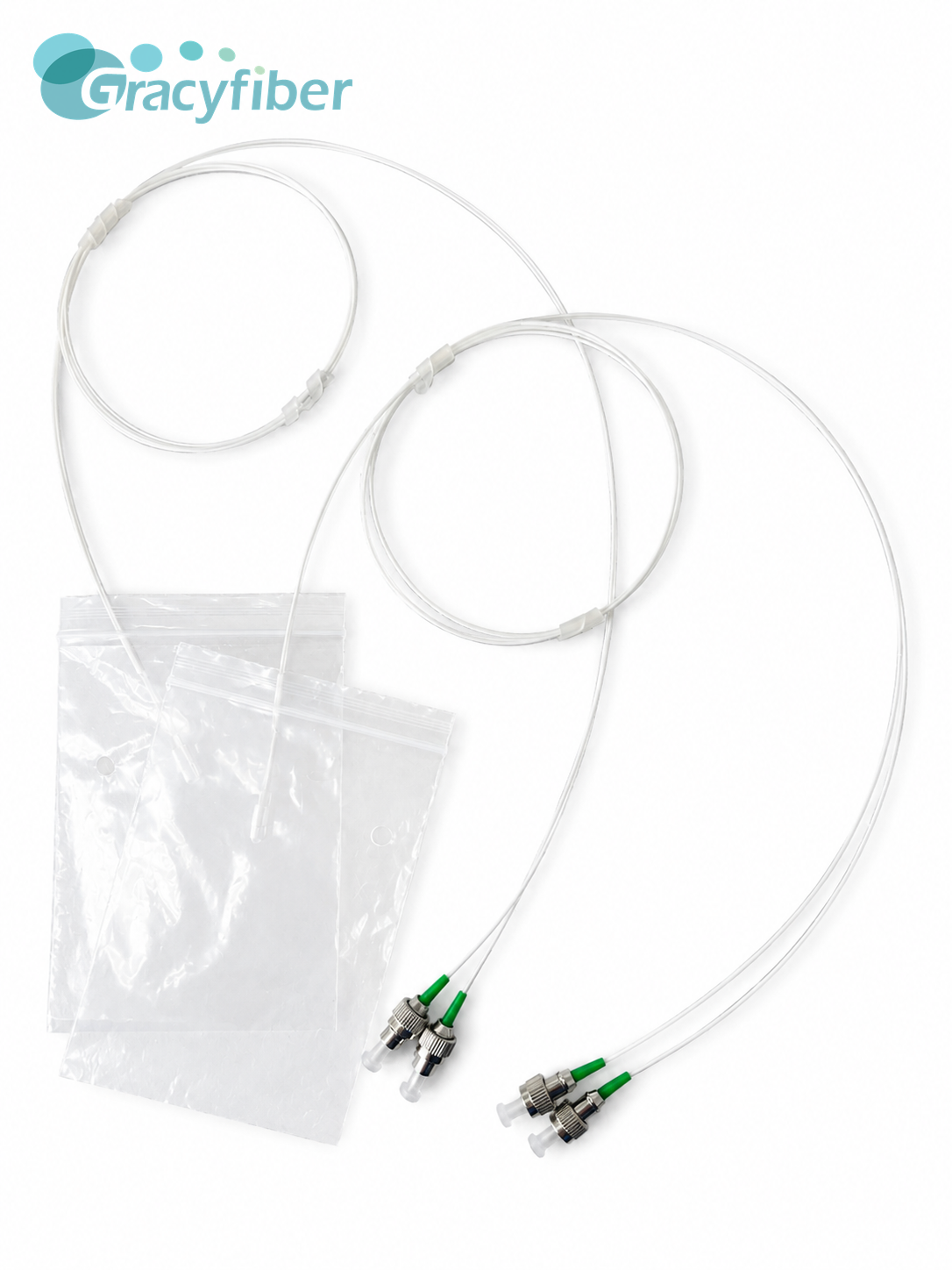

1CH Single Mode Fiber Array Block (FOFA-1010223101) | 8° Angle, FC-APC Connector | 1m Length SMF-28e with 0.9mm White Loose Tube
1CH Single Mode Fiber Array Block (FOFA-1010223101) | 8° Angle, FC-APC Connector | 1m Length SMF-28e with 0.9mm White Loose Tube
1CH Single Mode Fiber Array Block (FOFA-1010223101) | 8° Angle, FC-APC Connector | 1m Length SMF-28e with 0.9mm White Loose Tube
1CH Single Mode Fiber Array Block (FOFA-1010223101) | 8° Angle, FC-APC Connector | 1m Length SMF-28e with 0.9mm White Loose Tube
Specifications
Model Number :
910001701-06
Channel count :
1
Material :
Quartz Glass
Channel spacing :
127μm
Polishing angle :
8°
Dimensions :
2.5*2.5*7.9mm
Description

1CH Single Mode Fiber Array Block (FOFA-1010223101) | 8° Angle, FC-APC Connector | 1m Length SMF-28e with 0.9mm White Loose Tube

Product Overview

The 1CH SMFA single-channel fiber optic array uses a Quartz Glass substrate and Corning SMF-28e fiber, featuring an A8° polished end face and FC/APC connectors.

Features

Parameters Unit Spec. Value
Channel / 1 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 2.5*2.5*7.9 OK
Insertion Loss dB ≤0.3
Fiber Type / SMF-28e OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • 1-channel SMFA fiber optic array
  • Quartz Glass substrate
  • 127μm channel pitch
  • A8° polished angle
  • Corning SMF-28e fiber
  • 0.9mm white loose tube
  • Insertion loss <0.3dB
  • Return loss >55dB
  • Operating temperature 0℃ to 65℃

1CH Single Mode Fiber Array Block (FOFA-1010223101) | 8° Angle, FC-APC Connector | 1m Length SMF-28e with 0.9mm White Loose Tube

Applications

  • Optical chip input/output coupling
  • PLC planar waveguide devices
  • AWG arrayed waveguide grating modules
  • Silicon photonics device testing
  • Optical module and transceiver assemblies
  • Passive optical device packaging
  • Optical communication device testing platform
  • Precision optical coupling system
  • Laboratory R&D testing
  • Customized fiber optic array assemblies
