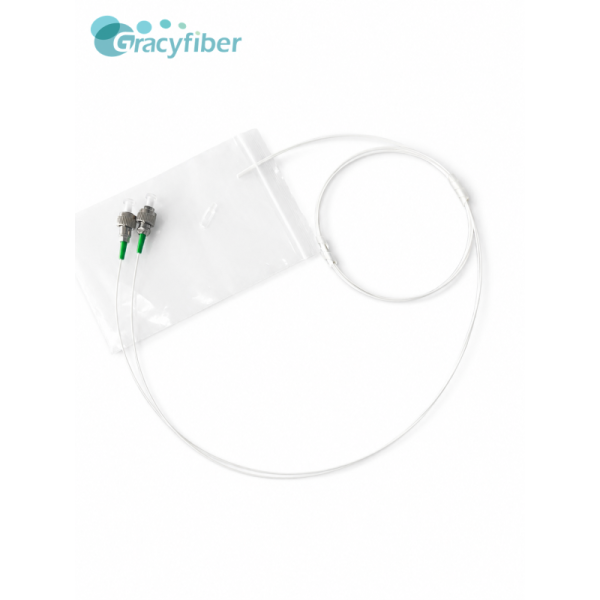

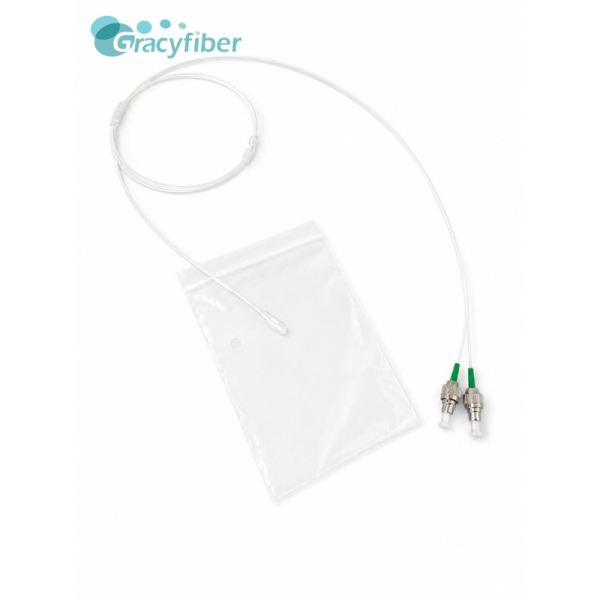

High-Precision 2-Channel Single/Multimode Fiber Array | 127/250μm Spacing, 0 Degree Flat Angle | Compact FA for Optical Transceivers
High-Precision 2-Channel Single/Multimode Fiber Array | 127/250μm Spacing, 0 Degree Flat Angle | Compact FA for Optical Transceivers
High-Precision 2-Channel Single/Multimode Fiber Array | 127/250μm Spacing, 0 Degree Flat Angle | Compact FA for Optical Transceivers
High-Precision 2-Channel Single/Multimode Fiber Array | 127/250μm Spacing, 0 Degree Flat Angle | Compact FA for Optical Transceivers
Specifications
Channel Count :
2
Material :
Quartz Glass
Channel Spacing :
127/250μm
Polishing Angle :
0°
Insertion Loss :
≤0.3dB
Description
High-Precision 2-Channel Single/Multimode Fiber Array | 127/250μm Spacing, 0 Degree Flat Angle | Compact FA for Optical Transceivers
1. Product Overview

Gracyfiber's high-precision 2CH fiber arrays are manufactured using premium Quartz Glass substrates and are designed for integration into optical communication networks and devices requiring extremely low loss and high stability.

2. Product Features
Parameters Unit Spec. Value
Channel / 2 OK
Material / Quartz Glass OK
Channel Spacing μm 127/250 OK
Polishing Angle Degree A0° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3 0.15



Fiber Type / OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized OK
Length m customized OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Ultra-low insertion loss
  • High-precision channel pitch
  • Superior material stability
  • Ultimate customization flexibility
  • High-quality terminal connections
3. Applications
  • Plane waveguide device integration
  • High-speed optical transceiver packaging
  • Silicon photonics chip coupling
  • High-density optical interconnects
  • Optical fiber sensing and testing equipment

High-Precision 2-Channel Single/Multimode Fiber Array | 127/250μm Spacing, 0 Degree Flat Angle | Compact FA for Optical Transceivers
