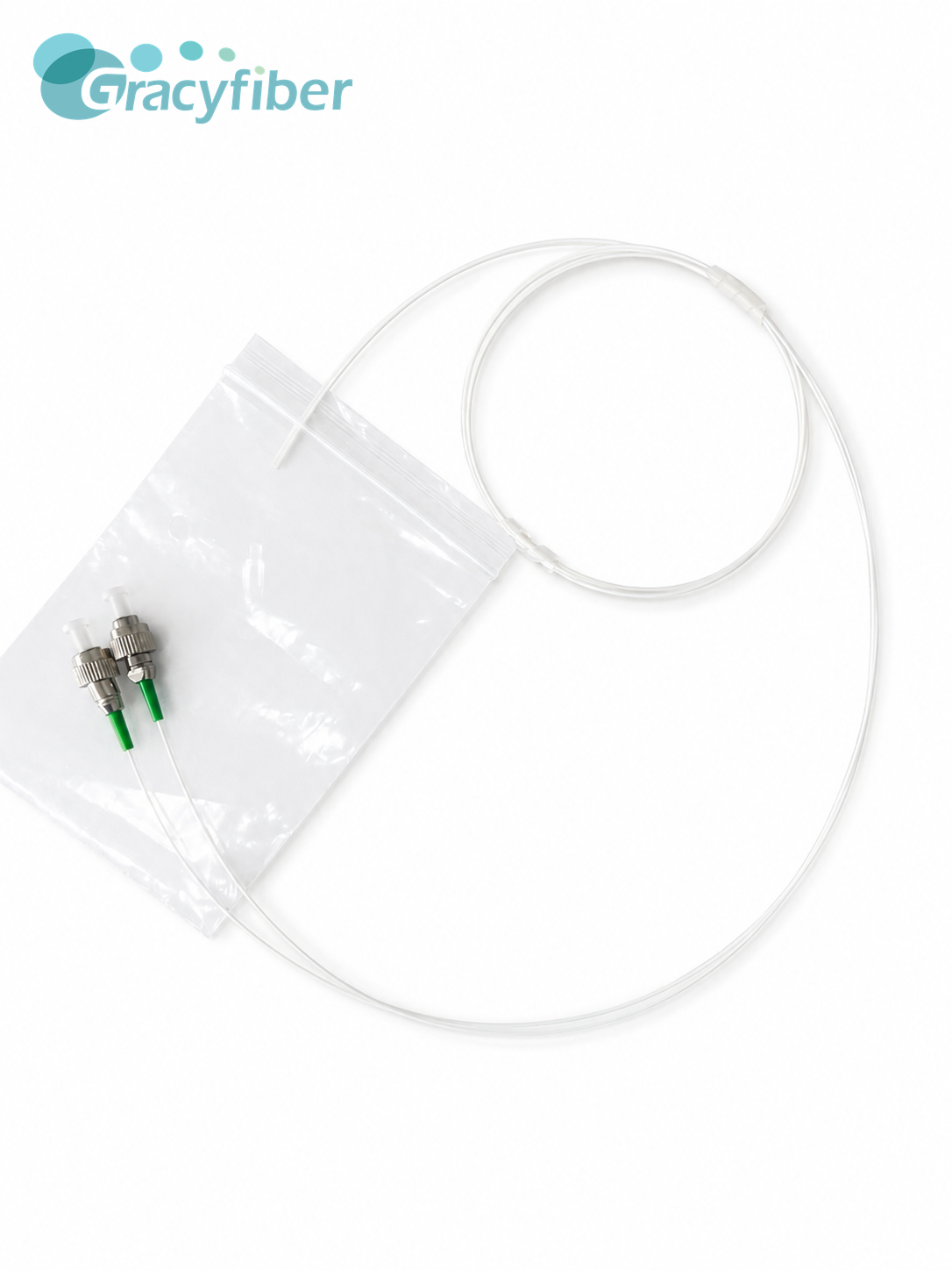

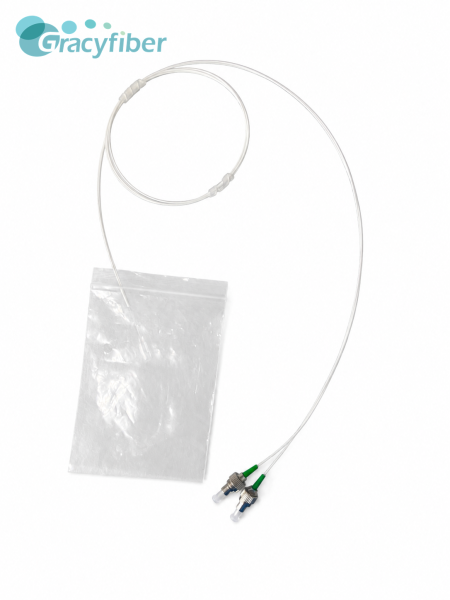

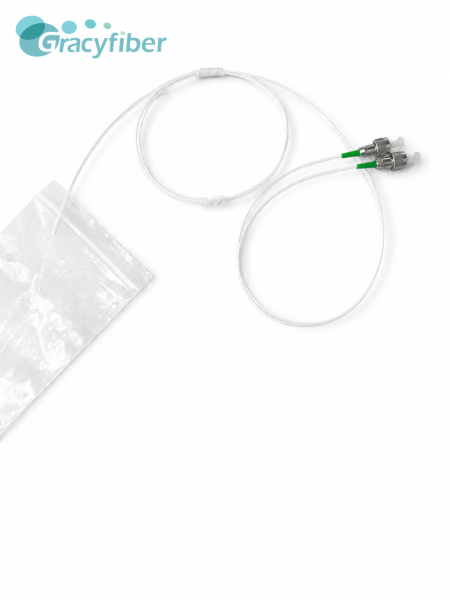

2CH Customized SM / MM Fiber Array (10x2.5x2.5mm) | Quartz 127/250 Pitch, 0° Angle | Low Insertion Loss 0.3dB FA with FC/APC Connector
2CH Customized SM / MM Fiber Array (10x2.5x2.5mm) | Quartz 127/250 Pitch, 0° Angle | Low Insertion Loss 0.3dB FA with FC/APC Connector
2CH Customized SM / MM Fiber Array (10x2.5x2.5mm) | Quartz 127/250 Pitch, 0° Angle | Low Insertion Loss 0.3dB FA with FC/APC Connector
2CH Customized SM / MM Fiber Array (10x2.5x2.5mm) | Quartz 127/250 Pitch, 0° Angle | Low Insertion Loss 0.3dB FA with FC/APC Connector
Specifications
Channel Count :
2CH
Channel Pitch :
127/250μm
Insertion Loss :
≤0.3dB
Dimensions :
10x2.5x2.5mm
Polish Angle :
0°
Description
2CH Customized SM / MM Fiber Array (10x2.5x2.5mm) | Quartz 127/250 Pitch, 0° Angle | Low Insertion Loss 0.3dB FA with FC/APC Connector
Product Overview

This 2CH fiber optic array (FA) uses a quartz glass substrate and supports 127/250μm channel pitch designs, making it suitable for high-precision fiber coupling and optical device packaging.

Features
Parameter Unit 1 2 4 8 12 16 24 32 48 64 96 128
Wavelength nm 460,630,780,850,980,1060,1310,1550,1650,1950
Materials - Pyrex, Tempax, Quartz, Silicon
Lid Option Lid / Lidless
CorePitch - - 250 127/250 127/250 127/250 127 127 127 127 127 127 127
Core Pitch Tolerance μm +/-0.3 +/-0.5 +/-0.7 +/-1.0
Polish Angle Degree 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°)
Angle Type - A Type or V Type
Insertion Loss dB ≤0.5(Typical 0.3)
Return Loss dB UPC≥45, APC≥55
FA Dimension W mm 2.5 2.5 2.5 2.5 3.5 3.5 5.7 5.7 9 10 15 19.2
H mm 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
L mm 10 10 10 10 10 12 12 12 12 12 15 18
- - Standard or Customized
Fiber Type - OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized
Fiber Coating um 250 µm / 900 µm loose tube / ribbon (optional)
Fiber Type Length cm 100+/-10 or customized
Connector - .FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85
  • 2-channel fiber optic array design
  • 127/250μm channel pitch
  • Quartz glass substrate
  • 0° polished angle
  • 10 * 2.5 * 2.5mm compact package
  • Low insertion loss
  • Insertion loss ≤0.3dB
Applications
  • PLC planar optical waveguide devices
  • AWG arrayed waveguide grating modules
  • Silicon photonics chip input/output coupling
  • Optical module and transceiver assembly
  • DWDM/CWDM optical communication system
  • Multi-channel optical power monitoring system
2CH Customized SM / MM Fiber Array (10x2.5x2.5mm) | Quartz 127/250 Pitch, 0° Angle | Low Insertion Loss 0.3dB FA with FC/APC Connector
FAQ
  • Q1: Does the product support customization?
    A: Yes. Fiber type, pigtail length, channel spacing, packaging structure, and connector type can be customized.
