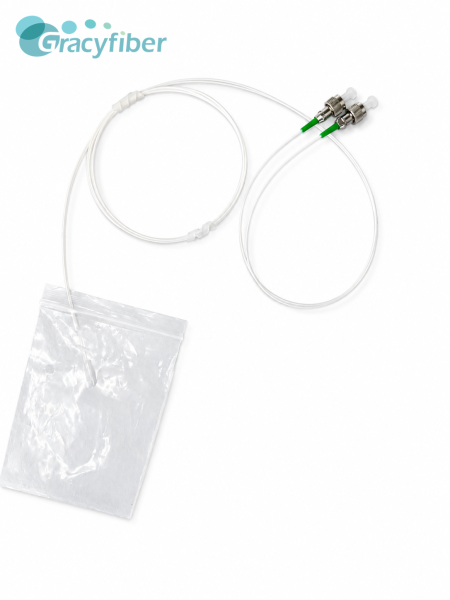

1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL
1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL
1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL
1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL
Specifications
Channel Spacing :
127μm
Polishing Angle :
8°
Insertion Loss :
≤0.3dB
Fiber Type :
SMF-28e
Fiber Tube :
0.9mm
Connector Type :
FC/APC
Description
1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC
1. Product Overview

This high-precision single-channel single-mode fiber optic array (1CH SMFA) utilizes a premium quartz glass substrate and is specifically designed for high-density optical interconnects and silicon photonics chip coupling.

2. Product Features
Parameters Unit Spec. Value
Channel / 1 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 2.5*2.5*7.9 OK
Insertion Loss dB ≤0.3 　
　
　
　
Fiber Type / SMF-28e OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Superior optical performance
  • Industry-leading wiring
  • Ultra-compact quartz packaging
  • High-precision end-face processing
  • High-reliability terminal protection

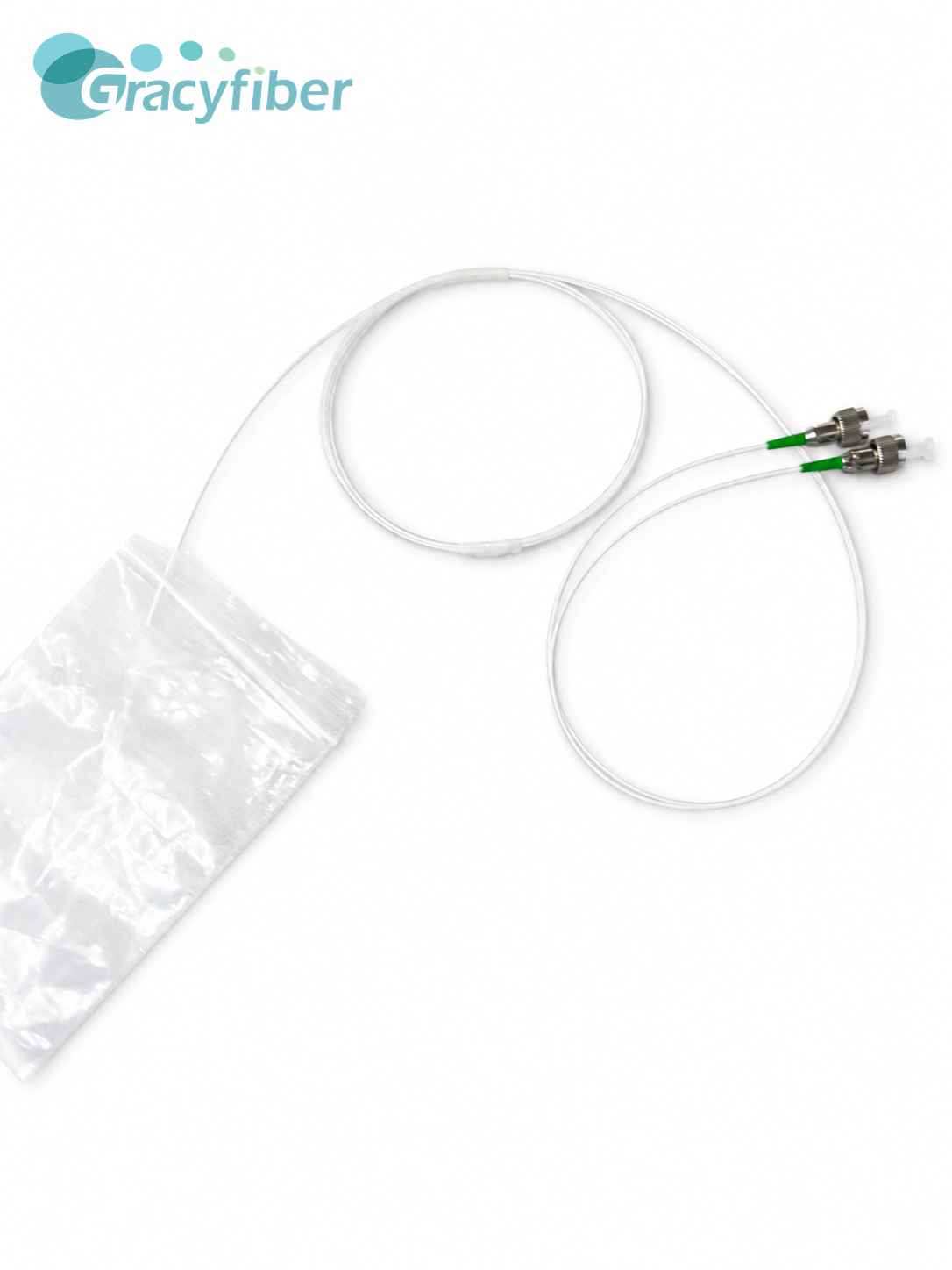

1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC

3. Applications
  • High-Speed ​​Optical Transceiver Packaging
  • Silicon Photonics Chip Coupling
  • Miniature Optical Passive/Active Devices Integration
  • Coherent Optical Communication Systems
  • High-Precision Optical Fiber Sensing Systems
