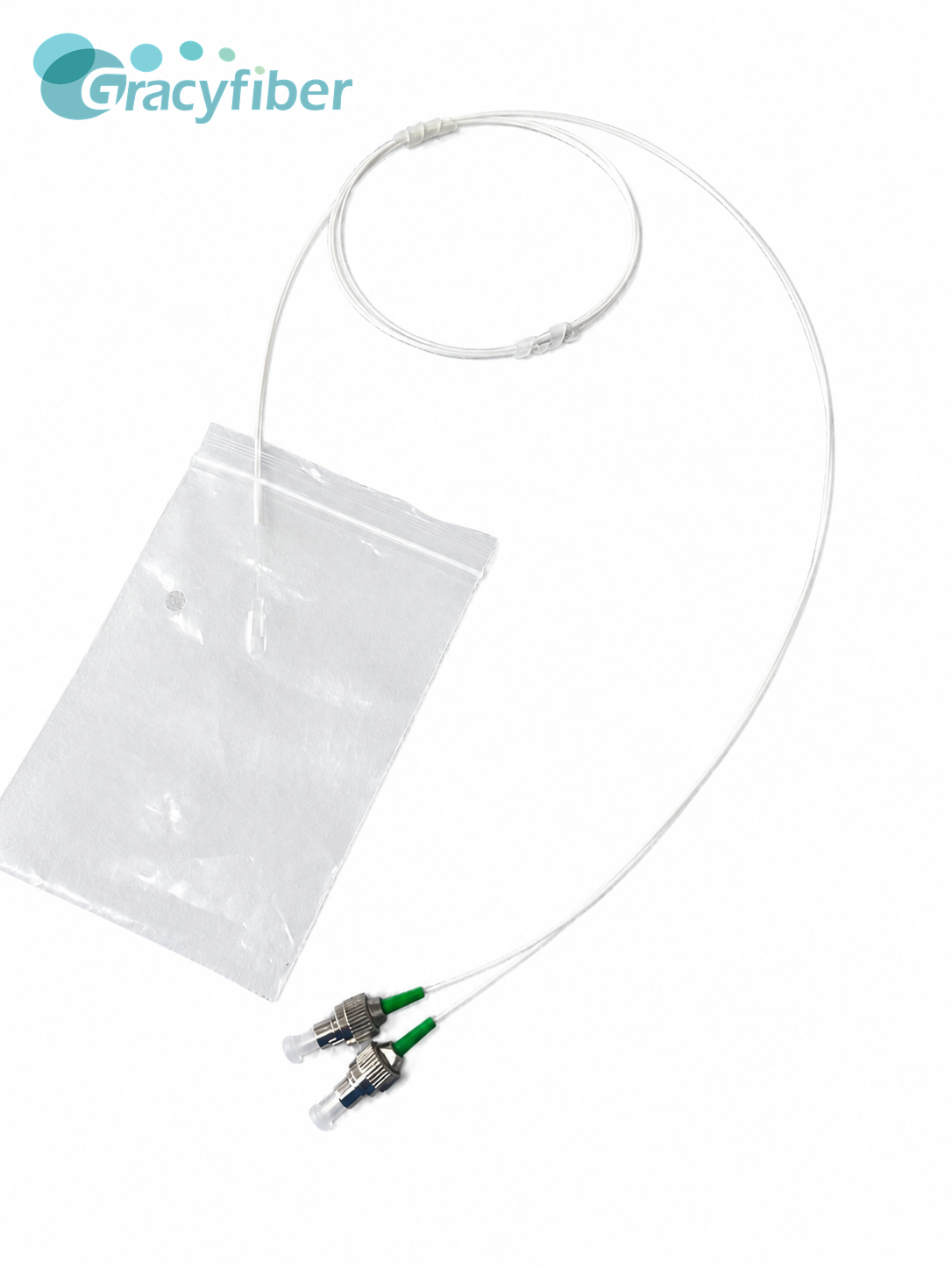

2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss
2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss
2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss
2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss
Specifications
Model Number :
910001702-29
Channel Spacing :
250μm
Polishing Angle :
0°
Insertion Loss :
≤0.3dB
Fiber Type :
Nufern UHNA7+G657A2
Description

2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss

Product Overview

This product integrates FC/APC connectors and 0.9mm white loose tubes, featuring low insertion loss, compact structure, and stable and reliable optical coupling performance.

Features
Parameters Unit Spec. Value
Channel / 2 OK
Material / Quartz Glass OK
Channel Spacing μm 250 OK
Polishing Angle Degree A0° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3 0.15
　
　
　
Fiber Type / Nufern UHNA7+G657A2 OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK


Low insertion loss, IL≤0.3dB, ensuring stable optical signal transmission.


Configured with Nufern UHNA7+G657A2 fiber, accommodating special optical field matching and bending performance.

2CH SMFA Single-mode Fiber Array, 250μm Pitch, FC/APC, Low Insertion Loss

Applications
  • Silicon photonics chip coupling and optical packaging
    Optical module and transceiver testing
    Fiber array coupling components
    Integrated optical device packaging
    Optical communication experimentation and R&D testing
    High-precision fiber alignment systems
    Optical passive device production and testing
