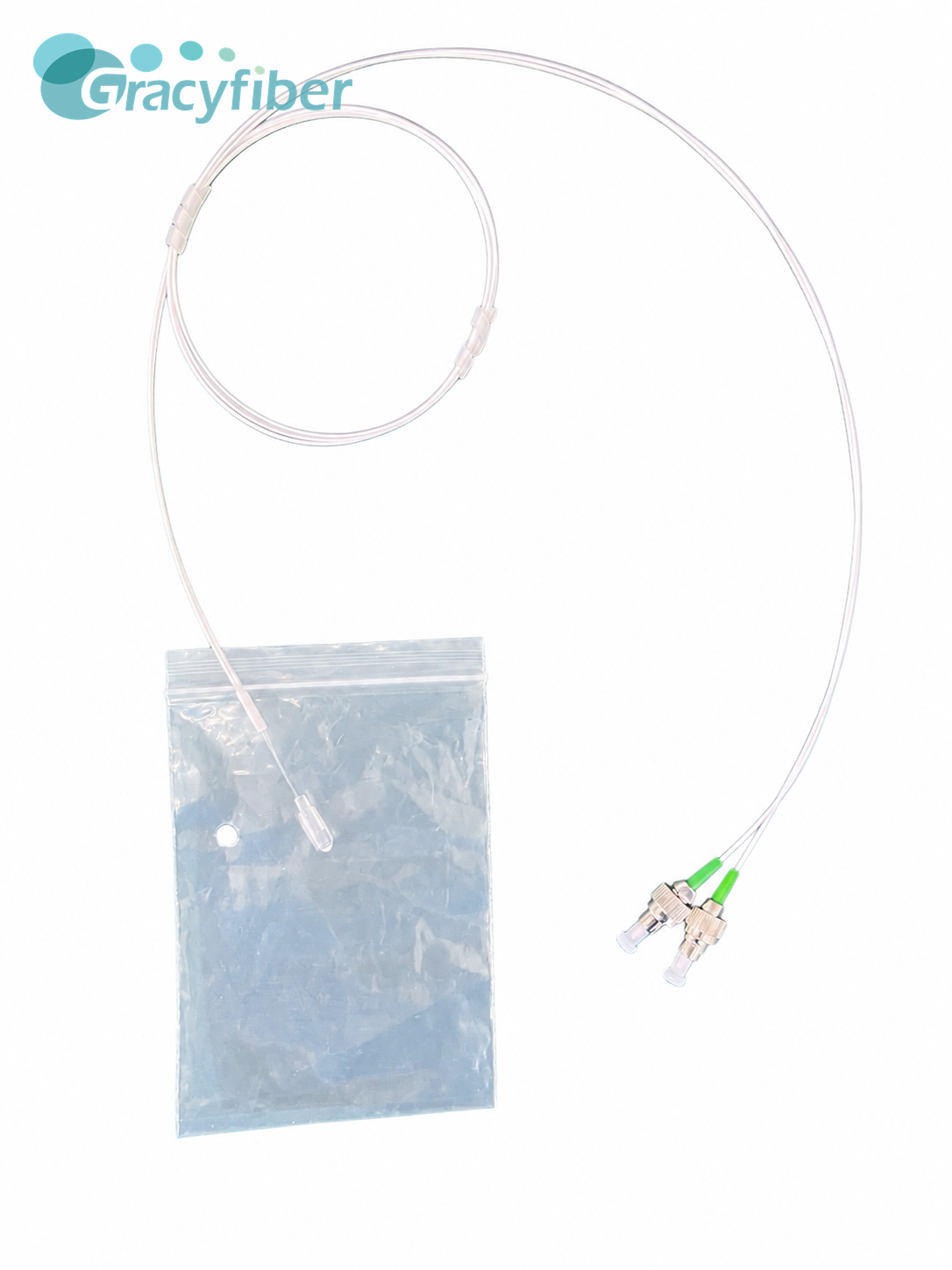

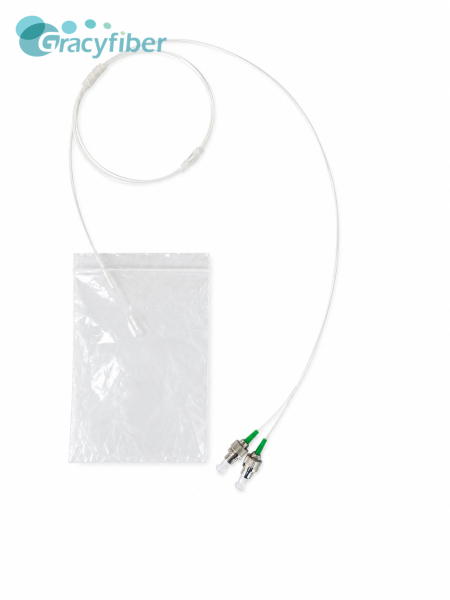

4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
Specifications
Model Number :
910108416-35
Channel count :
4
Channel spacing :
250μm
Polishing angle :
8°
Insertion loss :
≤0.3dB
Description
4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC
Product Description

This 4CH SMFA Fiber Array Assembly is a single-mode fiber optic array assembly designed for high-precision optical coupling and device packaging applications.

Key Features
Parameters Unit Spec. Value
Channel / 4 OK
Material / Quartz Glass OK
Channel Spacing μm 250 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3 　
　
　
　
Fiber Type / SMF-28e OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
4-Channel Single-Mode Fiber Array Structure
  • Quartz Glass Material
  • Channel Spacing 250μm
  • One end: 0° polished capillary with coating
  • The other end: FC/APC connector
  • Uses Corning SMF-28e Fiber
  • 0.9mm White Loose Tube
  • Standard Length 200±10cm
  • Insertion Loss ≤0.3dB

4CH SM Fiber Array (SMFA) | 250μm Pitch, Quartz Glass V-Groove | 8° Angled Polish, Corning SMF-28e | 1m Length, FC/APC

Applications
  • Optical Chip and Fiber Array Coupling
  • Optical Device Packaging and Alignment
  • Photonic Packaging
  • Fiber Interconnect
  • Optical Communication Test Platform
  • Laboratory Precision Optical Path Connection
