Specifications
Dimensions :
120.7mm x 75.8mm x 3.0mm
Place of Origin :
China
Product Name :
5 Inch LCD Panel TFT 800x480 LCD Display With 40 Pin RGB Interface
Touch Screen :
Without (Optional with touch panel)
Supply Voltage :
3.3V
Supply Ability :
5000000000 pieces/year
Color :
Color
Viewing Angle :
6 O'Clock
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Size :
5inch
Interface :
40Pin, 24 BIT RGB
Operating Temperature :
-20°C to 70°C
Display Type :
5Inch TFT LCD Module
Model Number :
KWH050ST13-F01
MOQ :
1 piece
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Tray + Inner Box + Carton
Resolution :
800*480

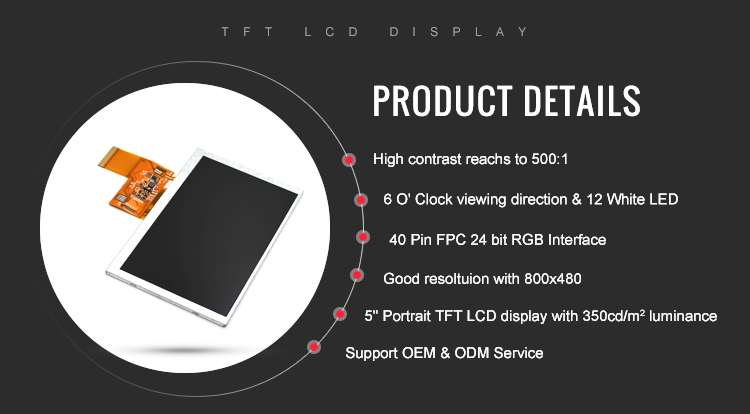

Description

5 Inch LCD Panel TFT 800x480 LCD Display With 40 Pin RGB Interface

Backlight 5 Inch TFT LCD Display Panel 800x480 With 40 Pin RGB Interface ODM

LCD Name 5 Inch LCD Panel TFT 800x480 LCD Display With 40 Pin RGB Interface

Type

5 Inch LCD Module

Resolution

800(RGB)X480 Resolution

Response Time(ms)

25

Contrast Ratio

500:1

Outline Dimension

120.70x 75.80 x 3.00mm

Active Area(HxV mm)

108.00x64.80mm

Viewing Direction

6 O'Clock

Interface

24 bit RGB, 40 Pin

Backlight

12 LED

Brightness

350cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

40mA, 3.3V

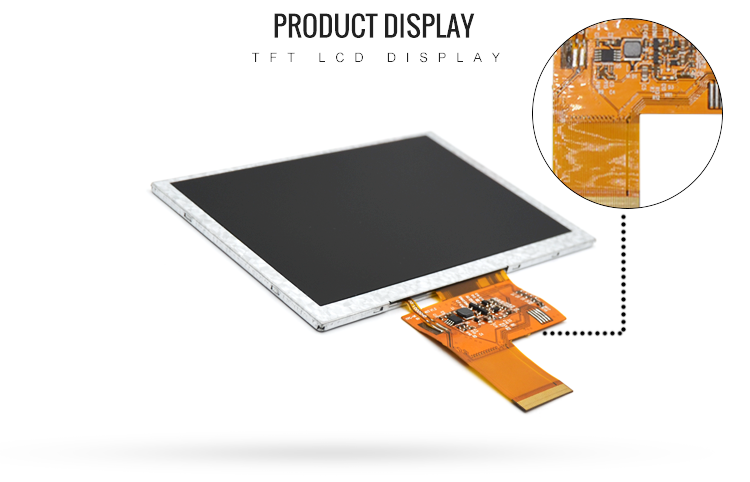

* KWH050ST13-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Backlight 5 Inch TFT LCD Display Panel 800x480 With 40 Pin RGB Interface ODMBacklight 5 Inch TFT LCD Display Panel 800x480 With 40 Pin RGB Interface ODM

Backlight 5 Inch TFT LCD Display Panel 800x480 With 40 Pin RGB Interface ODM

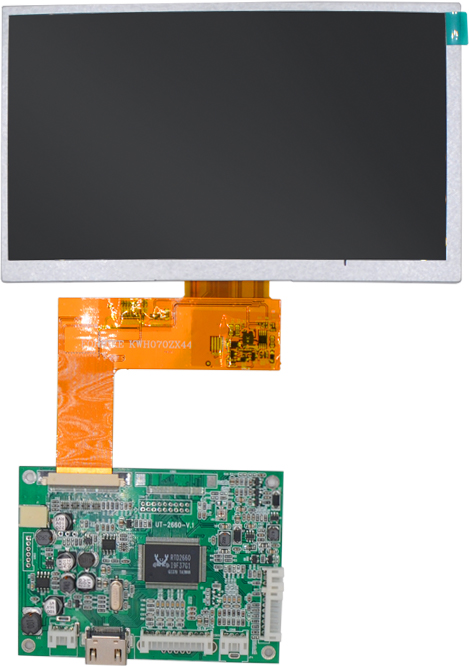

Optional with HDMI LCD Control Board.

The LCD Driver Board can be connect to 800x480, 800x600, 1024x600, 1024x768 resolution LCD display.

It's suitable to RGB interface and LVDS interface that with 30 pin, 40 pin or 50 pin.

Futhermore, the LCD Board has the function of OSD operation, remote control function, automatic shutdown when no signal.It can be used for video signal input as it should be.

We manufacture a variaty of LCD Display Module and also can provide them with LCD Driver Board. Please feel free to contact us If your have any demand or question.
