Specifications
Controller Ic :
ILI6480B
Viewing Angle :
6 O'Clock
Touch Screen :
Without (Optional with touch screen)
Color :
Color
Operating Temperature :
-20°C to 70°C
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Packaging Details :
Tray + Inner Box + Carton
Product Name :
480x272 WQVGA TFT Display 5 Inch LCD Module
MOQ :
1 piece
Resolution :
480 x 272
Supply Ability :
5000000000 pieces/year
Dimensions :
120.7mm x 75.8mm x 3.1mm
Brand Name :
Formike
Supply Voltage :
3.3V
Interface :
40Pin, 24 BIT RGB
Model Number :
KWH050ST18-F04 V.1
Display Size :
5inch
Place of Origin :
China
Display Type :
5 Inch TFT LCD Display

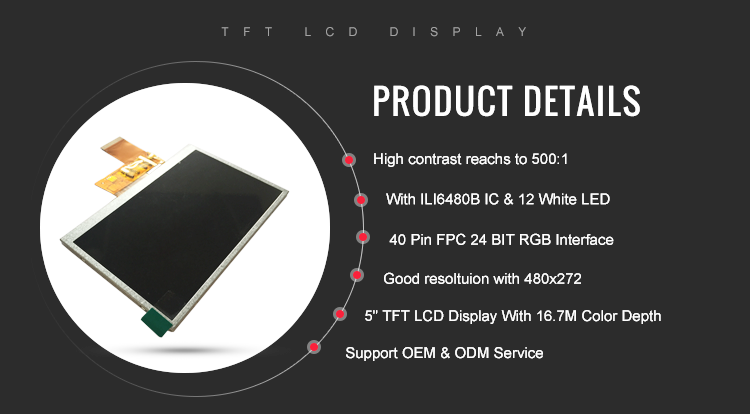

Description

480x272 WQVGA TFT Display 5 Inch LCD Module

5inch ILI6480B Color WQVGA TFT Display LCD Module 480x272

LCD Name 480x272 WQVGA TFT Display 5 Inch LCD Module

Type

5 Inch LCD Module

Resolution

480(RGB)X272 Resolution

Response Time(ms)

30

Contrast Ratio

500:1

Outline Dimension

120.70x 75.80 x 3.10mm

Active Area(HxV mm)

110.88x62.832mm

Viewing Direction

6 O'Clock

Interface

24 bit RGB, 40 Pin

Backlight

12 LED

Brightness

350cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

40mA, 19.2V

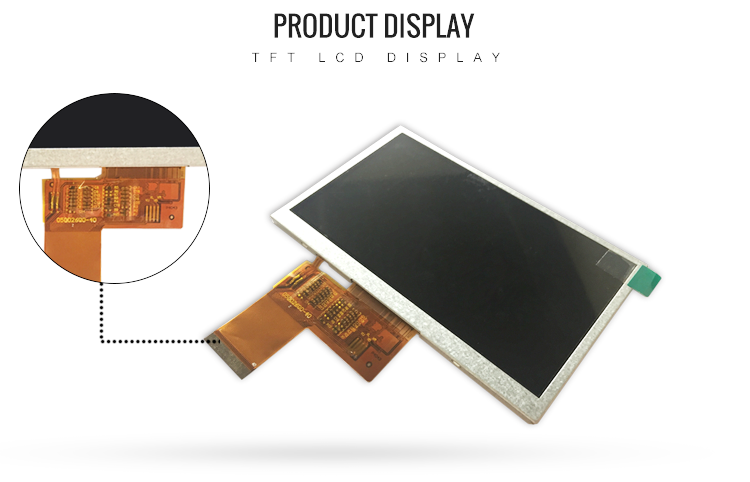

* KWH050ST18-F04 V.1 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
