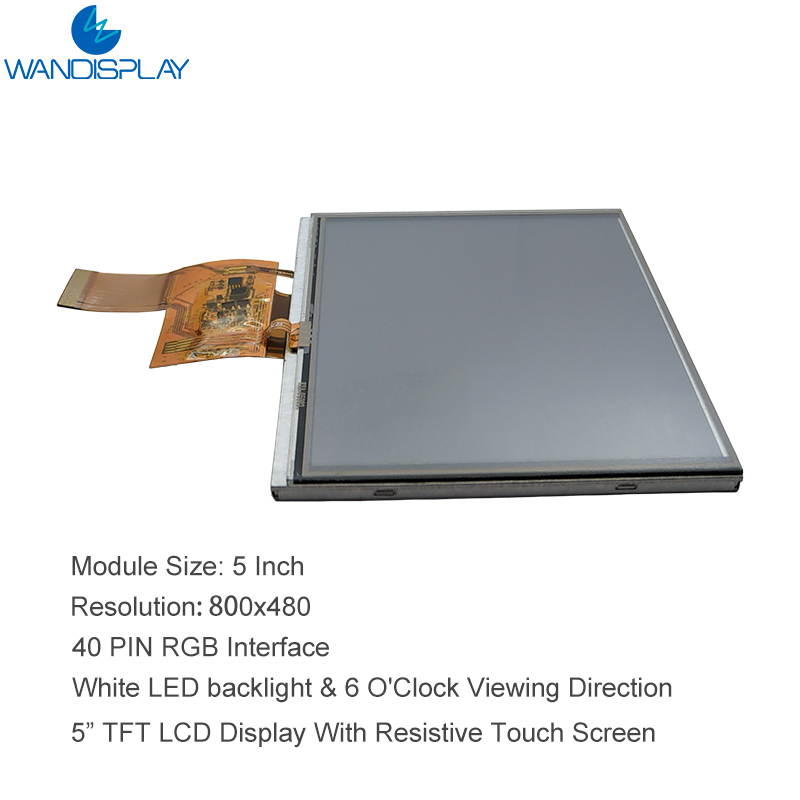

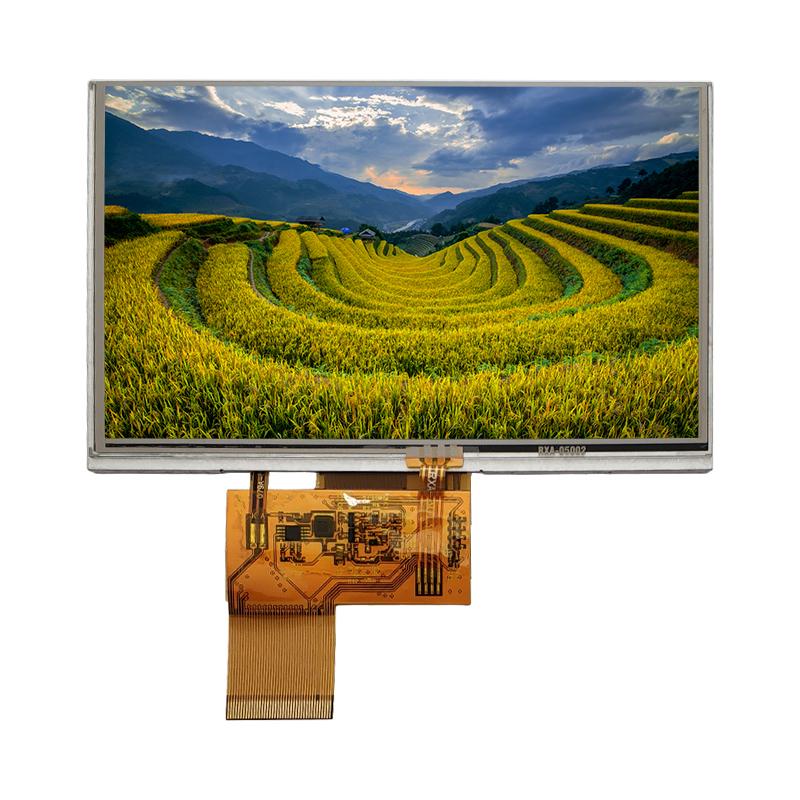

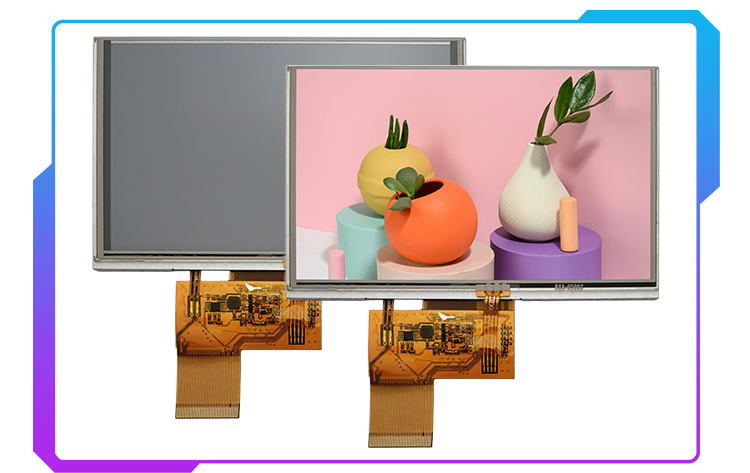

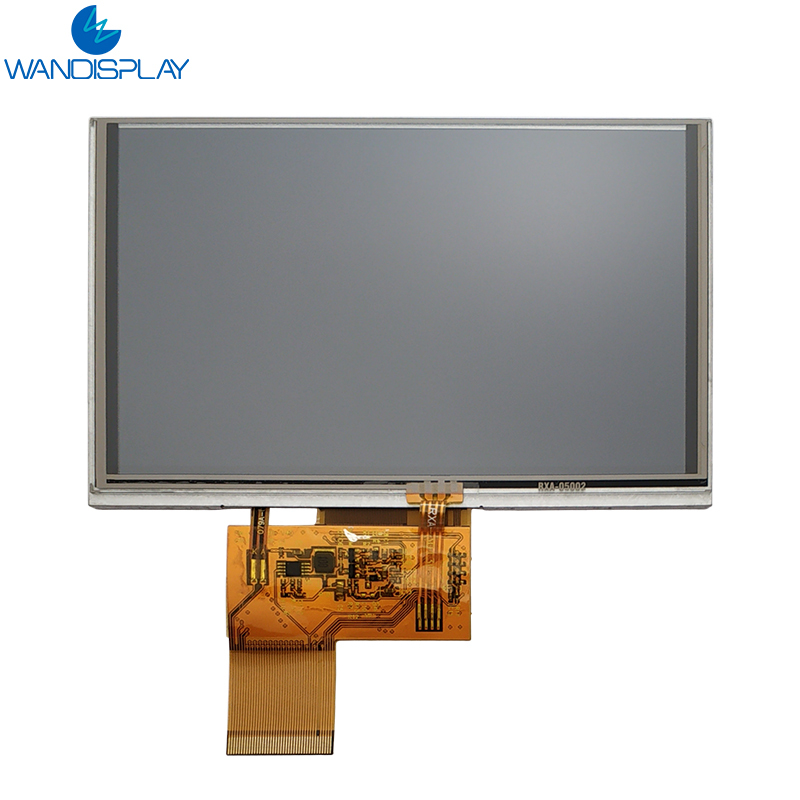

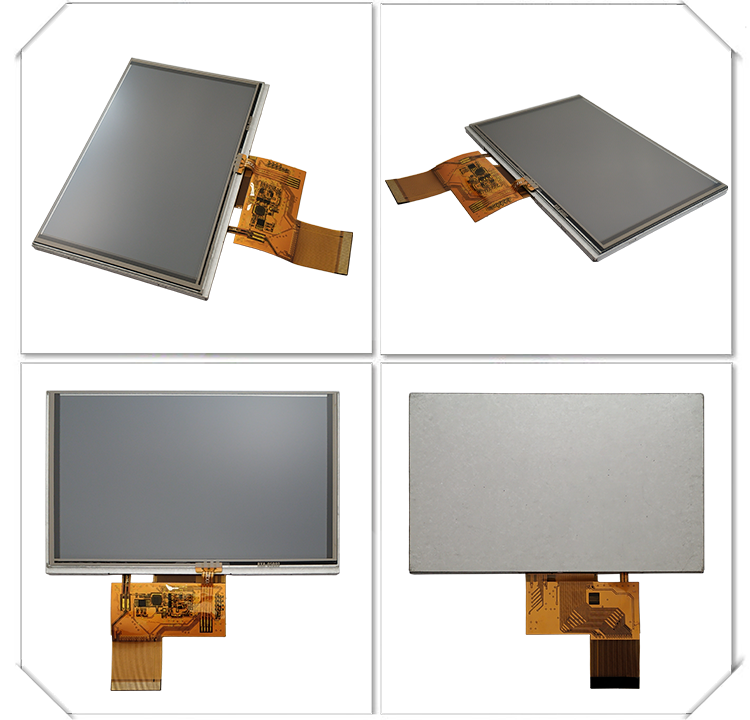

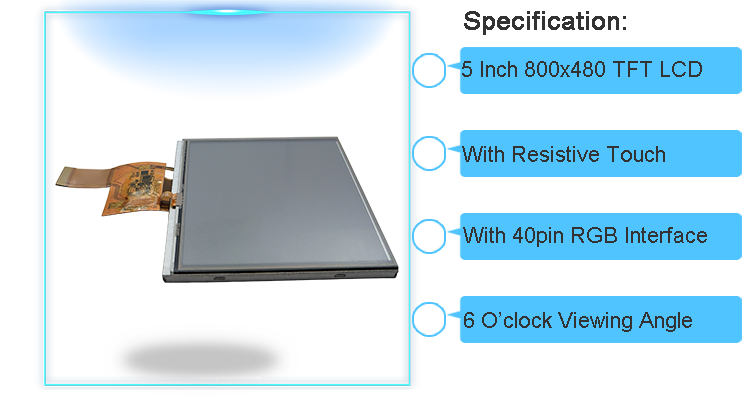

800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
Specifications
Dimensions :
120.7mm x 75.8mm x 4.2mm
Supply Ability :
5000000000 pieces/year
Display Type :
5 Inch TFT LCD Module
Payment Terms :
T/T,L/C,Credit card,Cash
Product Name :
800x480 Display TFT LCD 5 Inch LCD Screen With Resistive Touch Panel
Display Size :
5 inch
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Color :
Color
Interface :
40Pin, 24 BIT RGB
Model Number :
KWH050ST13-F02
MOQ :
1 piece
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Supply Voltage :
3.3V
Resolution :
800x480
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
6 O'Clock
Touch Screen :
With resistive touch panel
Description

800x480 Display TFT LCD 5 Inch LCD Screen With Resistive Touch Panel

800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch

LCD Name 800x480 Display TFT LCD 5 Inch LCD Screen With Resistive Touch Panel

Type

5 Inch LCD Display

Resolution

800X480

Response Time(ms)

25

Contrast Ratio

500:1

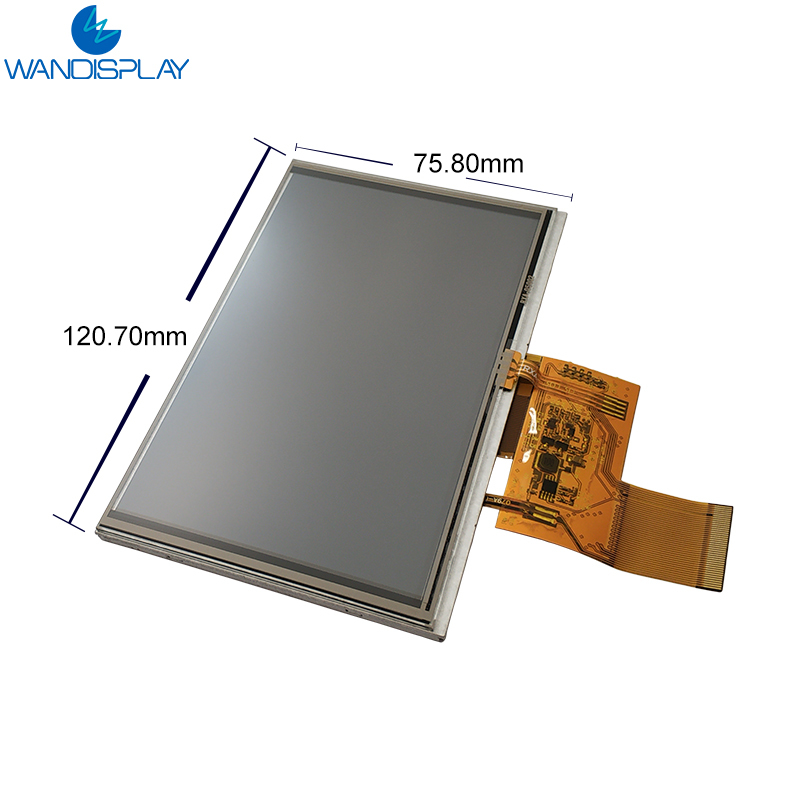

Outline Dimension

120.70x 75.80 x 4.20mm

Active Area(HxV mm)

108.00x64.80mm

Viewing Direction

6 O'clock

Interface

24 bit RGB, 40 Pin

Backlight

12 LED

Brightness

400cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

40mA, 19.2V

With Resistive Touch Screen

* KWH050ST13-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch800x480 ili9341 Resistive LCD TFT Touch Screen Display Panel 5 Inch
