Specifications
Color :
Color
Operating Temperature :
-20°C to 70°C
Product Name :
5 Inch TFT LCD 720x1280 Display MIPI DSI Touch Screen
Model Number :
KWH050ST26-S01
Resolution :
720 x 1280
Controller Ic :
ILI9881
Viewing Angle :
All
Touch Screen :
With capacitive touch panel
Place of Origin :
China
MOQ :
1 piece
Supply Voltage :
3.3V
Interface :
27 Pin, 4 LANE MIPI
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Display Size :
5inch
Dimensions :
80.70mmx 141.84mm x 3.55mm
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Tray + Inner Box + Carton
Display Type :
5Inch IPS TFT LCD Display
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Description

5 Inch TFT LCD 720x1280 Display MIPI DSI Touch Screen

5 Inch TFT MIPI DSI LCD Display Touch Screen 720x1280 Customized

LCD Name 5 Inch TFT LCD 720x1280 Display MIPI DSI Touch Screen

LCD Size

5 inch LCD Module

Display Mode

Transmissive TFT LCD
Panel Type IPS

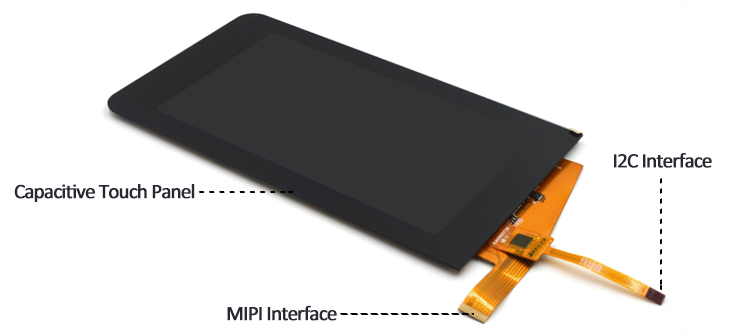

Touch Panel With Capacitive Touch Screen
Resolution 720x1280
Outline Dimension 80.70x141.84 x3.55mm
Active Area 62.10x110.40mm
Brightness 200cd/m2
Contrast Ratio 800:1
Interface MIPI, I2C
Connector 27 Pin FPC
Backlight 12 White LED
Driver IC ILI9881

Color Depth

16M

Viewing Direction

Free Viewing Angle

Supply Voltage
Supply Current
Power dissipation

19.2V
40mA
768mW

Operating Temperature

-20℃~70℃

Storage Temperature

-30℃~80℃

* KWH050ST26-S01 is a IPS type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.
* It is 720x1280 resolution TFT LCD module.
* Backlight with different brightness options from 100 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
