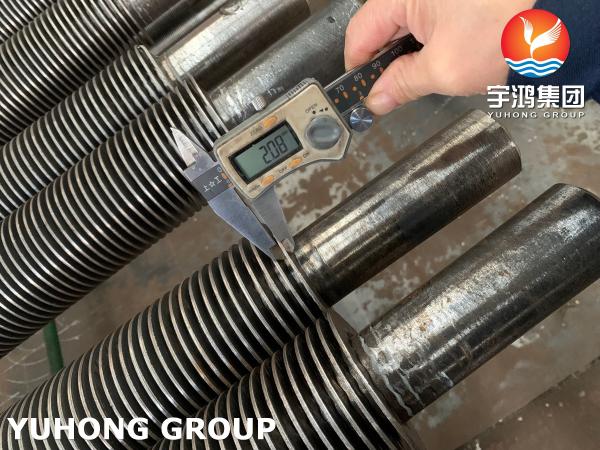

Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A106 Gr.B
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100 KGS
Price :
Negotiate
Payment Terms :
T/T,L/C
Supply Ability :
4150 Ton Per Month
Delivery Time :
20-80 days
Packaging Details :
Plywooden case with Iron Frame
Product name :
U Bend Solid Finned Tube
Type :
High Frequency Welded Finned Tube
Application :
Waste Heat Recovery Unit, Furnace Convection Section, Economizer
Dimensions :
88.9mm, 101.6mm, 114.3mm, 168.3mm, etc.
Length :
1-30000mm
Fin height :
4-17mm
Tube material :
Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc
Fin material :
Carbon Steel, Stainless Steel And Alloy Steel Etc
Warranty :
6 Months
Welding area :
According to actual demand
Description
U Bend Solid Finned Tube HFW For Fired Heater Furnace Convection Section
Product Specifications
Attribute Value
Product name U Bend Solid Finned Tube
Type High Frequency Welded Finned Tube
Application Waste Heat Recovery Unit, Furnace Convection Section, Economizer
Dimensions 88.9mm, 101.6mm, 114.3mm, 168.3mm, etc.
Length 1-30000mm
Fin height 4-17mm
Tube material Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc
Fin material Carbon Steel, Stainless Steel And Alloy Steel Etc
Warranty 6 Months
Welding area According to actual demand
Technical Specifications
Our High-Frequency Welded (HFW) U-Bend Solid Finned Tubes are specifically engineered for industrial furnace convection sections, offering superior heat transfer efficiency and durability.
Base Tube Specifications
Parameter Range
Outer Diameter 19.05-114.3mm
Wall Thickness 2.11-11.13mm
Length Up to 24000mm
U-Bend Radius 1.5D-3D
Fin Specifications
Parameter Range
Fin Height 9.5-25.4mm
Fin Thickness 0.89-2.11mm
Fin Density 24-273 FPI
Fin Type Solid, Serrated
Material Options
  • Base Tube: Carbon Steel (A179, A192), Stainless Steel (304/304L, 316/316L)
  • Fins: Carbon Steel, Stainless Steel
Key Features
  • High-frequency welding ensures superior fin-to-tube bonding
  • Excellent mechanical strength and thermal conductivity
  • Precision U-bend manufacturing with minimal ovality
  • Enhanced heat transfer efficiency
  • Superior corrosion resistance
  • Uniform fin spacing and height
Applications
  • Fired Heater Convection Sections
  • Waste Heat Recovery Units
  • Process Gas Coolers
  • Steam Generators
  • Industrial Heat Exchangers
Quality Assurance
  • 100% Helium Leak Testing
  • Hydrostatic Testing
  • Ultrasonic Testing
  • X-Ray Testing for U-Bends
  • PMI Testing
  • Third-party Inspection Available
Chemical Composition (Example for Carbon Steel)
Element C Mn P S Si
% ≤0.25 ≤1.2 ≤0.035 ≤0.035 ≤0.035
Manufacturing Process
  • Base tube preparation and inspection
  • High-frequency fin welding
  • U-bend forming
  • Heat treatment
  • Quality testing
  • Surface treatment and protection
Solid Carbon Steel Electric Low Fin Tube HFW For Fired Heater Furnace Convection Section
About Yuhong Holding Group Co., Ltd.
With 20 years of export experience to 80+ countries, we rank among China's top 5 finned tube exporters. Our 20,000 m² facility houses 55 production lines operated by 110+ skilled professionals, demonstrating our commitment to excellence in finned tube manufacturing.
We maintain strict quality control throughout the manufacturing process, ensuring each product meets international standards including ASME, ASTM, and DIN. With our advanced production technology and commitment to excellence, we continue to serve as a reliable partner for industrial heat exchange solutions worldwide.
