Specifications
Brand Name :
YUHONG
Model Number :
ASME SA106 Gr. B
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
Depend the size of finned tubes, 50-100PC
Price :
30-10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons/month
Delivery Time :
40-60 days
Packaging Details :
Ply-wooden Case With Iron Frame
Product :
Fin Tubes or Finned Tube
Type :
High Frequency Welding Finned Tubes
Standard :
ASME SA106
Material :
Gr. B Base pipes and CS Fins
Length :
According to clients' need
Size and details :
According to clients' need
Use :
Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc
Packing :
Ply-wooden Case With Iron Frame
Description

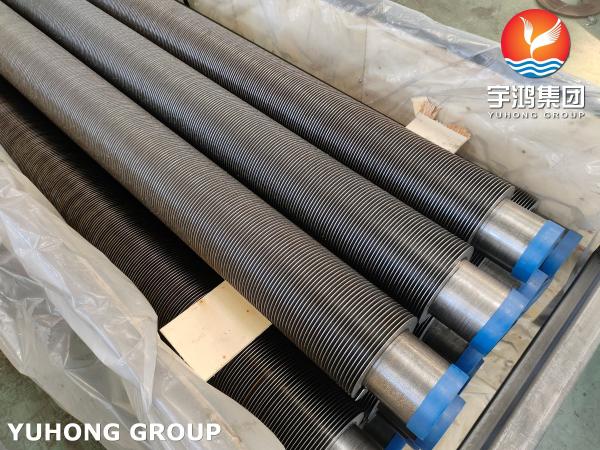

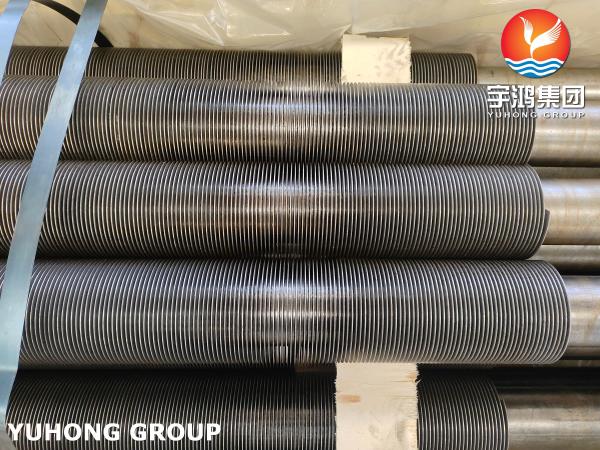

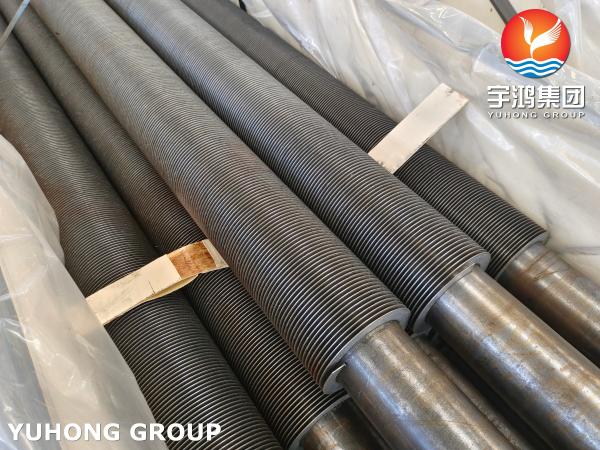

HF Welding Fin Tubes of Material ASME SA106 Gr. B Carbon Steel Tubos Aletados
Product Specifications
Attribute Value
Product Fin Tubes or Finned Tube
Type High Frequency Welding Finned Tubes
Standard ASME SA106
Material Gr. B Base pipes and CS Fins
Length Custom according to requirements
Size and details Custom according to requirements
Use Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators
Packing Ply-wooden Case With Iron Frame
Product Description
High frequency welding fin tubes are specialized components manufactured using high-frequency electrical currents to fuse metal edges without filler materials. These ASME SA106 Gr. B carbon steel finned tubes offer excellent performance in heat transfer applications.
ASME SA106 Base Tube Details
ASME SA106 specification covers seamless carbon steel pipe for high-temperature service in sizes from NPS 1/8 to NPS 48 (DN 6 to DN 1200).
Chemical Composition (%)
Grade C Mn P S Si Cr Cu Mo Ni V
Gr. B 0.30 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Mechanical Properties
Grade Tensile Strength (min) Yield Strength (0.2% Offset, min)
Gr.B 60ksi (415 MPa) 35ksi (240 MPa)
Advantages of HFW Finned Tubes
  • Minimal heat affected zone with excellent weld microstructure
  • Large heat exchange area reduces heat transfer resistance
  • Corrosion and wear resistant with low contact thermal resistance
  • Compact design reduces required installation space
  • Lower tube side pressure drop reduces operating costs
  • Enhanced stiffness and seismic performance
Fin Tube Specifications
Type Description Base tube O.D. (mm) Fin pitch (mm) Fin height (mm) Fin thickness (mm)
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal / Combined metal 8-51 1.6~10 <17 0.2-0.4
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
Applications
These finned tubes are widely used in boilers, furnaces, driers, condensers, evaporators, steam coils, heat exchangers, waste heat recovery systems, various coolers, and heat pipe technology applications.
As a leading Chinese manufacturer of finned tubes, we have extensive experience supplying to over 80 countries for heat exchanger projects, marine applications, and oil & gas installations.
