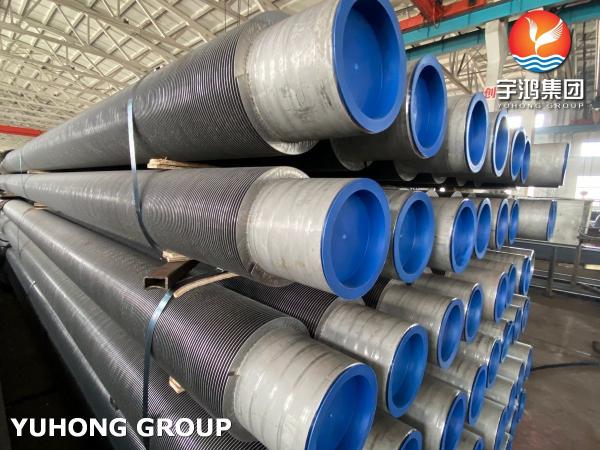

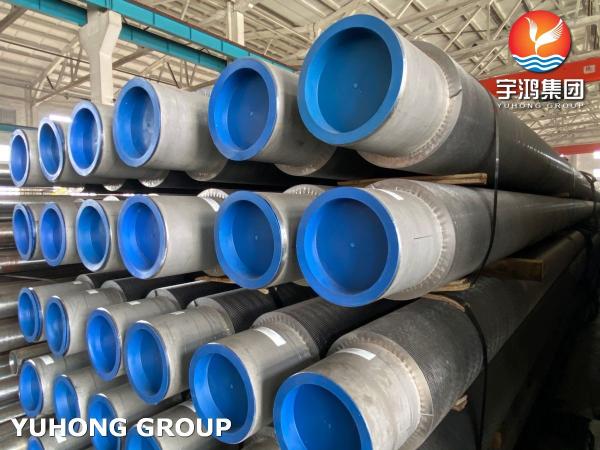

TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240
Specifications
Brand Name :
YUHONG
Model Number :
High Frequency Weld Fin Tube, Welding fin tube, Fin Tube, Finned Tube, Solid Fin tube, HFW fin tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China,Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C , T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply - Wooden Case + Iron Frame
Base Tube Material Standard :
ASTM A213, ASME SA213 , ASTM A249 , ASME SA249 , ASTM A312, ASME SA312 , ASTM A376, ASME SA376
Base Tube Material Grade :
TP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H,
Type :
Straight Tube , U bend Tube , Coil Tube , Snake Tube
Application :
Furnace Tube, Tube Coil , Radiate Tube , Convenction Tube , Fired Heater
Welding Type :
High Frequency Welding
Fin Material :
Carbon Steel , Stainless Steel , Alloy Steel
Description
High Frequency Welding Base Tube ASTM A312 TP304 Fin Material ASTM A240 SS 304
Product Specifications
Attribute Value
Base Tube Material Standard ASTM A213, ASME SA213, ASTM A249, ASME SA249, ASTM A312, ASME SA312, ASTM A376, ASME SA376
Base Tube Material Grade TP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
Type Straight Tube, U bend Tube, Coil Tube, Snake Tube
Application Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater
Welding Type High Frequency Welding
Fin Material Carbon Steel, Stainless Steel, Alloy Steel
Product Description

High Frequency Welding Fin Tube (HFW Fin Tube), also called solid type fin tube, uses steel or stainless steel strip or steel round bar directly welded on the pipe/tube surface. This type of fin tube significantly improves heat transfer efficiency compared to bare tubes. Due to the tight welding of fins to the base pipe/tube, these finned tubes are ideal for vibrating conditions.

Available Types
Serrated Fin Tube
Flat Fin Tube
Studded Fin Tube
Technical Specifications
Base Tube / Core Tube O.D: 15.88 - 325mm
Fin Height: 6 - 50.8mm
Fin Thickness: 0.8 - 3.0mm
Fin Pitch: Customizable to customer requirements
End Options: Plain Ends / Beveled Ends
No Fin Area on Both Sides: Customizable per customer request
ASME SA312 TP304 Chemical Composition (%)
C Si Mn P S Cr Ni Mo Ti Nb Cu Al V Co Fe Result
≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 18.0~20.0 8.0~11.0 / / / / / / / /
ASME SA312 TP304 Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa) Yield Strength: Rp 0.2(Mpa) Elongation: A (%)
≥515 ≥205 ≥35
Manufacturer Advantages

Yuhong Group operates a 20,000 square meter workshop with 4 finning machines for high frequency welding fin tubes, achieving a daily extrusion capacity of 700m. Our facility is conveniently located less than 2 hours from Shanghai Port, ensuring efficient transportation. Our high rigidity studded tubes perform reliably under extreme temperature and pressure conditions.

Applications
Air Cooler
Charge Air Chiller
Condenser
Evaporator
Fluid Cooler
Gas Cooler
Oil Cooler
Radiator
Refrigeration
Steam to Air Heat Exchanger
Superheater
