Welding Hydronic Air Compressor Finned Tubing Pipe ASTM A312 TP347H For HRSG System
Welding Hydronic Air Compressor Finned Tubing Pipe ASTM A312 TP347H For HRSG System
Welding Hydronic Air Compressor Finned Tubing Pipe ASTM A312 TP347H For HRSG System
Welding Hydronic Air Compressor Finned Tubing Pipe ASTM A312 TP347H For HRSG System
Welding Hydronic Air Compressor Finned Tubing Pipe ASTM A312 TP347H For HRSG System
Welding Hydronic Air Compressor Finned Tubing Pipe ASTM A312 TP347H For HRSG System
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A312, TP347H
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Payment Terms :
L/C, T/T
Delivery Time :
7-92DAYS
Packaging Details :

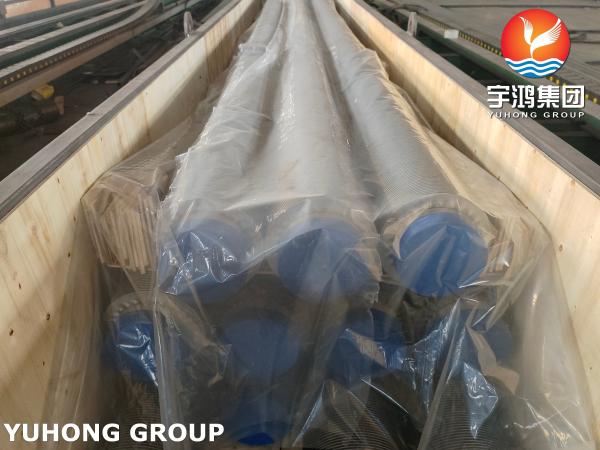

Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
TP347H
Fin Mat. :
Stainless Steel
Fin Thk. :
1.54mm
Base Tube Test :
HT, ET
Fin Tube Test :
Size Inspection
Application :
HRSG system
Description

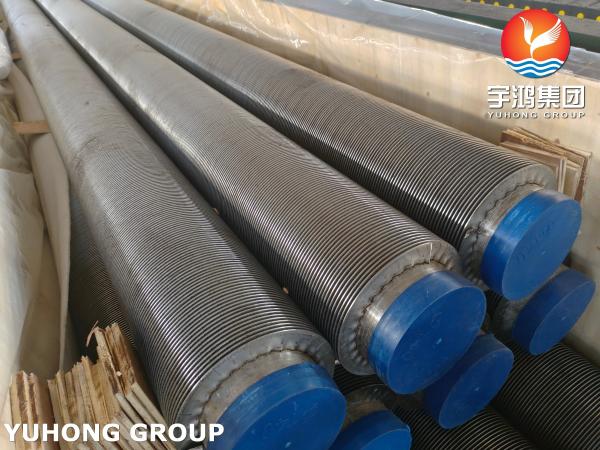

High Frequency Welding Fin Pipe ASTM A312 TP347H Stainless Steel For HRSG System
Product Specifications
Material TP347H
Fin Material Stainless Steel
Fin Thickness 1.54mm
Base Tube Test HT, ET
Fin Tube Test Size Inspection
Application HRSG system
Product Overview

High-Frequency Welding (HFW) finned pipes made from ASTM A312 TP347H stainless steel are specifically designed for Heat Recovery Steam Generators (HRSG). HRSG systems are critical components in combined-cycle power plants, capturing waste heat from exhaust gases to generate steam for energy efficiency. The use of TP347H stainless steel ensures excellent resistance to high temperatures, corrosion, and oxidation.

Material Specification
  • Base Pipe Material: ASTM A312 TP347H Stainless Steel (Seamless and Welded Austenitic Stainless Steel Pipes)
  • Grade: TP347H - a high-carbon version of 347 stainless steel with excellent creep strength at elevated temperatures.
Chemical Composition
Element Content (%)
Carbon (C) ≤ 0.04%
Manganese (Mn) 1.00 - 2.00%
Phosphorus (P) ≤ 0.045%
Sulfur (S) ≤ 0.030%
Silicon (Si) ≤ 0.75%
Chromium (Cr) 17.00 - 19.00%
Nickel (Ni) 9.00 - 13.00%
Molybdenum (Mo) ≤ 0.30%
Niobium (Nb) 1.00 - 1.50%
Mechanical Properties
Property Value
Tensile Strength ≥ 515 MPa
Yield Strength ≥ 205 MPa
Elongation ≥ 40%
Impact Energy ≥ 70 J (at -196°C)
Hardness ≤ 170 HB
Proof Stress ≥ 205 MPa
Key Features
  • High-Temperature Performance: TP347H stainless steel has excellent creep resistance and oxidation resistance, making it ideal for HRSG systems operating at elevated temperatures.
  • High Efficiency: The finned design significantly increases the heat transfer surface area, enhancing the efficiency of waste heat recovery.
  • Durability: The welding process creates strong mechanical bonding between the fins and the pipe, ensuring long service life even under thermal cycling and vibration.
  • Corrosion Resistance: TP347H resists oxidation and corrosion in high-temperature and aggressive environments, such as exhaust gases from turbines.
Applications in HRSG Systems
  • Heat Recovery Steam Generators: Captures waste heat from gas turbine exhaust and generates steam for combined-cycle power plants.
  • Economizers: Preheats feedwater to improve boiler efficiency.
  • Superheaters: Ensures steam reaches the desired temperature for turbines.
  • Evaporators: Transfers heat to generate steam from water.
System Advantages
  • Enhanced Heat Transfer: The finned pipe increases the thermal exchange surface, improving the efficiency of waste heat recovery.
  • Energy Savings: Captures and reuses waste heat, reducing fuel consumption and lowering operational costs.
  • Long Service Life: Resistant to corrosion, oxidation, and thermal fatigue, ensuring durability under continuous operation.
  • Compact Design: Finned pipes allow for a smaller, more efficient heat exchanger layout in HRSG systems.
