Specifications
Brand Name :
YuHong
Model Number :
ASTM A335 P22
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
According to Clients' requirements
Delivery Time :
45-75 Days (Depend on Customer's Requirements)

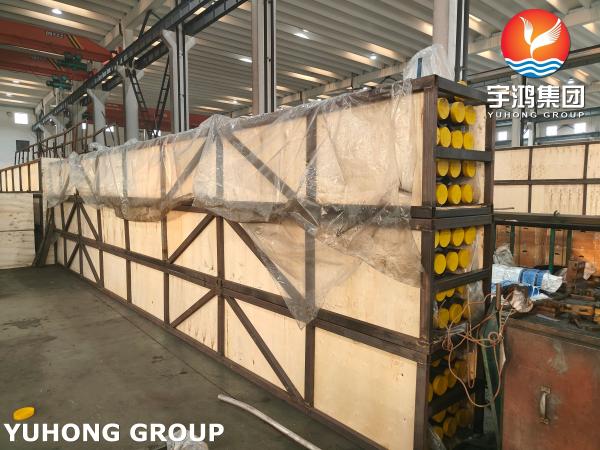

Packaging Details :
Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Base Pipe Specification&Material :
ASTM A335 P22
Fin Material :
11-13 Cr
Fin Type :
Helical Solid Finned Tubes/Spiral High Frequency Welding Finned Tube
Base Tube/Pipe OD :
15.88-230mm
Fin Pitch :
4mm-30mm
Fin Height :
8-30mm
Fin Thickness :
0.8-3mm
Pipe Length :
Customized
Application :
Air preheaters, Boiler, Heat exchangers...
Description
Alloy Steel Helical Solid Finned Tube ASTM A335 P22 For Air Preheaters Boiler
Product Specifications
Attribute Value
Base Pipe Specification & Material ASTM A335 P22
Fin Material 11-13 Cr
Fin Type Helical Solid Finned Tubes/Spiral High Frequency Welding Finned Tube
Base Tube/Pipe OD 15.88-230mm
Fin Pitch 4mm-30mm
Fin Height 8-30mm
Fin Thickness 0.8-3mm
Pipe Length Custom-sized
Application Air preheaters, Boiler, Heat exchangers
Product Overview

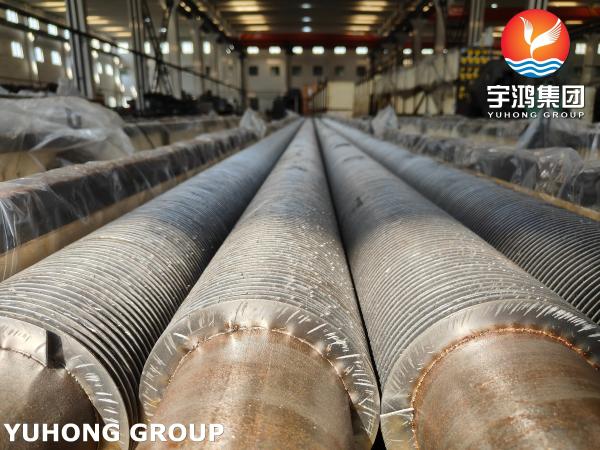

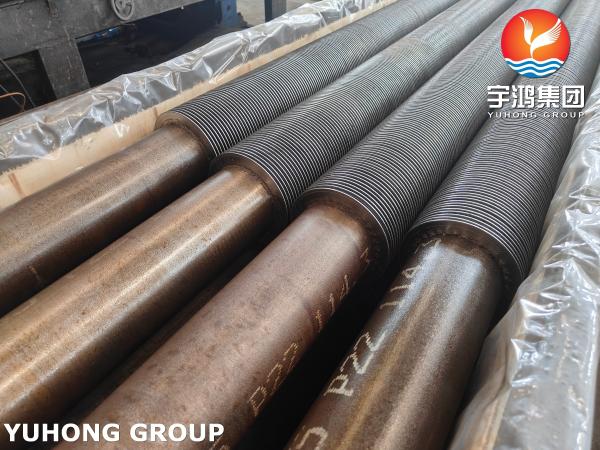

ASTM A335 P22 Helical Solid Finned Tube is a high-performance heat exchanger tube manufactured from seamless ferritic alloy steel. The helical solid fins on its exterior surface significantly increase surface area for enhanced heat transfer efficiency, making it ideal for power generation, petrochemical, and chemical processing applications.

Key Features and Benefits
  • Enhanced Heat Transfer: Helical fins increase surface area for superior thermal performance
  • Compact Design: Achieves higher heat transfer rates without increasing exchanger size
  • Durable Construction: Seamless ferritic alloy steel withstands high-temperature and high-pressure conditions
  • Corrosion Resistance: Excellent resistance to wear and corrosion in demanding environments
Material Specifications
Chemical Composition
  • Carbon (C): 0.05 - 0.15%
  • Manganese (Mn): 0.30 - 0.60%
  • Phosphorus (P): 0.025% max
  • Sulfur (S): 0.025% max
  • Silicon (Si): 0.50 - 1.00%
  • Chromium (Cr): 1.90 - 2.60%
  • Molybdenum (Mo): 0.87 - 1.13%
Mechanical Properties
  • Tensile Strength: 415 MPa (60,200 psi) minimum
  • Yield Strength: 205 MPa (29,800 psi) minimum
  • Elongation: 30% minimum
  • Hardness (HB): 163 maximum
  • Impact Strength: 35J (26 ft-lbf) minimum at -20°C (-4°F)
Industrial Applications
  • Heat Exchangers: Optimizes thermal transfer between fluids with enhanced surface area
  • Chemical Processing: Resists corrosion from aggressive fluids and gases
  • Power Generation: Used in boilers, steam generating tubes, and reheater tubes
  • Petrochemical Industry: Ideal for heat exchangers and condenser tubes
  • Automotive Systems: Improves thermal performance in exhaust systems
