Specifications
Brand Name :
YUHONG
Model Number :
High Frequency weld fin tube, Welding fin tube, Fin Tube, Finned Tube, Solid Fin tube, HFW fin tube
Certification :
ASME, PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China,Korea
MOQ :
1PC
Price :
1--10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons/month
Delivery Time :
5---75 days
Packaging Details :
Ply wooden case
Base Tube Material :
ASTM A106 Gr. B, ASME SA106 Gr.B
Fin Material :
Carbon Steel
Fin Type :
Solid Fin tube , HFW Fin tube, Spiral Fin Tube, Welded Helical Solid Finned Tubes
Welding Type :
HFW , GMAW, LASER,
Length of Fin Tube :
Max.: 34m/pc
Application :
Furnace, Fired Heater, Heater, Boiler, Radiant Tube, Coil Tube
Description
High Frequency Welding Fin Tube, ASME SA106 Gr.B Seamless Pipe With Carbon Steel Solid Fin Tube For Fired Heater, Furnace
Product Specifications
Attribute Value
Base Tube Material ASTM A106 Gr. B, ASME SA106 Gr.B
Fin Material Carbon Steel
Fin Type Solid Fin tube, HFW Fin tube, Spiral Fin Tube, Welded Helical Solid Finned Tubes
Welding Type HFW, GMAW, LASER
Length of Fin Tube Max.: 34m/pc
Application Furnace, Fired Heater, Heater, Boiler, Radiant Tube, Coil Tube
Product Description

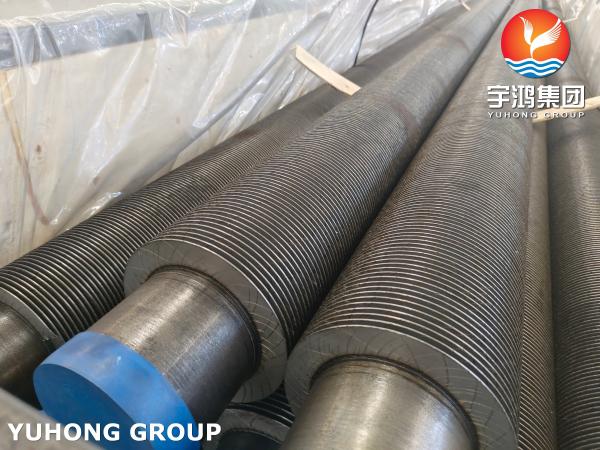

Yuhong Group's Welded Helical Solid Finned Tubes are manufactured by helically wrapping fin strip on edge around the tube circumference and continuously welding the fin strip to the tube. The fin strip is held under tension and confined laterally as it is formed around the tube, ensuring forceful contact with the tube surface.

A continuous weld is applied using Yuhong Group's unique gas metal arc welding (GMAW) process, creating the strongest fin-to-tube attachment in the industry with excellent heat transfer characteristics and low fin-side pressure drop.

ASTM A106 / ASME SA10 Gr.B is a seamless carbon steel tube specification for high pressure service, designed to endure extreme heat and pressure in applications including oil and gas refineries, power plants, and chemical facilities.

Technical Specifications
Parameter Value
Weld Process GMAW
Tube/Pipe Size 1.00″ to 12.75″ outside diameter
Fin Height 0.375″ to 1.25″
Fin Thickness 20ga (.035″) to 12ga (.105″)
Fin Pitch 1 to 7 fins per inch
Materials Any material combination that can be arc welded
Tube Length No practical limit
Available Materials

Base Pipe/Tube Material:

  • Stainless steel: ASME SA213/ASTM A213, ASME SA249/A249, ASME SA312/A312: TP304, 304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP904L
  • Duplex/Super Duplex Steel: ASME SA789/A789, ASME SA790/A790: S31803, S32205, S32750, S31500, S32304, S32900
  • Carbon Steel: ASME SA106/ASTM A106 Gr B, Gr C, ASME SA179/ASTM A179, ASME SA192/ASTM A192, ASTM A214, ASTM A210 Gr.A1, Gr.C
  • Alloy Steel: ASME SA213/ASTM A213 T1, T11, T12, T22, T23, T5, T9, T91, T92; ASME SA335/ASTM A335 P1, P11, P12, P22, P23, P5, P9, P91, P92, 16Mo3, 15Mo3, 13CrMo-4, 12Cr1MoVG
  • Nickel Alloy Steel Grade: Hastelloy, Monel, Inconel, Incoloy, Pure Nickel, NS Alloy
  • Copper Alloy Steel: ASTM B111 (70400, C70600, C71500, C71640, C68700, C44300)

Fin Material: Alloy Steel, Stainless Steel, Carbon Steel

Company Advantages
  • 20,000 square meters workshop with 4 finning machines for high frequency welding Solid fin tube
  • Daily extrusion capacity up to 700m
  • Convenient transportation with Shanghai Port less than 2 hours away
  • High rigidity allows use under extreme temperature and pressure conditions
Applications
  • Boiler
  • Furnace
  • Fired Heater
  • Radiator
  • Refrigeration
  • Power plant-Steam Superheater
