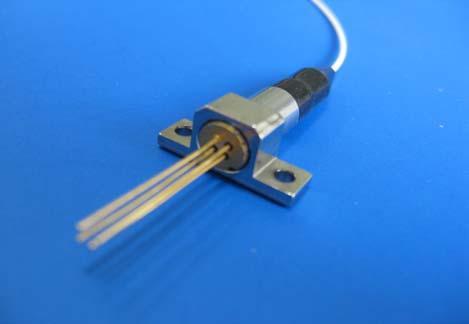

InGaAs PIN MODULE Optical Sub Assembly High Sensitive
InGaAs PIN MODULE Optical Sub Assembly High Sensitive
Specifications
Brand Name :
Optowix
Model Number :
SRJ-100-0001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
InGaAs PIN MODULE
Description
InGaAs PIN MODULE
Features
  • High Responsivity
  • Low Dark current
  • High Reliability
  • High Linearity
  • 0.5m FC/PC SMF Pigtail Package
Applications
  • Optical Communication System
  • Test Instruments
  • CATV

Ordering information

Part Number Product Description
SRJ-100-0001 InGaAs PIN MODULE , 0ºC ~ 70ºC,

Absolute Maximum Ratings

Parameter Symbol Value Unit
Laser Reverse Voltage VR 30 V
Operating Temperature TOP -40 ～ +65 ºC
Storage Temperature Tstg -40 ～ +85 ºC

Specification

Parameter Symbol Test Condition Min Typ Max Unit
Responsivity@1310nm R VR=-5V 0.8 0.85 - A/W
Dark Current Id VR=-5V - - 1 nA
Detection Range λ - 1100 - 1650 nm
Saturation Power P VR=-5V 1.5 - - mW
Active Area(Dia.) ф - - 75 - um
Rise/Fall Time Tr/Tf VR=-5V - - 0.5 ns
Capacitance C VR=-5V - - 0.75 pf

Mechanical Dimensions

InGaAs PIN MODULE Optical Sub Assembly High Sensitive

Pin Assignment

InGaAs PIN MODULE Optical Sub Assembly High Sensitive
