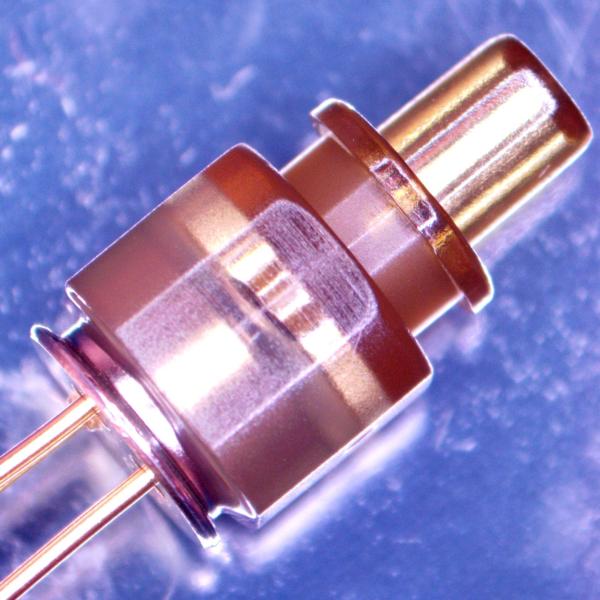

10G Transmitter Optical SubAssembly OSA With LC-UPC Receptacle
10G Transmitter Optical SubAssembly OSA With LC-UPC Receptacle
Specifications
Brand Name :
Optowix
Model Number :
STA-219-1001
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
100Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
STA-219-1001
Product Name :
10G Transmitter OSA with LC-UPC Receptacle TOSA Optical Sub-Assembly
SpeedRate :
10G
Interface :
LC
Description
10G Transmitter Optical SubAssembly OSA With LC-UPC Receptacle
Features
  • 850nm VCSEL laser diode as 10Gb/s transmitter
  • Multimode G652 fiber with LC/UPC Receptacle
  • High performance and high reliability
  • RoHS compliant and lead-free
  • Operation temperature:0℃ to +70℃
  • Without FPC
Applications
  • 10G BASE-SR
  • Optical link

Absolute Maximum Ratings

Parameter Symbol Min Max Unit Note
Storage Temperature Tstg -40 +85 ℃
Operating Case Temperature Tc 0 +70 ℃
Reverse Voltage (VCSEL) VFL - 5 V
Forward Current (VCSEL) If - 12 mA
Reverse Voltage (MPD) VRD - 25 V
Forward Current (MPD) IFD - 2 mA
Lead Soldering Temperature (10 sec) TLS - +260 ℃

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Threshold Current Ith - 0.7 - mA Tc=25℃
Output Power Po 0.4 0.5 0.6 mW Iop=6mA
Operating Voltage Vf - 1.9 - V Iop=6mA
Peak Wavelength λp 840 850 860 nm Iop=6mA
Spectral Width(RMS) λ - - 0.35 nm Iop=6mA
Monitor Current Im 50 400 uA P=0.6uW
Dark current(PD) Id - - 20 nA Vr=2V
Tracking Error (Note 1) TE -1.5 - 1.5 dB -40~ +85℃
