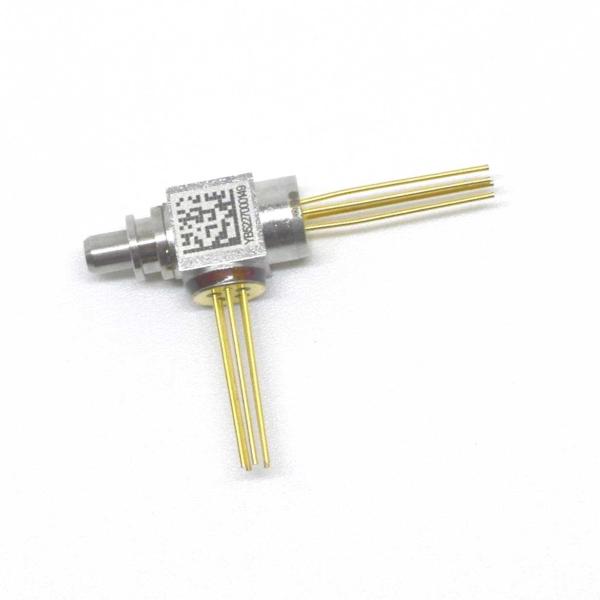

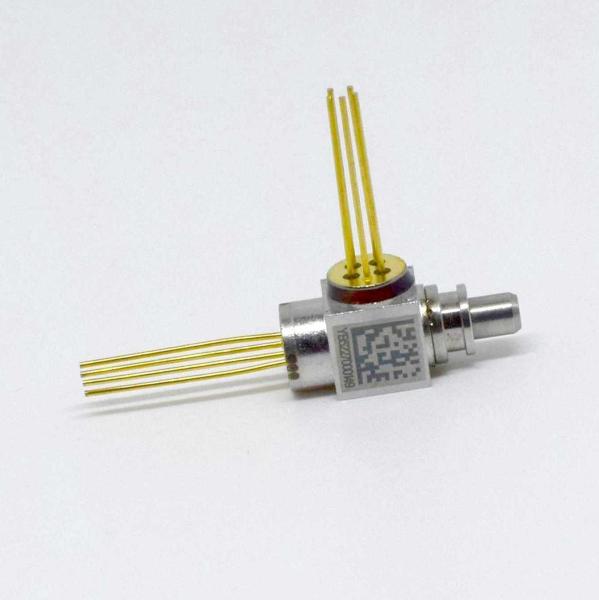

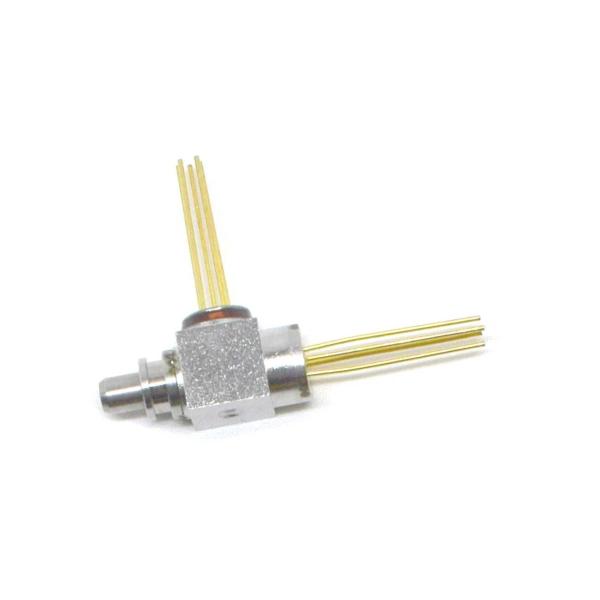

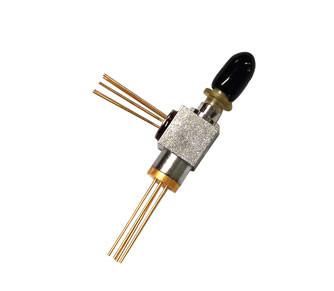

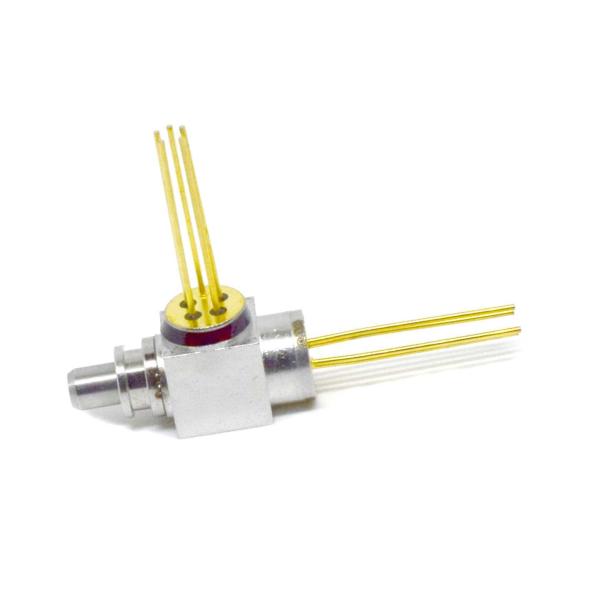

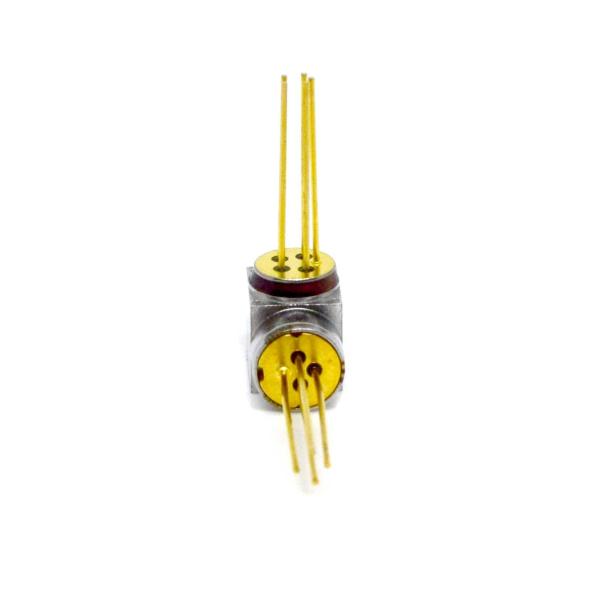

10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly High Sensitive
Specifications
Brand Name :
Optowix
Model Number :
SBA-119-B101
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
10G LC BOSA T1270R1330 C temp
SpeedRate :
10G
TX :
10G 1270nm DFB laser
RX :
10G PIN Receiver
Warranty :
12 Months
Interface :
LC BIDI
Description
10G BIDI LC BOSA T1270R1330 Optical Sub Assembly
Features
  • DFB uncooled laser diode with isolator
  • High sensitive 10G PIN(APD)/TIA
  • LC receptacle connector
  • RoHS compliant and lead-free
  • Operation case temperature : 0℃ ~ 70℃
Applications
  • Switch to switch interface
  • Gigabit Ethernet Point-to-Point bi-directional transceiver
  • SDH/SONET
Absolute Maximum Ratings
Parameter Symbol Min Max Unit Note
Forward Voltage (LD) V FL 2 V
Forward Current (LD) I FL 120 mA
Reverse Voltage (MPD) V RM 20 V
Forward Current (MPD) I FM 10 mA
Storage Temperature Tstg -40 +85 ℃
Operating Case Temperature Tc 0 +70 ℃
Lead Soldering Temperature (10 sec) TLS - +260 ℃

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Transmitter
Parameter Symbol Min. Typ. Max. Unit Test Condition
Threshold Current Ith - 8 12 mA Tc=25℃
- 15 30 mA Tc=70℃
Forward Voltage Vf - 1.2 1.5 V CW,Iop=33mA
Fiber Output Power Pf 0.4 0.6 0.8 mW CW,Iop=33mA
Central Wavelength λc 1260 1270 1280 nm CW,Iop=33mA
Spectral Width (RMS) Δλ - - 1 nm CW,Iop=33mA
Tracking Error TE -1.5 - 1.5 dBm Tc=0~70℃
Monitor Current Im 100 - 1000 uA CW, Iop=33mA , Vr=5V
Monitor Dark Current Id - - 100 nA

Vr=5V

Receiver
Parameter Symbol Min. Typ. Max. Unit Test Condition
Supply Voltage Vcc 3 3.3 3.5 V
Supply Current Icc - - 45 mA
Receiver wavelength λ 1320 1330 1340 nm
RSSI Current IRSSI 6.8 7.5 - uA λ=1310nm,P=10uW
Sensitivity Sen. - - -16 dBm 10Gb/s PRBS2^31-1,NRZ,ER=5,BER@10E-12
Overload Pov 0.5 - - dBm
Optical Return Loss ORL - - -27 dB
