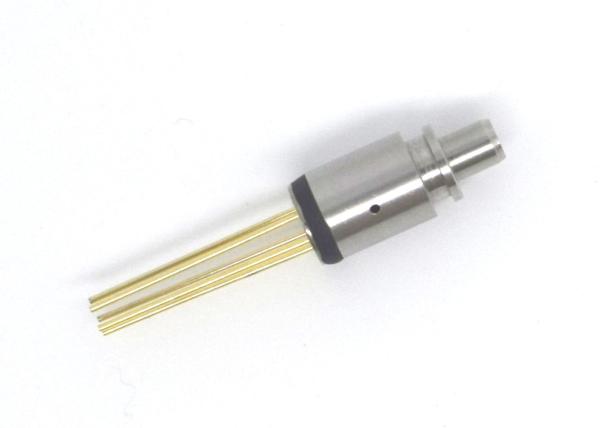

10G 1310nm LC APD ROSA Optical SubAssembly For High Speed Transmission
10G 1310nm LC APD ROSA Optical SubAssembly For High Speed Transmission
10G 1310nm LC APD ROSA Optical SubAssembly For High Speed Transmission
10G 1310nm LC APD ROSA Optical SubAssembly For High Speed Transmission
Specifications
Brand Name :
Optowix
Model Number :
SRA-319-1102
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
100Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
SRA-319-1102
Product Name :
10G 1310nm LC APD ROSA Optical Sub-Assembly
SpeedRate :
10G
Interface :
LC
Description
10G 1310nm LC APD ROSA Optical Sub-Assembly
Features
  • High sensitive 10G APD-TIA
  • -40~85℃ Operation temperature range
  • LC/UPC receptacle
Description
  • This single-fiber optical subassembly is designed for High-speed transmission applications. It is integrated with one 10Gb/s APD-TIA TO .
Absolute Maximum Ratings
Parameter SymbolMinMaxUnitNote
TIA Supply VoltageVcc0.54V　
Operating Case TemperatureTc-4085℃　
Storage Temperature RangeTstg-4085℃　
Lead Soldering temperature/timeTsld/t 260/10℃/s　


Recommended Operating Conditions
Parameter Symbol Unit Min Typ Max
Operating Case TemperatureTc℃-40-85
Relative HumidityRH%--85

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Receiver
Parameter Unit Min Type Max Condition
Nominal bit rateGb/s　10　　
Receiver wavelengthnm126013101620CW
TIA supply currentmA253341Vcc=3.3V
TIA Supply VoltageV2.973.33.63
APD break down voltage(Vbr)V30 40Id=10μA
Bandwidth( -3dB)Ghz 7.5 Vpd=Vbr-3V, RL=50 Ω,
Pin=-20dBm
Dark currentnA 200Vpd=Vbr-3V
ResponsivityA/W 0.8 @1310 M=1 P=-30dBm
SensitivitydBm -30PRB S231-1 BER=10-3
ER=6.4dB Vpd=Vbr-3V
OverloaddBm-6 PRBS 231-1 BER=10-3
ER=6.4dB Vpd=Vbr-3V
