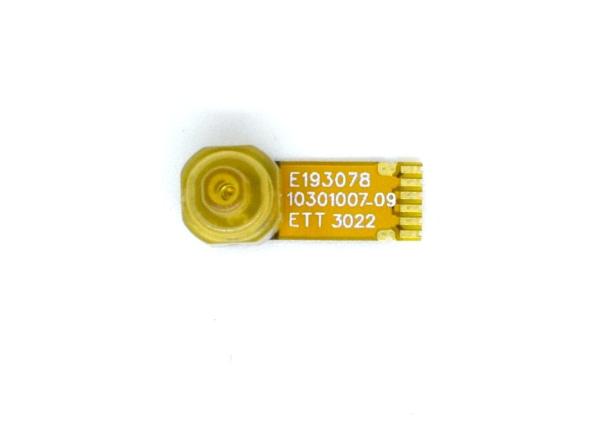

Optowix 25G Transmitter Optical Sub Assemblies OSA With LC UPC Receptacle
Optowix 25G Transmitter Optical Sub Assemblies OSA With LC UPC Receptacle
Optowix 25G Transmitter Optical Sub Assemblies OSA With LC UPC Receptacle
Optowix 25G Transmitter Optical Sub Assemblies OSA With LC UPC Receptacle
Specifications
Brand Name :
Optowix
Model Number :
STA-122-1001F
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
100Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
STA-122-1001F
Product Name :
25G Transmitter OSA with LC-UPC Receptacle Optical Sub-Assembly
SpeedRate :
25
Interface :
LC
Description
25G Transmitter OSA With LC-UPC Receptacle Optical Sub-Assembly
Features
  • Data rates up to 25Gbps
  • Integrated monitor photodiode
  • Package with FPC
Applications
  • High speed Data Communication

Absolute Maximum Ratings

Parameter Symbol Min Max Unit Note
Storage Temperature Tstg -40 +95 ℃
Operating Case Temperature Tc 0 +70 ℃
Forward Voltage (LD) VFL - 2 V
Forward Current(LD) If - 120 mA
Reverse Voltage (MPD) VRD - 10 V
Forward Current (MPD) IFD - 5 mA
Lead Soldering Temperature (10 sec) TLS - +260 ℃

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Threshold Current Ith - 0.7 - mA Tc=25℃,Iop=6.0mA
Output Power Po 0.5 mW Iop=6mA
Operating Voltage Vf - 2.0 - V Iop=6mA
Peak Wavelength λp 840 850 860 nm Iop=6mA
Spectral Width λ - - 0.6 nm Iop=6mA
Monitor Current Im 50 400 uA P=0.6uW
Dark current(PD) Id - - 50 nA Vr=2V
Tracking Error (Note 1) TE -1.5 - 1.5 dB APC-40~ +85℃
