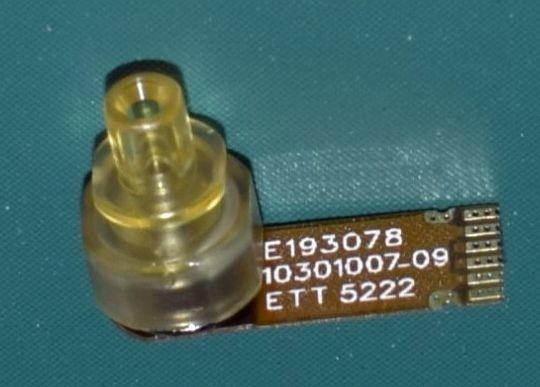

25G Receiver Optical Subassembly OSA With LC-UPC Receptacle
25G Receiver Optical Subassembly OSA With LC-UPC Receptacle
25G Receiver Optical Subassembly OSA With LC-UPC Receptacle
25G Receiver Optical Subassembly OSA With LC-UPC Receptacle
Specifications
Brand Name :
Optowix
Model Number :
SRA-322-1001F
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
100Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
SRA-322-1001F
Product Name :
25G Receiver OSA with LC-UPC Receptacle Optical Sub-Assembly
SpeedRate :
25
Interface :
LC
Description
25G Receiver OSA With LC-UPC Receptacle Optical Sub-Assembly
Features
  • Single +3.3V power supply
  • Data rates up to 25Gbps
  • RSSI current output
  • With FPC
Applications
  • Optical link

Absolute Maximum Ratings

Parameter Symbol Min Max Unit Note
Storage Temperature Tstg -40 +85 ℃
Operating Case Temperature Tc -40 +85 ℃
TIA Supply Voltage Vcc - 5 V
Lead Soldering Temperature (Maximum 10 sec) TLS - +260 ℃

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Supply Voltage Vcc 3.1 3.3 3.5 mA
Supply Current Icc - 35 mW
Optical Wavelength λ 840 - 860 nm
Sensitivity Sen - - -9 dBm

850nm, 10Gbps,

PRBS231 -1,

BER=10-10,
