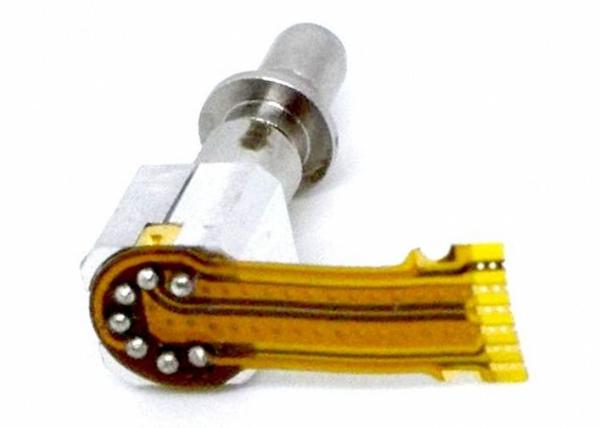

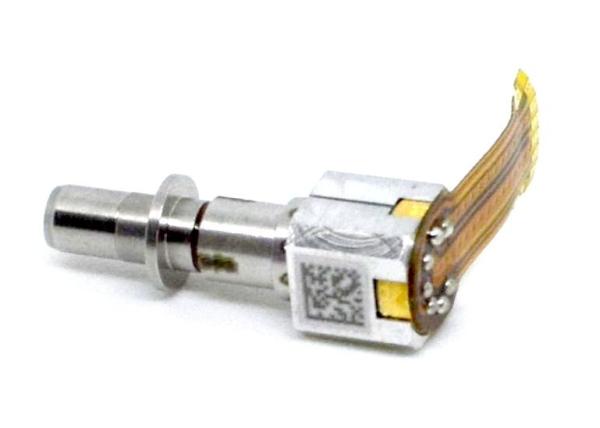

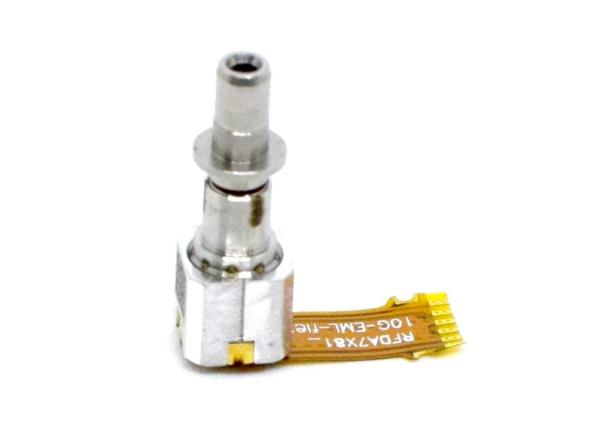

10G EML CWDM LC TOSA Optical Subassembly High Bandwidth
10G EML CWDM LC TOSA Optical Subassembly High Bandwidth
10G EML CWDM LC TOSA Optical Subassembly High Bandwidth
10G EML CWDM LC TOSA Optical Subassembly High Bandwidth
10G EML CWDM LC TOSA Optical Subassembly High Bandwidth
10G EML CWDM LC TOSA Optical Subassembly High Bandwidth
Specifications
Brand Name :
Optowix
Model Number :
STA-319-XX01-CXX
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
100Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
Optical Subassembly
SpeedRate :
10G
Interface :
LC
Optowix PN :
STA-319-XX01-CXX
Description
10G EML CWDM LC TOSA Optical Sub-Assembly
Features
  • Supports performance up to 10.7 Gb/s bit rate, I-temp operating temperature range up to 80km
  • Low Threshold current
  • 10 Gigabit Etherne
  • High Bandwidth
  • LC Receptacle
Applications
  • Telecommunication
  • Data communication
  • ZR1 SONET/ SDH OC-192/ STM-64
  • Compatible SFP+/XFP ER/ZR Module
Ordering information
Part Numb ER/ZR Description
TDM(1530~1565)-(ER:40km)/(ZR:80km)
STA-319-1201-ER/ZR 10G EML 1550nm LC TOSA ,-40℃ ~85℃
CWDM(1470~1610)-(ER:40km)/(ZR:80km)
STA-319-4701-ER/ZR 10G EML CWDM 1470nm LC TOSA ,-40℃ ~85℃
STA-319-4901-ER/ZR 10G EML CWDM 1490nm LC TOSA ,-40℃ ~85℃
STA-319-5101-ER/ZR 10G EML CWDM 1510nm LC TOSA ,-40℃ ~85℃
STA-319-5301-ER/ZR 10G EML CWDM 1530nm LC TOSA ,-40℃ ~85℃
STA-319-5501-ER/ZR 10G EML CWDM 1550nm LC TOSA ,-40℃ ~85℃
STA-319-5701-ER/ZR 10G EML CWDM 1570nm LC TOSA ,-40℃ ~85℃
STA-319-5901-ER/ZR 10G EML CWDM 1590nm LC TOSA ,-40℃ ~85℃
STA-319-6101-ER/ZR 10G EML CWDM 1610nm LC TOSA ,-40℃ ~85℃
DWDM(1567.13~1524.89)-(ER:40km)/(ZR:80km)
STA-319-D13-ER/ZR 10G EML DWDM 1567.13nm LC TOSA ,-40℃ ~85℃
STA-319-D13-ER/ZR 10G EML DWDM 1566.31nm LC TOSA ,-40℃ ~85℃
STA-319-D15-ER/ZR 10G EML DWDM 1565.50nm LC TOSA ,-40℃ ~85℃
STA-319-D16-ER/ZR 10G EML DWDM 1564.68nm LC TOSA ,-40℃ ~85℃
STA-319-D17-ER/ZR 10G EML DWDM 1563.86nm LC TOSA ,-40℃ ~85℃
STA-319-D18-ER/ZR 10G EML DWDM 1563.05nm LC TOSA ,-40℃ ~85℃
STA-319-D19-ER/ZR 10G EML DWDM 1562.23nm LC TOSA ,-40℃ ~85℃
STA-319-D20-ER/ZR 10G EML DWDM 1561.42nm LC TOSA ,-40℃ ~85℃
STA-319-D21-ER/ZR 10G EML DWDM 1560.61nm LC TOSA ,-40℃ ~85℃
STA-319-D22-ER/ZR 10G EML DWDM 1559.79nm LC TOSA ,-40℃ ~85℃
STA-319-D23-ER/ZR 10G EML DWDM 1558.98nm LC TOSA ,-40℃ ~85℃
STA-319-D24-ER/ZR 10G EML DWDM 1558.17nm LC TOSA ,-40℃ ~85℃
STA-319-D25-ER/ZR 10G EML DWDM 1557.36nm LC TOSA ,-40℃ ~85℃
STA-319-D26-ER/ZR 10G EML DWDM 1556.55nm LC TOSA ,-40℃ ~85℃
STA-319-D27-ER/ZR 10G EML DWDM 1555.75nm LC TOSA ,-40℃ ~85℃
STA-319-D28-ER/ZR 10G EML DWDM 1554.94nm LC TOSA ,-40℃ ~85℃
STA-319-D29-ER/ZR 10G EML DWDM 1554.13nm LC TOSA ,-40℃ ~85℃
STA-319-D30-ER/ZR 10G EML DWDM 1553.33nm LC TOSA ,-40℃ ~85℃
STA-319-D31-ER/ZR 10G EML DWDM 1552.52nm LC TOSA ,-40℃ ~85℃
STA-319-D32-ER/ZR 10G EML DWDM 1551.72nm LC TOSA ,-40℃ ~85℃
STA-319-D33-ER/ZR 10G EML DWDM 1550.92nm LC TOSA ,-40℃ ~85℃
STA-319-D34-ER/ZR 10G EML DWDM 1550.12nm LC TOSA ,-40℃ ~85℃
STA-319-D35-ER/ZR 10G EML DWDM 1549.32nm LC TOSA ,-40℃ ~85℃
STA-319-D36-ER/ZR 10G EML DWDM 1548.51nm LC TOSA ,-40℃ ~85℃
STA-319-D37-ER/ZR 10G EML DWDM 1547.7nm LC TOSA ,-40℃ ~85℃
STA-319-D38-ER/ZR 10G EML DWDM 1546.92nm LC TOSA ,-40℃ ~85℃
STA-319-D39-ER/ZR 10G EML DWDM 1546.12nm LC TOSA ,-40℃ ~85℃
STA-319-D40-ER/ZR 10G EML DWDM 1545.32nm LC TOSA ,-40℃ ~85℃
STA-319-D41-ER/ZR 10G EML DWDM 1544.53nm LC TOSA ,-40℃ ~85℃
STA-319-D42-ER/ZR 10G EML DWDM 1543.73 nm LC TOSA ,-40℃ ~85℃
STA-319-D43-ER/ZR 10G EML DWDM 1542.94nm LC TOSA ,-40℃ ~85℃
STA-319-D44-ER/ZR 10G EML DWDM 1542.14nm LC TOSA ,-40℃ ~85℃
STA-319-D45-ER/ZR 10G EML DWDM 1541.35nm LC TOSA ,-40℃ ~85℃
STA-319-D46-ER/ZR 10G EML DWDM 1540.56nm LC TOSA ,-40℃ ~85℃
STA-319-D47-ER/ZR 10G EML DWDM 1539.77nm LC TOSA ,-40℃ ~85℃
STA-319-D48-ER/ZR 10G EML DWDM 1538.98 nm LC TOSA ,-40℃ ~85℃
STA-319-D49-ER/ZR 10G EML DWDM 1538.19nm LC TOSA ,-40℃ ~85℃
STA-319-D50-ER/ZR 10G EML DWDM 1537.4nm LC TOSA ,-40℃ ~85℃
STA-319-D51-ER/ZR 10G EML DWDM 1536.61nm LC TOSA ,-40℃ ~85℃
STA-319-D52-ER/ZR 10G EML DWDM 1535.82 nm LC TOSA ,-40℃ ~85℃
STA-319-D53-ER/ZR 10G EML DWDM 1535.04 nm LC TOSA ,-40℃ ~85℃
STA-319-D54-ER/ZR 10G EML DWDM 1534.25 nm LC TOSA ,-40℃ ~85℃
STA-319-D55-ER/ZR 10G EML DWDM 1533.47nm LC TOSA ,-40℃ ~85℃
STA-319-D56-ER/ZR 10G EML DWDM 1532.68 nm LC TOSA ,-40℃ ~85℃
STA-319-D57-ER/ZR 10G EML DWDM 1531.9nm LC TOSA ,-40℃ ~85℃
STA-319-D58-ER/ZR 10G EML DWDM 1531.12 nm LC TOSA ,-40℃ ~85℃
STA-319-D59-ER/ZR 10G EML DWDM 1530.33nm LC TOSA ,-40℃ ~85℃
STA-319-D60-ER/ZR 10G EML DWDM 1529.55 nm LC TOSA ,-40℃ ~85℃
STA-319-D61-ER/ZR 10G EML DWDM 1528.77nm LC TOSA ,-40℃ ~85℃
STA-319-D62-ER/ZR 10G EML DWDM 1527.99 nm LC TOSA ,-40℃ ~85℃
STA-319-D63-ER/ZR 10G EML DWDM 1527.22 nm LC TOSA ,-40℃ ~85℃
STA-319-D64-ER/ZR 10G EML DWDM 1526.44nm LC TOSA ,-40℃ ~85℃
STA-319-D65-ER/ZR 10G EML DWDM 1525.66nm LC TOSA ,-40℃ ~85℃
STA-319-D66-ER/ZR 10G EML DWDM 1524.89nm LC TOSA ,-40℃ ~85℃
Absolute Maximum Ratings
Parameter Symbol Min Max Units Comments
Laser Diode Reverse Voltage CW -- 2 V -
Laser Diode Forward Current CW -- 120 mA -
Optical Output Power CW -- 20 mW -
EA Modulator Reverse Bias -4 -- 1 V -
Storage Temperature Range -- -40 85 °C -
Forward current for PD CW -- 2 mA -
Reverse voltage for PD CW -- 10 V -
Operation Temperature( case Temp) -- -40 85 °C 　
TEC Voltage -- -2.5 2.5 V 　
TEC Current -- -1　 1 A 　
Flex pad soldering temperature (*) --　 350 °C 　
Flex pad soldering duration -- --　 5 s 　

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Parameter Symbol Min. Typ. Max. Unit Condition
Laser Operating Temperature Top - 50 55 ℃ Tcase=-40 to +85℃
Threshold Current( BOL) ITH -- 16 28 mA Top=50℃ ,VEA=0V
Laser Forward Voltage VF -- 1.4 2 V IF=Iop @ Top
Operating Current( BOL) Iop 60 75 100 mA --
Threshold Power PTH - 60 80 uW IF=Ith Top=50℃ , VEA=0V
Relative Intensity Noise RIN - -140 -135 dB/Hz 0-10GHz

Fiber Output Power(average)

　

 PAVG -1 1 2 dBm Iop,Vea,Top,Vpp(40km)
0 - 4 dBm Iop,Vea,Top,Vpp(80Km)
Iop,Vea,Top,Vpp
(70Km@1590/1610)
EA Center-point Bias Voltage VEA -2 -0.8 0 V Iop=75mA,Top=50℃
P-P Modulation Voltage
( EA section)		 Vpp - 1.2 2.4 V -
Monitor Current Im 50 500 1200 uA Iop,Vea,Top,Vpp
Monitor Dark current Id - 5 100 nA Iop=0mA,Vbias=-5.0V
Center Wavelength(TDM) ( BOL) λc 1530 - 1565 nm CW,Iop=75mA, Top=50℃
Center Wavelength( CWDM) ( BOL) λc λc±6.5nm　 CW,Iop=75mA,
Top=50℃ ,
λc:1470nm/1490nm
/1510nm/1530nm/1550nm
/1570nm/1590nm/1610nm
Center Wavelength(DWDM) ( BOL) λc ITU 100GHz channel nm CW,Iop=75mA,
Top=45~55℃
Side-mode Suppression Ratio SMSR 35 40 - dB CW,Iop=75mA,
Top=50℃ ,
Vea=Vinf+0.15V
Line Width (3 dBm FWHM) Δλ3dB -- 0.02 0.06 nm CW
Line Width (20dBm FWHM) Δλ20dB -- 0.15 0.3 nm CW
Rise/Fall time Tr, Tf - 32 40 ps 20-80%,filtered eye
Extinction Ration ER 8.2 9 - dB Iop,Vea,Top,Vpp(40km)
9 10 - Iop,Vea,Top, Vpp(70/80Km)
Mask Margin MM 15 20 - % Vea, Vxing, Vpp 10.7Gb/s,
PRBS31

Dispersion Penalty at 10.7Gb/s

　

DP

　

 - - 2 dB Iop,Vea,Top,Vpp(40km)
- - 3.5 Iop,Vea,Top, Vpp(70/80Km)
RF Characteristics
Input Impedance ZIN 45 50 55 Ω -
EA Modulator
EA Modulator Current IEAM 6 26 40 mA IF=77mA,
VEA=Vinf+0.15V,
Top=50℃
Dark Current Id - 4 10 uA IF=0mA,VEA=-0.5V
Tracking Error TE -1.5 0 1.5 dB IF=75mA,
VEA=Vinf+0.15V,
TLD=50C,
Tcase=-40C~85℃
Thermistor
Resistance (standard 10KΩ@25℃) RTHERM 3.54 3.6 3.68 KΩ Top=50℃
Thermistor B-constant B 3800 3900 4000 K -
Thermistor current ITC 10 28 100 uA -
Thermoelectric cooler (TEC)
TEC
TEC Current Itec - 0.35 1 A Tcase=-40~85℃ ,
Top, Iop, Vpp
TEC Heating Current - - 0.3 1 -40~50℃
TEC Cooling Current - - 0.2 1 50~85℃
TEC Voltage Vtec - 1 2.5 V -
TEC Power Ptec - 0.245 0.45 W -
TEC capacity Tc -100 10 45 ℃ -
Optical isolation
Optical isolation ISO 30 35 - dB -
Optical return loss tolerance - - - 12 dB -
Package
