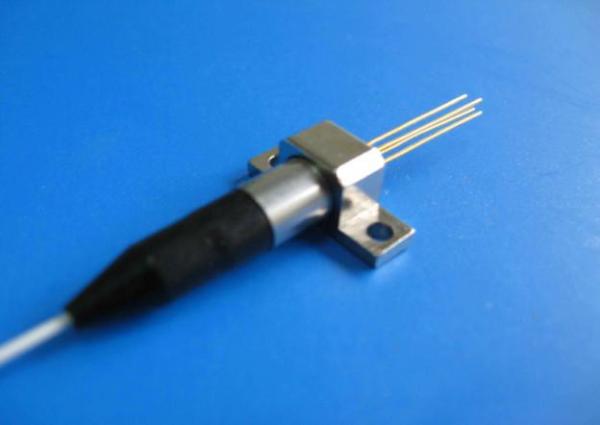

1310nm FP Coaxial LD Module Optical Sub Assembly
1310nm FP Coaxial LD Module Optical Sub Assembly
Specifications
Brand Name :
Optowix
Model Number :
STG-100-1101
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
1310nm FP Coaxial LD Module
Description
1310nm FP Coaxial LD Module
Features
  • MQW-FP LD
  • Very low threshold
  • High reliability
  • SMF coaxial-pigtailed package
Applications

  • Optical communication system

  • Optical Repeater

  • Test instruments

Ordering information

Part NumberProduct Description
STG-100-11011310nm FP Coaxial LD Module , 0ºC ~ 70ºC,

Absolute Maximum Ratings

ParameterSymbolValueUnit
Forward Current (LD)IF(LD)100mA
Reverse Voltage (LD)VR(LD)2V
Forward Current (PD)IF(PD)2mA
Reverse Voltage (PD)VR(PD)20V
Operating TemperatureTOP-20 ～ +65ºC
Storage TemperatureTST-40 ～ +85ºC
Lead soldering temperature/duration 240/10ºC/S


Specification

ParameterSymbolTest ConditionMinTypMaxUnit
Rating powerPoutIop=Ith+200.5-1.0mW
Centre WavelengthλCW128013101340nm
Spectral WidthΔλCW--5nm
Threshold CurrentIthCW--15mA
Operating CurrentIopCW-Ith+20-mA
Rise and Fall timesTr/TfCW-0.20.7ns
Monitor CrrentImCW50--uA
Monitor Dark CurrentIdCW--10nA


Mechanical Dimensions

1310nm FP Coaxial LD Module Optical Sub Assembly

Pin Assignment

1310nm FP Coaxial LD Module Optical Sub Assembly
