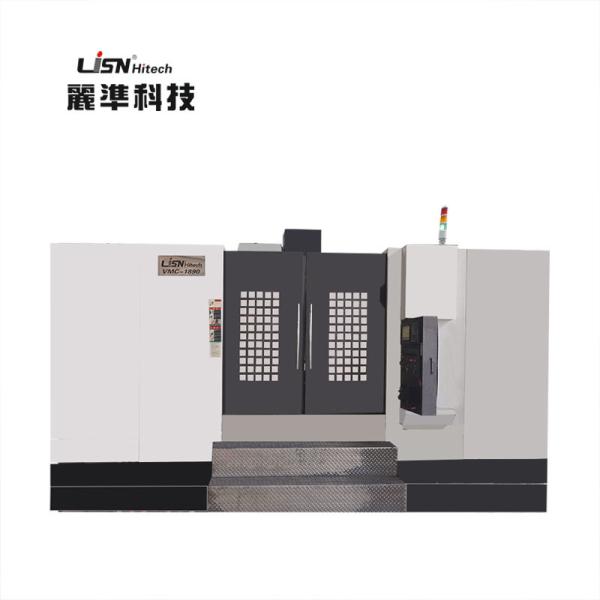

Stable 18.5KW 4 Axis VMC , VMC 1890 4 Axis CNC Vertical Machining Center
Stable 18.5KW 4 Axis VMC , VMC 1890 4 Axis CNC Vertical Machining Center
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-1890
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
30-45 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
4 Axis CNC Vertical Machining Center VMC-1890
Condition :
New
Warranty :
1 Year
Type :
Vertical
Axis :
4
Spindle Speed :
6000/8000rpm
Description

PRODUCT DESCRIPTION

4 Axis High Precision VMC-1890 CNC Vertical Machining Center 6000/8000RPM

The 4 Axis version VMC-1890 CNC Vertical Machining Center is a high precision and high rigidity machine. The table size of the machine is very large, up to 900*2000, is conducive to the processing of some large parts. All parts of the fuselage are imported. The fuselage structure has very high strength and excellent stability. The spindle nose casting with excellent rigidity can absorb vibration without affecting the surface accuracy of the machined workpiece. The integrated bearing seat design also has a great increase in rigidity, no deformation problem. The base of the machine adopts oil-water separation design, which is not only conducive to environmental protection, but also can prolong the service life of the cutting fluid.

Main Technical Parameters

ITEM MODELS VMC1890
WORKTABLE (WIDTH*LENGTH) mm 900*2000
DISTANCE BETWEEN T SLOTS mm 5-18*100
MAX LOAD BEARING OF WORKTABLE kg 1800
X/Y/Z AXIS TRAVEL mm 1800/900/680
4-AXIS /
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 160-840
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 6000 / 8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT BELT/DIRECT
SPINDLE MOTOR POWER kW 18.5
X/Y/Z RAPID FEED SPEED m/min 18*18*18
MAX CUTTING FEED SPEED mm/min 1-10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 240
MAX.TOOLS ALLOWABLE WEIGHT kg 15
MAX.TOOLS ALLOWABLE LENGTH mm 305
X/Y/Z POSITION ACCURACY mm
X/Y/Z RE-POSITION ACCURACY mm
MACHINE DIMENSION mm 4535*3050*3100

MACHINE WEIGHT		 kg 15800

Standard Configuration for VMC Series

1. Full Cover shield /

2. Self-lubrication system /

3. Working lights /

4. Warning lights /

5. Working condition warning lights /

6. Self-powered electrical shutoff system /

7. Clean air gun/ Water Tank / Transformer /

8. Spindle air curtain and dust control system /

9. 10000 RPM spindle /

10.Worktable cleaning water gun

Optional Configuration for VMC Series

1. 24 disc manipulator tool magazine /

2. Crawler chips remover /

3. NC rotary table (4 Axis) /

4. CTS /

5. Tool detection system /

6,. AJO /

7. 12000 & 15000 RPM Direct connection spindle /

8. Oil mist purifier
