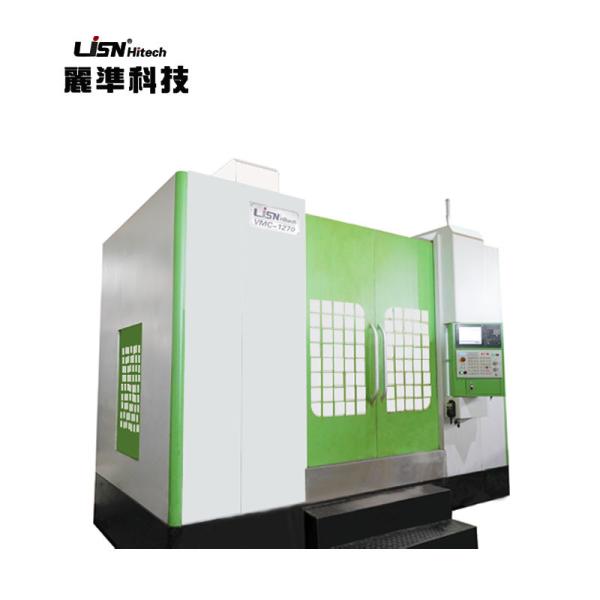

10000r/Min VMC1275 4 Axis CNC Machining Center Antishock Multipurpose
10000r/Min VMC1275 4 Axis CNC Machining Center Antishock Multipurpose
Specifications
Brand Name :
LiZhun
Model Number :
VMC1275
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/years
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Type :
Vertical
Condition :
New
Spindle speed :
10000rpm
Machine type :
CNC Vertical Machining Center
Spindle taper :
BT50
Product type :
CNC 5Axis Machine
Processing :
Maching Center
Warranty :
1 Year
Description

High Speed And High Accuracy CNC 4 Axis Vertical Machining Center VMC1275

1.Product overview

Applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs. All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional to customer's requirements. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. Thus the machine can do rapid displacement and obtain circular accuracy. Equipped with air tank, the water can be drained out manually. Spindle is connected directly, and the highest speed is 12000RPM, which are a good choice for machining of high accuracy and efficiency.



2.Main technical parameters

ITEM MODELS→ VMC1270 VMC1275 VMC1375 VMC1475 VMC1580

WORKTABLE (WIDTH*LENGTH) 		mm 600*1360 600*1360 700*1400 700*1500 800*1700

DISTANCE BETWEEN T SLOTS		 mm 5-18*152.5 5-18*152.5 5-18*152.5 5-18*152.5 5-22*135

MAX LOAD BEARING OF WORKTABLE		 kg 900 900 900 1000 1500

X/Y/Z AXIS TRAVEL		 mm 1200/700/700 1200/750/700 1300/750/650 1400/750/650 1500/800/700
N DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 150-750 150-750 150-800 170-780 170-780

SPINDLE HOLE TAPER		 BT50 BT50 TB50 TB50 TB50

SPINDLE SPEED RANGE		 r/min 10000 10000 10000 10000 10000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT		 10000
BELT/DIRECT
BELT/DIRECT		 皮带式/直联式 皮带式/直联式

SPINDLE MOTOR POWER		 kW 15 15 15 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 24*24*18 16/16/16 24*24*18 18*18*18

MAX CUTTING FEED SPEED		 mm/min 10000 1-10000 1-5000 1-10000 1-10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24 24 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240 240 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15 15 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305 305 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008 0.008 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005 0.005 0.005 0.005

MACHINE DIMENSION		 mm 3530*2600*2640 3420*2370*2540 4535*3050*3100 4535*3050*3100 4110*2740*2900

MACHINE WEIGHT		 kg 9000 9000 10000 11800 12800


3.Product details

10000r/Min VMC1275 4 Axis CNC Machining Center Antishock Multipurpose

FAQ

1. Is it all right to make customer's own brand name?

A: yes . we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes . if you want a different control system design or higher column , we are available .

4 . What is your terms of delivery?

A: FOB shenzhen .

5. What's your payment term?

A: T/T OR L/C at sight .
