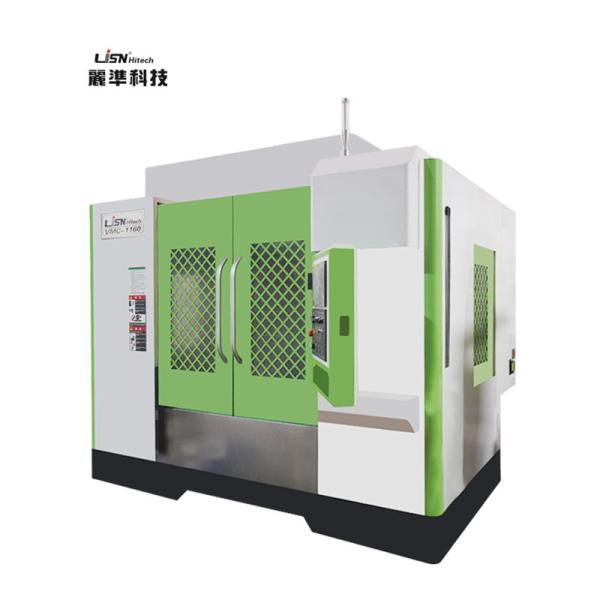

Durable Stable VMC Vertical Machining Center Multifunctional VMC1270
Durable Stable VMC Vertical Machining Center Multifunctional VMC1270
Durable Stable VMC Vertical Machining Center Multifunctional VMC1270
Durable Stable VMC Vertical Machining Center Multifunctional VMC1270
Specifications
Brand Name :
LiZhun
Model Number :
VMC1270
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Warranty :
1 Year
Condition :
New
Type :
Vertical
Precision :
High Speed
Weight :
9000kg
Machine type :
Vertical Machine Centers
Description

4 Axis Vertical Machining Center High Speed High Presicion VMC12701.

1. HT300 cast iron is used as the main foundation parts such as base, sliding seat, workbench, column and spindle box; The base is of box type structure, and the compact and reasonable symmetrical rib structure ensures the high rigidity, bending resistance and shock absorption performance of the foundation; The A-type bridge span column and the internal grid bar effectively ensure the rigidity and accuracy of z-axis strong cutting; The base parts are molded with resin sand and aging treatment, which guarantees the stability of the long-term performance of the machine tool.
2. The X, y and Z-direction guide rails are heavy-duty linear rolling guide rails, which have the characteristics of high speed, high rigidity, low friction, low noise, low temperature rise and so on. With automatic forced lubrication, the accuracy and life of the machine tool are improved;
3. Z-direction counterweight balance to ensure smooth and stable movement of headstock; The z-direction drive motor is provided with a power loss braking device;
4. The X, y and Z directions are fed by high-precision and high-strength internal circulation double nut preloaded ball screw with large lead, and the feed speed is high; The drive motor is directly connected with the lead screw through the elastic coupling, and the feed servo motor directly transmits the power to the high-precision ball screw without back clearance to ensure the positioning accuracy and synchronization of the machine tool;

Main technical parameters

ITEM MODELS→ VMC1270 VMC1275 VMC1370 VMC1375

WORKTABLE (WIDTH*LENGTH) 		mm 600*1360 600*1360 700*1400 700*1400

DISTANCE BETWEEN T SLOTS		 mm 5-18*152.5 5-18*152.5 5-18*152.5 5-18*152.5

MAX LOAD BEARING OF WORKTABLE		 kg 900 900 900 900

X/Y/Z AXIS TRAVEL		 mm 1200/700/700 1200/750/700 1300/700/750 1300/750/650
Nose end of main shaft to workbench mm 150-750 150-750 150-800 150-800

SPINDLE HOLE TAPER		 BT50 BT50 TB50 TB50

SPINDLE SPEED RANGE		 r/min 10000 10000 10000 10000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT

SPINDLE MOTOR POWER		 kW 15 15 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 24*24*18 24*24*18 16/16/16

MAX CUTTING FEED SPEED		 mm/min 10000 1-10000 1-10000 1-5000

TOOLS MAGAZINE CAPACITY		 pcs 24 24 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005 0.005 0.005

MACHINE DIMENSION		 mm 3530*2600*2640 3420*2370*2540 3630*2600*2640 4535*3050*3100

MACHINE WEIGHT		 kg 9000 9000 10000 10000

Durable Stable VMC Vertical Machining Center Multifunctional VMC1270
