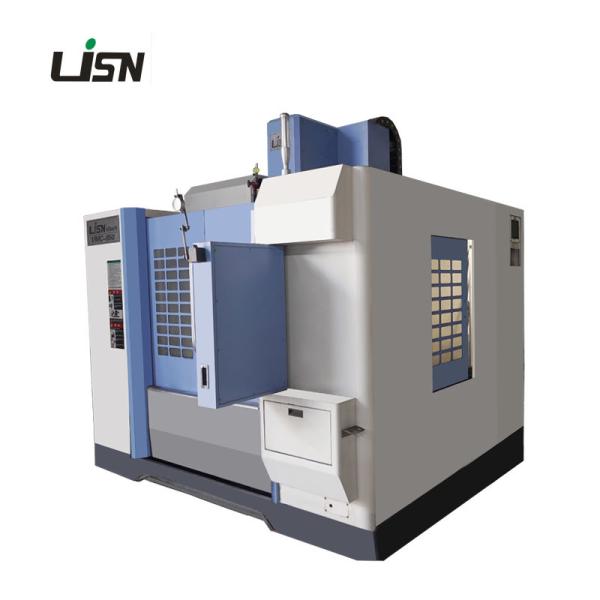

Anti Vibration Stable 4 Axis VMC , Practical High Speed Vertical Machining Centers
Anti Vibration Stable 4 Axis VMC , Practical High Speed Vertical Machining Centers
Anti Vibration Stable 4 Axis VMC , Practical High Speed Vertical Machining Centers
Anti Vibration Stable 4 Axis VMC , Practical High Speed Vertical Machining Centers
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-855
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Condition :
New
Warranty :
1 Year
Type :
Vertical
Spindle Taper :
BT40
Spindle Speed :
10000 RPM
Axis :
4
Description

High Precision and Speed 4 Axis CNC Vertical Machining Center VMC 855

Product Description

VMC855 is one of the machines independently developed, manufactured and produced by our company. Compared with VMC850, the 4-axis version of VMC855 has a larger work table, which has more advantages for the processing of some large and complex parts, and can greatly improve the efficiency. The 4-axis version of the VMC855 also has a high-strength construction that provides the excellent stability for the machine, and it also using the oil-water separation design, which can not only prolong the service life of the chip fluid, but also reduce the cost and meet the requirements of environmental protection requirement.

Main Technical Parameters

ITEM MODELS VMC855
WORKTABLE (WIDTH*LENGTH) mm 550*1000
DISTANCE BETWEEN T SLOTS mm 5-18*100
MAX LOAD BEARING OF WORKTABLE kg 600
X/Y/Z AXIS TRAVEL mm 800/550/600
4-AXIS /
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 110-810/110-610
SPINDLE HOLE TAPER BT40
SPINDLE SPEED RANGE r/min 10000
TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
SPINDLE MOTOR POWER kW 7.5
X/Y/Z RAPID FEED SPEED m/min 36*36*24
MAX CUTTING FEED SPEED mm/min 10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 100
MAX.TOOLS ALLOWABLE WEIGHT kg 7
MAX.TOOLS ALLOWABLE LENGTH mm 260
X/Y/Z POSITION ACCURACY mm 0.008
X/Y/Z RE-POSITION ACCURACY mm 0.005
MACHINE DIMENSION mm 2495*1970
MACHINE WEIGHT kg 6000

Standard Configuration for VMC Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / 10000 RPM spindle / Worktable cleaning water gun

Optional Configuration for VMC Series

24 disc manipulator tool magazine / Crawler chips remover / NC rotary table (4 Axis) / CTS / Tool detection system / AJO / 12000 & 15000 RPM Direct connection spindle / Oil mist purifier
