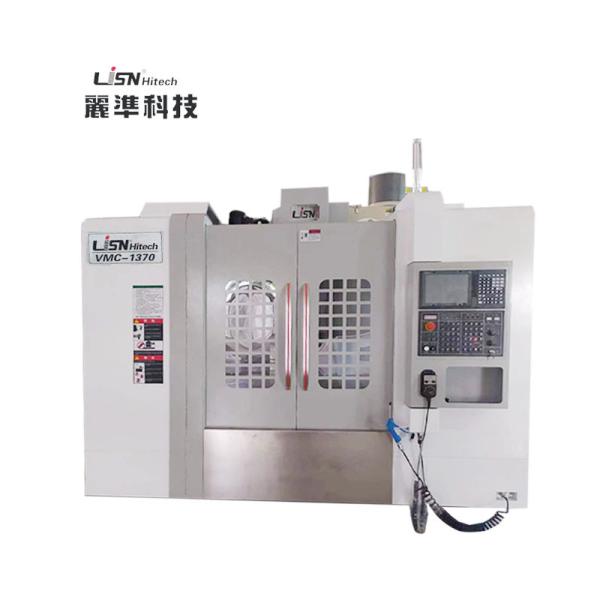

1300x700mm 4 Axis CNC Machining Center VMC 1370 Multipurpose
1300x700mm 4 Axis CNC Machining Center VMC 1370 Multipurpose
Specifications
Brand Name :
LiZhun
Model Number :
VMC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/years
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Certification :
SGS
Type :
Vertical
Condition :
New
Spindle speed :
8000rpm
Machine type :
CNC Vertical Machining Center
Spindle taper :
BT50
Processing :
Maching Center
Warranty :
1 Year
Product name :
4 axis Vertical CNC Machining center VMC1370
Description

Efficient and accurate CNC 4 Axis CNC Machining Center VMC1370

1.Product overview

Table size:1300*700 mm
Travel of X/Y/Z axis:1300*700*750 mm
φ40*16 screw lead
HIWIN/PMI 45 ball linear guide
spindle BT40
disc type magazine of 24 tools

2.Main technical parameters

ITEM MODELS→ VMC1370 VMC1375 VMC1380 VMC1475 VMC1580

WORKTABLE (WIDTH*LENGTH) 		mm 700*1400 710*1400 800*1400 700*1500 800*1700

DISTANCE BETWEEN T SLOTS		 mm 5-18*152.5 5-18*152.5 5-18*152.5 5-18*152.5 5-22*135

MAX LOAD BEARING OF WORKTABLE		 kg 900 1000 1000 1000 1500

X/Y/Z AXIS TRAVEL		 mm 1300/700/750 1300/750/720 1300/800/650 1400/750/650 1500/800/700
N DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 150-800 150-800 150-800 170-780 170-780

SPINDLE HOLE TAPER		 TB50 TB50 TB50 TB50 TB50

SPINDLE SPEED RANGE		 r/min 8000 8000 8000 8000 8000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT

SPINDLE MOTOR POWER		 kW 15 15 15 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 16/16/16 16/16/16 24*24*18 18*18*18

MAX CUTTING FEED SPEED		 mm/min 1-10000 1-5000 1-5000 1-10000 1-10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24 24 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240 240 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15 15 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305 305 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008 0.008 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005 0.005 0.005 0.005

MACHINE DIMENSION		 mm 3630*2600*2640 4535*3050*3100 4535*3050*3100 4535*3050*3100 4110*2740*2900

MACHINE WEIGHT		 kg 10000 9500 9500 11800 12800



3.Product details

1300x700mm 4 Axis CNC Machining Center VMC 1370 MultipurposeStandard Configuration for VMC Series
Standard Configuration for VMC Series

1. Full Cover shield /
2. Self-lubrication system /
3. Working lights /
4. Warning lights /
5. Working condition warning lights /
6. Self-powered electrical shutoff system /
7. Clean air gun/ Water Tank / Transforme /
8. Spindle air curtain and dust control system /
9. 8000RPM spindle /
10.Worktable cleanning water gun
