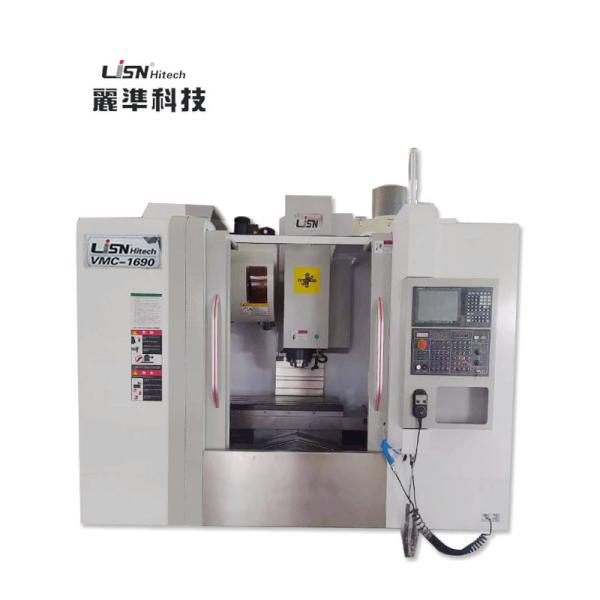

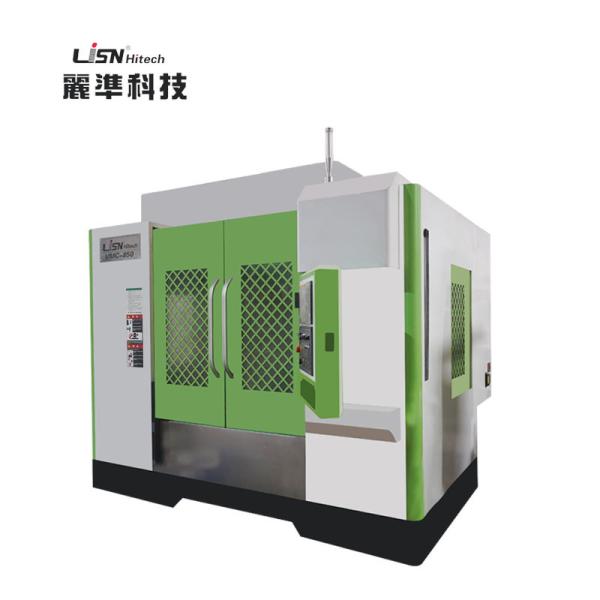

Anti Vibration CNC Machining Center Vertical 1800x7500mm 4 Axis
Anti Vibration CNC Machining Center Vertical 1800x7500mm 4 Axis
Anti Vibration CNC Machining Center Vertical 1800x7500mm 4 Axis
Anti Vibration CNC Machining Center Vertical 1800x7500mm 4 Axis
Specifications
Brand Name :
LiZhun
Model Number :
VMC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/years
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Certification :
SGS
Warranty :
1 Year
Condition :
New
Type :
Vertical
Spindle :
Taiwan 8000rpm spindle
Spindle taper :
BT50
Worktable size :
1800*7500mm
Product name :
4-axis Vertical Cnc Machining Center
Precision :
0.005mm
Name :
VMC1675 Vertical Machining Center 4 Axis
Description

VMC 1675 4 Axis CNC Vertical Machining Center High Speed

Product description
.Precision linear guideways provide high speed rapids;
.Heavy-duty high quality castings provide a solid structure and rigid foundation ;
.The casting bed and Y-shaped column design provide solid support to ensure ultimate dynamic accuracy;
. Full enclosed guard cover and advanced sheet metal design;
. Heavy-cut belt-driven spindle unit/High speed direct-driven spindle;
. High-performance magazine achieves quick tool change to minimize non-cutting time;

Main technical parameters

ITEM MODELS→ VMC1675 VMC1690

WORKTABLE (WIDTH*LENGTH)		 mm 800*1700 900*1800

DISTANCE BETWEEN T SLOTS		 mm 5-22*135 5-22*165

MAX LOAD BEARING OF WORKTABLE		 kg 1500 1500

X/Y/Z AXIS TRAVEL		 mm 1600/750/700 1600/900/680
N DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 160-840 160-840

SPINDLE HOLE TAPER		 / TB50 TB50

SPINDLE SPEED RANGE		 r/min 8000 6000/8000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT

SPINDLE MOTOR POWER		 kW 15 15

X/Y/Z RAPID FEED SPEED		 m/min 18*18*18 18*18*18

MAX CUTTING FEED SPEED		 mm/min 1-8000 1-8000

TOOLS MAGAZINE CAPACITY		 pcs 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305

X/Y/Z POSITION ACCURACY		 mm 0.005 0.005

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005

MACHINE DIMENSION		 mm 4110*2740*2900 4110*2740*2900

MACHINE WEIGHT		 kg 12800 12800


Anti Vibration CNC Machining Center Vertical 1800x7500mm 4 Axis

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
