Horizontal 4 Axis CNC Machining Center 5500kg Anti Vibration
Horizontal 4 Axis CNC Machining Center 5500kg Anti Vibration
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-1270W
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Machine Weight :
5500kg
Machine Dimension :
3300mm*2370mm*3200mm
Warranty :
1 Year
Condition :
New
Type :
Horizontal
Maximum Load Capability :
900kg
Description

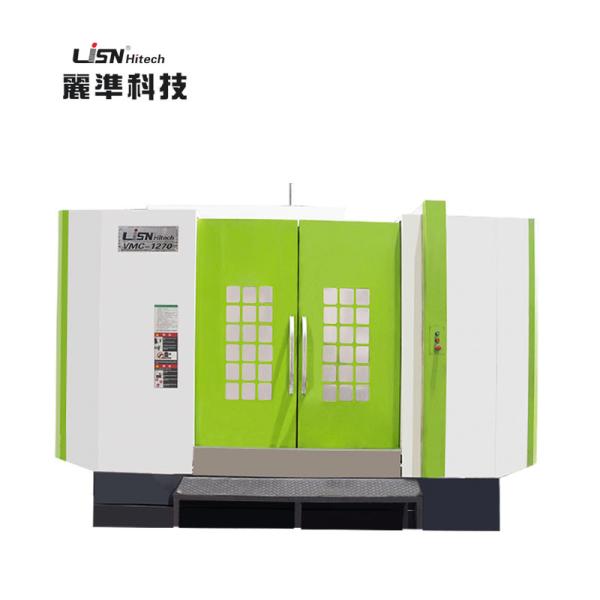

4 Axis Horizontal Machining Center With High Precision and Speed VMC1270W

Product Description

The 4 axis VMC-1270W is high performance horizontal machining center which has high precision and high rigidity characteristics. The structure and layout of the machine are excellent, and the overall rigidity and stability are extremely high which can maintain good accuracy while the process of processing. All castings are characterized by high hardness and rigidity, they have been secondary tempered to provide good stability and rigidity for the machine. This machine equips a high performance spindle with 8000RPM speed range, the maximum cutting feed speed is from 1 till 8000RPM. Both X,Y,Z are using ultra-rigid roller linear guideway, it can greatly improve the control and the accuracy.

Main Features:

  • Ultra-rigid roller linear guideway
  • High rigidity and precision spindle
  • Spindle speed range: 8000RPM
  • Maximum cutting feed speed: 1- 8000RPM
  • Worktable size； 1380mm*600mm
  • Maximum load bearing capability: 900kg
  • Excellent structure and layout

Main Parameters

ITEM MODELS VMC1270W
WORKTABLE (WIDTH*LENGTH) mm 1380*600
T SLOTS mm 5*18*110
DISTANCE BETWEEN T SLOTS mm 5*18*110
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 100-820
MAX LOAD BEARING OF WORKTABLE kg 900
X/Y/Z AXIS TRAVEL mm 1200/750/720
SPINDLE HOLE TAPER BT50
SPINDLE SPEED RANGE r/min 6000/8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
X/Y/Z RAPID FEED SPEED m/min 20/20/20
MAX CUTTING FEED SPEED mm/min 1-8000
MACHINE DIMENSION mm 3300*2370*3200
MACHINE WEIGHT kg 5500

Standard Accessories Optional Accessories
Mitsubishi M80VB Controller Fanuc Oi-MD mate Controller
Air Blast through spindle BT30 Direct Type (12000/15000/18000/20000/24000rpm)
Rigid tapping BT30 Built-IN Type (24000rpm)
Rs232 interface BT40 Direct Type (10000/15000/18000/20000rpm)
CF card interface ATC-BT30 16T/18T/21T
Word lamp ATC-BT40 16T/18T
Alarm lamp Around spindle cutting coolant unit
Auto power off Screw Type Chip Conveyor with Car
Auto lubricantion system Chain Type Chip Conveyor with Car
Cutting coolant unit Column raised: 100mm/200mm
Flushing device Tool lengthe measurement system
Full splash guard Disk type oil-water spearator
Heat exchange for control cabinet oil mist collector
Leveling Bolts and leveling Blocks Ath Axis
Tool Box Auto door
CE

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
