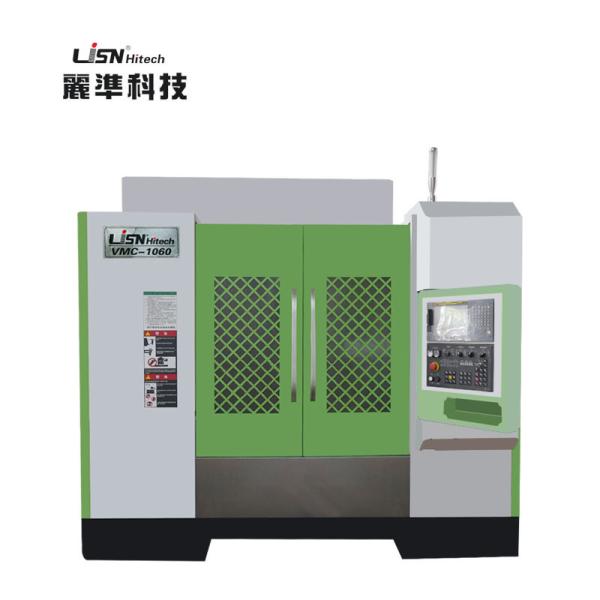

Multiscene 4 Axis Machining Centers , VMC 1060 CNC Vertical Machining Center
Multiscene 4 Axis Machining Centers , VMC 1060 CNC Vertical Machining Center
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-1060
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Certification :
SGS
Condition :
New
Warranty :
1 Year
Type :
Vertical
Spindle Speed :
10000 RPM
Axis :
4
Maximum Cutting Feed Speed :
10000RPM
Description

High Speed 4 Axis CNC Vertical Machining Center VMC 1060 High Precision

PRODUCT DESCRIPTION

The 4 Axis CNC Vertical Machining Center VMC 1060 is a high speedm, high preciosn, high rigidity and high stability. Like the 5-axis VMCC1060, the 4-axis VMC1060 is also equipped with 600*1300 large-size worktable, and is equipped with a spindle head that can absorb vibration, which can greatly ensure the working efficiency and avoid the machining accuracy and other problems caused by tool vibration. We will test each product, such as the temperature of the spindle and the tension of the spindle to ensure the spindle temperature is maintained within the normal range and good machining accuracy.

Main Technical Parameters

ITEM MODELS VMC1060
WORKTABLE (WIDTH*LENGTH) mm 600*1300
DISTANCE BETWEEN T SLOTS mm 5-18*120/5-18*120
MAX LOAD BEARING OF WORKTABLE kg 900
X/Y/Z AXIS TRAVEL mm 1000/600/600
4-AXIS /
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 180-780/70-670
SPINDLE HOLE TAPER 180-780/70-670
SPINDLE SPEED RANGE r/min 10000
TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
SPINDLE MOTOR POWER kW 11
X/Y/Z RAPID FEED SPEED m/min 24*24*18
MAX CUTTING FEED SPEED mm/min 10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 100
MAX.TOOLS ALLOWABLE WEIGHT kg 7
MAX.TOOLS ALLOWABLE LENGTH mm 305
X/Y/Z POSITION ACCURACY mm 0.008
X/Y/Z RE-POSITION ACCURACY mm 0.005
MACHINE DIMENSION mm 3080*2370*2540
MACHINE WEIGHT kg 7800

Standard Configuration for VMC Series

1. Full Cover shield

2. Self-lubrication system

3. Working lights

4. Warning lights

5. Working condition warning lights

6. Self-powered electrical shutoff system

7. Clean air gun/ Water Tank / Transformer

8. Spindle air curtain and dust control system

9. 10000 RPM spindle

10.Worktable cleannig water gun

Optional Configuration for VMC Series

1. 24 disc manipulator tool magazine

2. Crawler chips remover

3. NC rotary table (4 Axis)

4. CTS

5. Tool detection system

6,. AJO

7. 12000 & 15000 RPM Direct connection spindle

8. Oil mist purifier

Product Details

Multiscene 4 Axis Machining Centers , VMC 1060 CNC Vertical Machining CenterMultiscene 4 Axis Machining Centers , VMC 1060 CNC Vertical Machining Center

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
