Specifications
Brand Name :
China
Model Number :
MY3270
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5000-6500
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Description

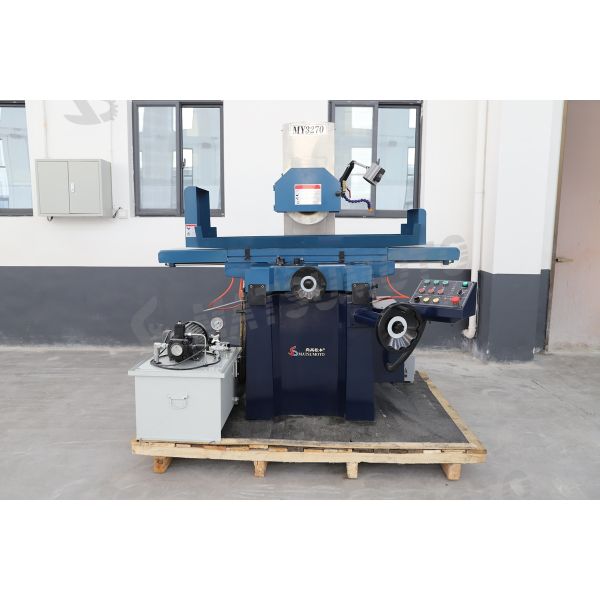

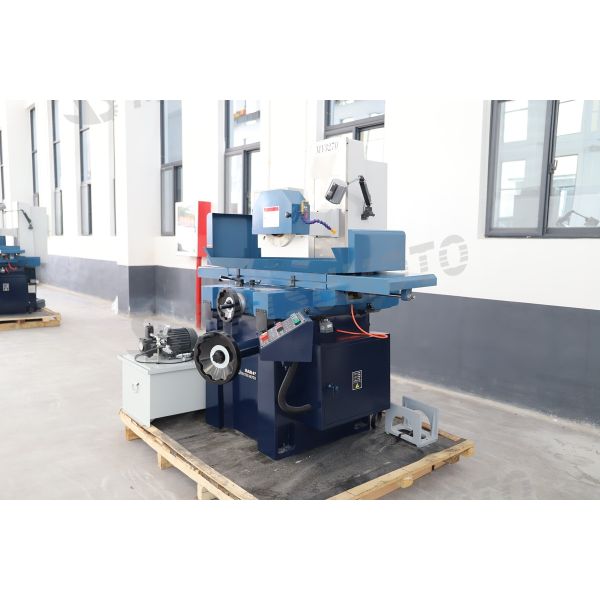

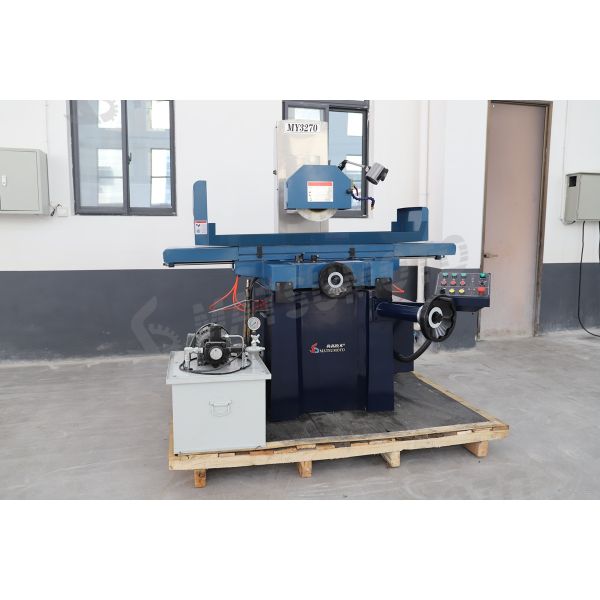

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder

Description:

The hydraulic system of MY3270 hydraulic surface grinder is composed of a set of motor quantitative pumps. The maximum flow of the pump is 18L/min, the motor power is 4KW, the working pressure of the pump can reach 3Mpa, and the system pressure is adjusted by the relief valve. The main mechanical valve of the system is a special valve for grinders, which is divided into two parts, mechanical reversing control and throttling speed control. The throttling speed control part also has an unloading function, which can realize the start and stop of the workbench. This valve also has a buffer adjustment function. The machine tool has the characteristics of easy operation, flexible and reliable, no vibration, stable precision, good thermal stability, low noise, and easy maintenance.

PROJECT

UNIT

MY3270

MY4080

Table size(W*L)

mm

320*700

400*800

Max.grinding size(L*W*H)

mm

320*700*400

430*850*340

Max.longitudinal stroke of worktable

mm

700

850

T-slot of worktable(Number*w)

mm

1*14

3*14

Max.distance from spindle centerline to the worktable surface

mm

420

550

Vertical feed handwheel feed rate(per rotation)

mm

4.0

5.0

Vertical feed handwheel feed rate(per gird)

mm

0.01

0.02

Horizontal feed handwheel feed rate(per rotation)

mm

5.0

5.0

Horizontal feed handwheel feed rate(per grid)

mm

0.02

0.02

Spindle motor

kw

4

5.5

Work pressure

mpa

3

3

Hydraulic oil tank

L

100

120

Grinding spindle speed

r/min

1440

1440

Grinding wheel size(OD*W*ID)

mm

350*30*127

350*40*127

Parallelism of the machined surface to the base surface

mm

300:0.005

300:0.005

Surface roughness

μm

Ra0.63

Ra0.63

Weight

kg

1600

2700

Dimensions(L*W*H)

mm

1900*1500*1900

2500*2000*2200

  • Machine Feature

    Machine structure is mechanical ,make the machine stable quality,easy to maintain
    Workpiece fixture is simple structure to supply good capacity.
    Spindle and stroke use inverters to control, have good precision.
    Stronge dual guide rails support to supply parallel stroke moving.Make machine have long lifetime.
    The machine have mechanical Zero stop---set finished size , when size is the set size ,machine would stop working.
    Time honing ----set time , time go off ,machine stop.
    With several steps with honing tools, could get 0.001mm roundness,straightness would be 0.001mm,Size accuracy could be in 0.005mm

  • Details Images

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

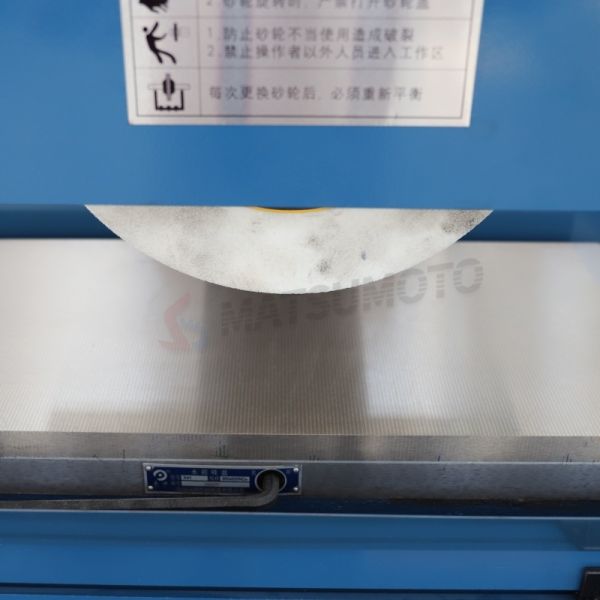

MAGNETIC CHUCK

Standard with permanent magnetic chuck, can tighten many parts and even small pieces, easy to operate.

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

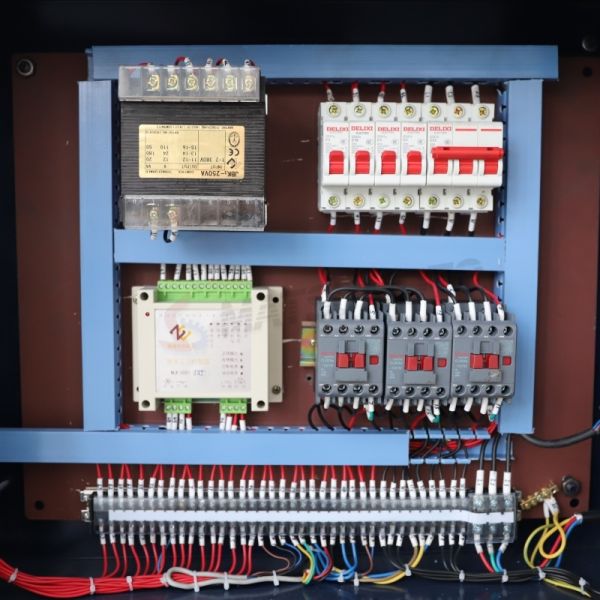

NEAT CIRCUIT
The electrical box is neat and
clean, and the maintenance
links are clear at a glance.

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

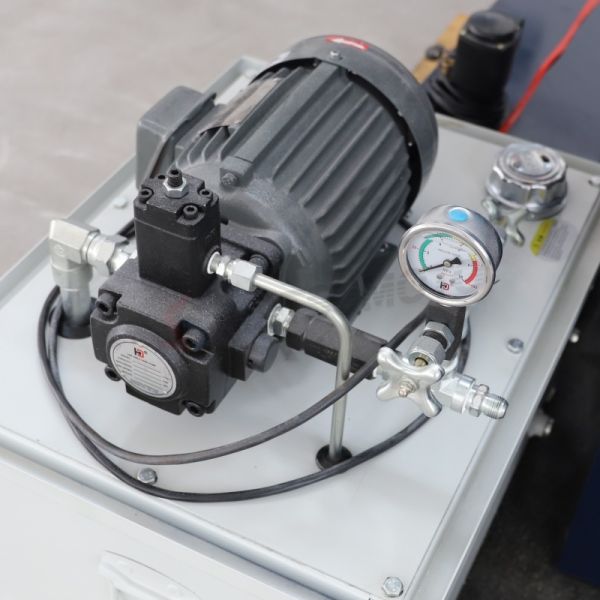

HYDRAULIC SYSTEM

Adopts Taiwan hydraulic system, operate smoothly, long service life.

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

ELECTRONIC DIGITAL DISPLAY(OPTIONAL)

Stable and precise measurement, quality assurance.

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck

MY3270 Hydraulic Surface Grinding Machine Flat Surface Grinder 4KW With Magnetic Chuck
