Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
Specifications
Brand Name :
Matsumoto
Model Number :
M250AHD
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5800-6900
Payment Terms :
T/T
Delivery Time :
20 working days
Packaging Details :
plywood case
Worktable size(L*W) :
500*250mm
Table max cutting area(L*W*H) :
580*260*380mm
Number of T-Slot :
1*14
Distance from Table Surface To Spindle Center :
470mm
Wheel Size(dia * width* bore) :
Φ200*20*φ31.75mm
Spindle motor :
1.5kw
Description

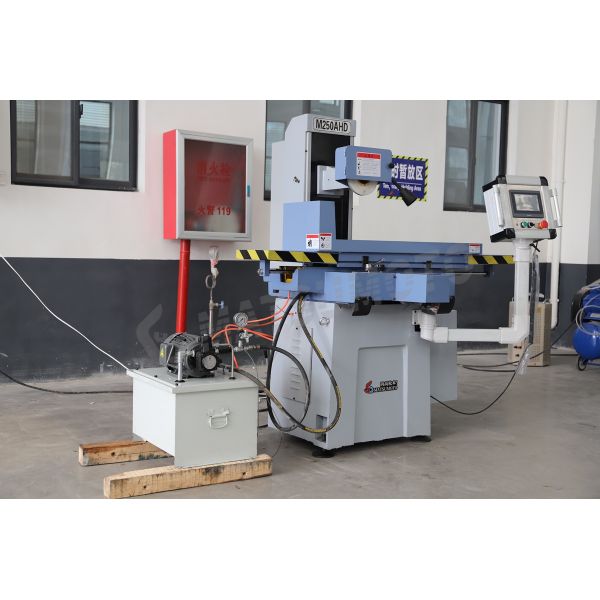

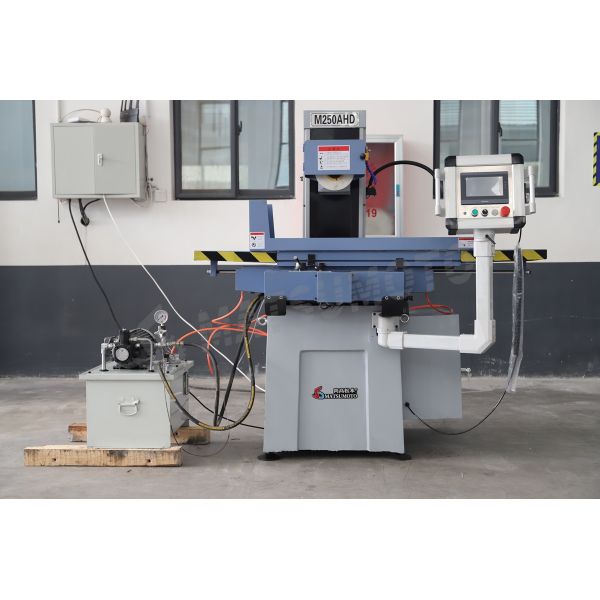

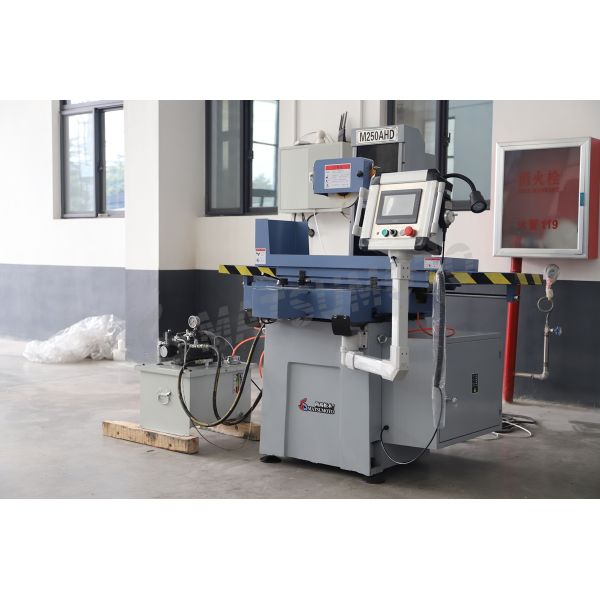

M250AHD Servo Motor PLC CNC Surface Grinding Machine

Model
Unit
M250AHD
Bench
Worktable size(L*W)
mm
500*250
Max travel of table(L*W)
mm
550*250
Table max cutting area(L*W*H)
mm
580*260*380
Number of T-Slot
mm
1*14
Grinding head
Distance from Table Surface To Spindle Center
mm
470
Wheel Size(dia * width* bore)
mm
Φ200*20*φ31.75
Spindle speeds (50HZ)
r/min
2850
The amount of feed
Table longitudinal (left and right) speed (stepless)
m/min
3--23
Table horizontal (before and after) the amount of feed
Continuous (variable speed)
mm/min
150
Intermittent (stepless)
mm
0-5
The handwheel rotatos
mm
2.5
Hand wheel each grid
mm
0.02
Vertical (up and down) feed
Handwheel rotates
mm
1.25
Hand wheel each grid
mm
0.01
Motor power
Spindle motor
kw
1.5
Cooling motor
w
40
Weight of machine&
working precision
The machined surface of the base of parallelism
mm
300/0.005
Surface Roughness
μm
Ra0.32
Net weight
kg
950
Cross weight
kg
1000
Machine size (L*W*H)
mm
1700*1300*1800
Features:
1.M250AHD is a 3 axis full automatic metal surface grinding surface grinder,with Taiwan PLC control panel , quality castings and magnetic chuck.
2.Longitudinal feeding: Hydraulic.
3.Cross feeding: motor electric.
4.Vertical feeding: rapid AC servo motor.
5.M250AHD surface grinder grinding machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.

  • Details Images:

Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD

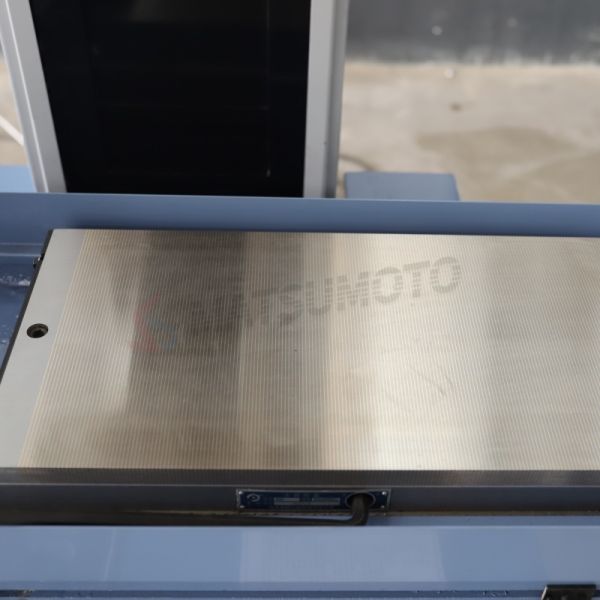

ELECTRO MAGNETIC CHUCK

Standard with electro magneitc chuck, easy to operate, save much time. It can tighten many parts and even small parts.

Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD

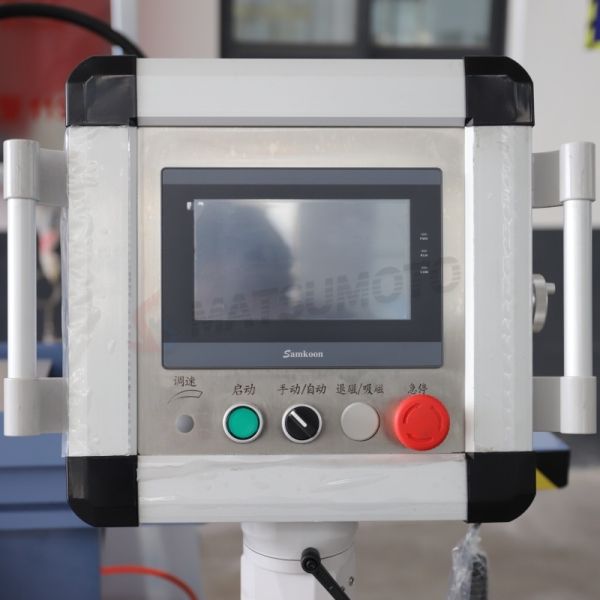

CONTROL SYSTEM

Standard with GSK system, with hand wheel easy to operate.

Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD

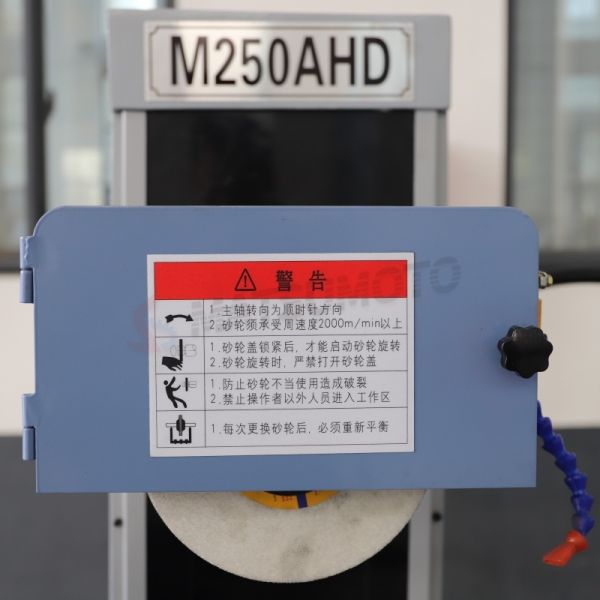

GRINDING HEAD

Grinding head moves up and down driven by precision ball screw and servo motor. It can grinding various planes planes and complex forming surfaces.

Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD

Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD

Servo Motor PLC CNC Surface Grinding Machine 500x250mm Worktable M250AHD
