Specifications
Brand Name :
Matsumoto
Model Number :
MY618
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$3500-4000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Description

MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal


Function:Surface grinding machine is a kind of grinding machine.The main grinding wheel is used to rotate and grind the workpiece to achieve the required flatness. According to the shape of the worktable, it can be divided into two kinds: rectangular worktable and circular worktable. The main parameters of the surface grinding machine of the rectangular worktable are the width and length of the worktable,and the main parameters of the circular worktable are the diameter of the worktable.According to the different types of shaft can be divided into horizontal shaft and vertical shaft grinding machine.


Specifications
Parameters
Unit
MY618


Worktable
Working Surface of Table
mm
460*180
Max Table Travel
mm
500
Max Grinding Size(W*L*H)
mm
200*480*280
T Slot(Number*width)
mm
1*14
Max Table Load
kg
80
Grinding head
Distance Between Table Surface and Grinding Wheel Shaft Center
mm
360
Vertical feed Handwheel
1 grad
mm
0.01
1 rev
4.0
Cross feed Handwheel
1 grad
mm
0.02
1 rev
4.0
Feed per time(max)
mm
/
Feed per time(min)
mm
/
Hydraulic system
Spindle motor
kw
1.5
Pressure of work
mpa
3
Lubricating oil tank capacity
L
60
Work precision
Grinding Wheel(OD*W*ID)
mm
Φ180*13*Φ31.75
Spindle Speed
50HZ
rpm
2850
Parallelism of the machined surface to the base surface
mm
300:0.005
Surface roughness
um
Ra0.63
Motor
Grinding head motor
kw
1.1
Machine main motor
kw
1.14
Machine size
Net Weight
kg
750
Gross Weight
kg
850
Dimension(L*W*H)
mm
1680*1150*1700


MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal

GRINDING HEAD

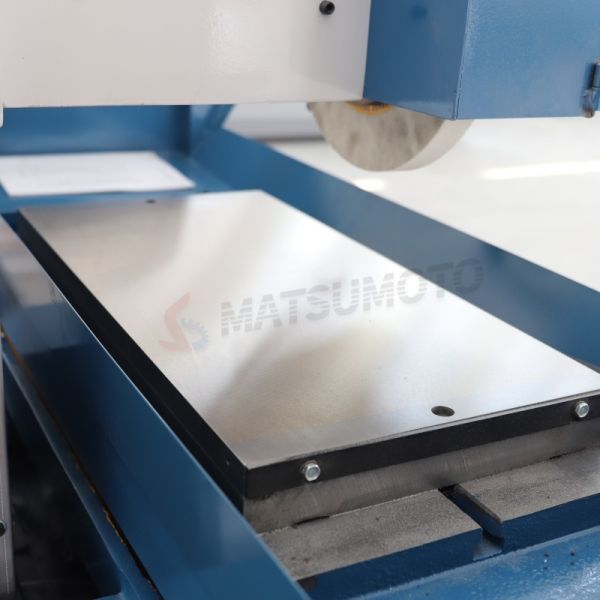

MAGNETIC CHUCK


Standard with permanent magnetic chuck, can tighten many parts and even small pieces, easy to operate.

MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal

MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal

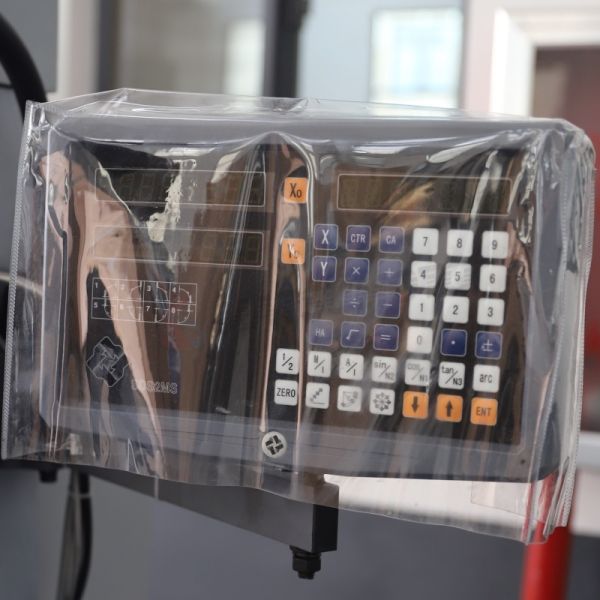

Digital readout

MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal

MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal

MY618 Hydraulic Surface Grinding Machine Surface Grinder for Metal
