M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
Specifications
Brand Name :
Matsumoto
Model Number :
M7163
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$10500-12000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Condition :
New
Warranty :
1 Year
Weight :
5600kg
Dimension(l*w*h) :
3800*2700*2350mm
Voltage :
380V/220V
Table size(L*W) :
1250*630mm
Description

M7163 Hydraulic Surface Grinder Metal Surface Grinding Machine with Magnetic Chuck

  • Description:

Surface Grinder Grinding Machine is a universal surface grinding machine, with reasonable structure, good rigidity,beautiful appearance, easy to operate and other advantages. Suitable for grinding steel, cast iron and non-ferrous metal parts in machine

Specification

Unit

M7163*1250

M7163*1600

M7163*2000

Table size(L*W)

mm

1250*630

1600*630

2000*630

Max. Longitudinal feed of table

mm

1350

1700

2100

Distance from spindle center to table

mm

800

800

800

Max. transverse movement of grinding head

mm

700

700

580

Max. vertical movement of grinding head

mm

600

600

600

Grinding head vertical feed

per gra

mm

0.01

0.01

0.01

Handwheel scale value

per rev

mm

1.00

1.00

1.00

Fast lifting machine

power

kw

0.37

0.37

0.37

speed

r/min

1450

1450

1450

Wheel size(OD*W*ID)

mm

400*127*40

400*127*40

400*127*40

Grinding wheel speed

r/min

1440

1440

1440

Main motor power

kw

14

14

14

Wheel spindle motor power

kw

7.5

7.5

7.5

The oil pump motor

kw

5.5

5.5

4

Work precision

mm

300:0.008

300:0.008

300:0.008

Surface roughness

um

Ra0.63

Ra0.63

Ra0.63

Machine weight

kg

5600

5600

4800

Overall dimension(L*W*H)

mm

3800*2700*2350

4400*1700*2430

5400*1700*2430

  • Details Images:

M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck

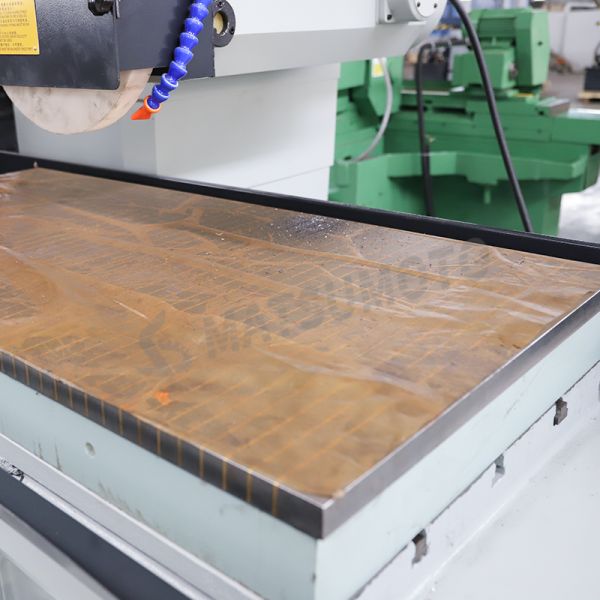

ELECTRIC MAGNETIC CHUCK

Standard with electric magnetic chuck, can tighten many pany parts and even small parts, easy to operate, save time.

M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck

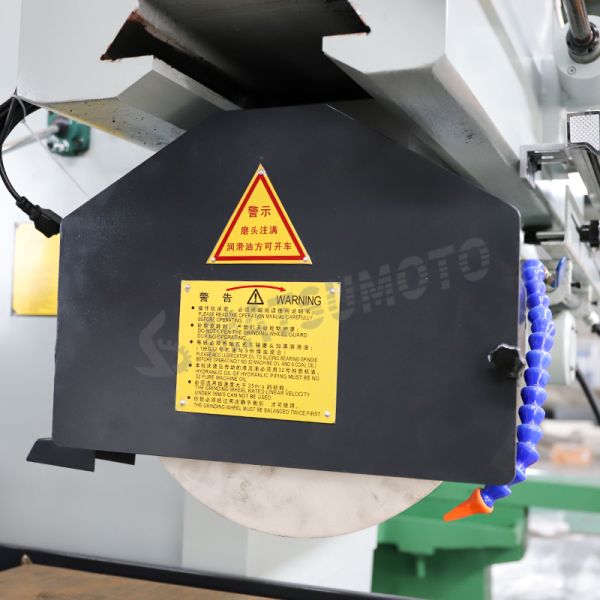

GRINDING WHEEL

Large grinding volume, can grinding various planes and complex forming surface. Worklamp as standard.

M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck

HYDRAULIC TRANSMISSION

Reasonable structure, imported hydraulic transmission. Grinding and transmission synchron-ization.

M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck

OPTIONAL ACCESSORIES

Electronic digital display, stable and precise measurement, quality assurance.

M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck
