Specifications
Brand Name :
Matsumoto
Model Number :
M618
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$3000-3800
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
plywood case
Working Surface of Table :
450*150mm
Max Table Travel :
500mm
Max Grinding Size(W*L*H) :
170*500*270mm
Max Table Load :
80kg
Distance Between Table Surface and Grinding Wheel Shaft Center :
380mm
Grinding Wheel(OD*W*ID) :
Φ175*13*Φ31.75mm
Description

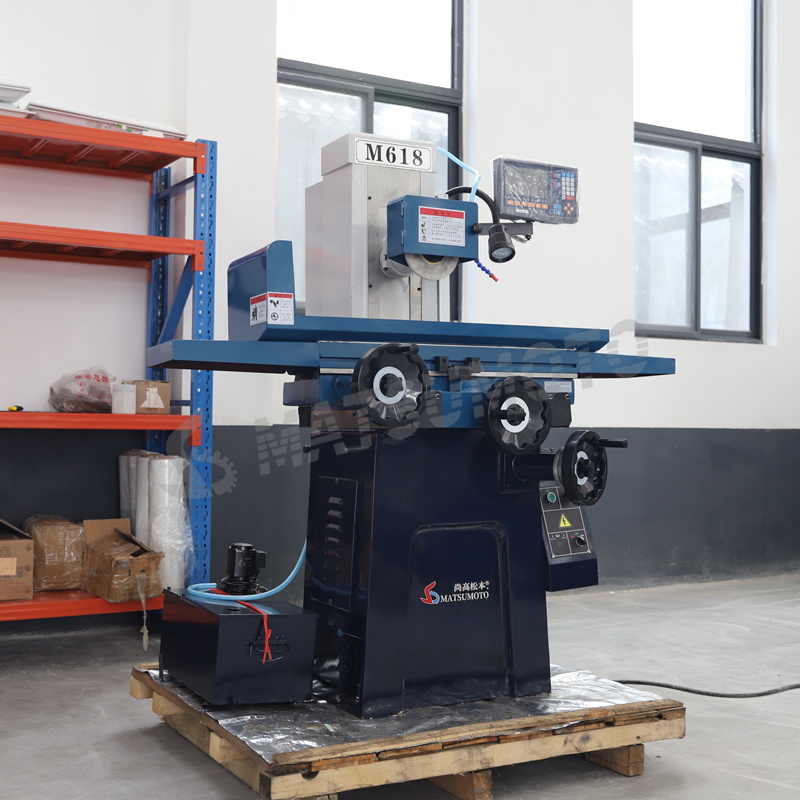

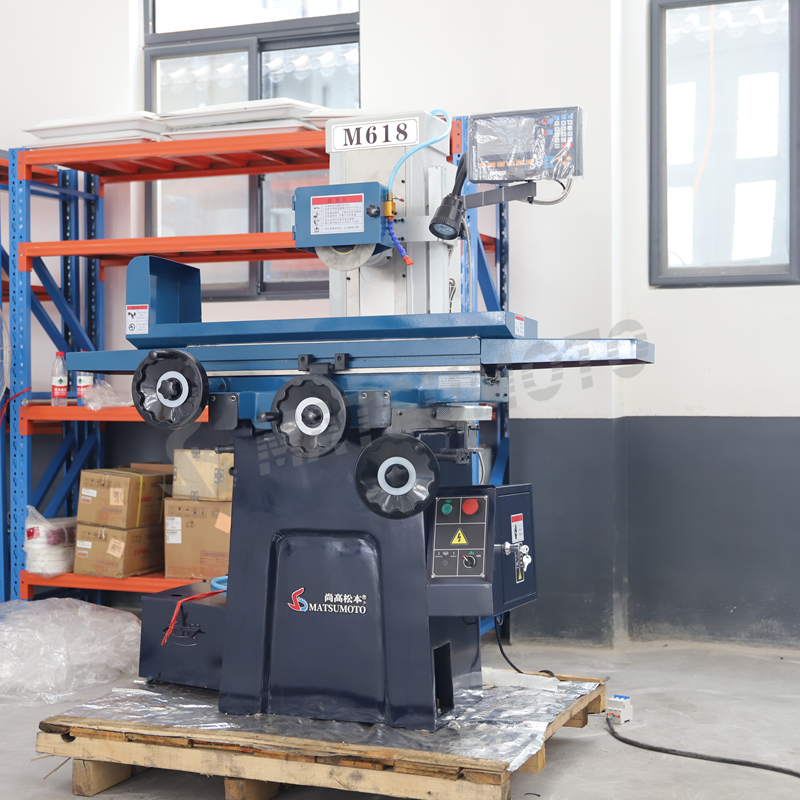

M618 Manual Surface Grinding Machine Small Grinding Machine

Description:

The spindle of M618 manual surface grinding machine adopts P4 grade precision bearing, which has high reliability and convenient maintenance. The machine tool adopts double V sticking plastic track horizontally, one V and one flat longitudinal track, and ball steel track (adopt overall quenching), which has high stability and accuracy, and easy and flexible operation.
The movable parts are lubricated by hand-pulled oil lumps and equipped with various special accessories to meet the requirements of arc grinding and other complex forming.

Specifications
Parameters
Unit
M250
M618


Worktable
Working Surface of Table
mm
500*250
450*150
Max Table Travel
mm
550
500
Max Grinding Size(W*L*H)
mm
280*560*350
170*500*270
T Slot(Number*width)
mm
1*14
1*14
Max Table Load
kg
100
80
Grinding head
Distance Between Table Surface and Grinding Wheel Shaft Center
mm
420
380
Table Speed
m/min
Manual
Manual
Vertical feed Handwheel
1 grad
mm
0.01
0.01
1 rev
4.0
4.0
Cross feed Handwheel
1 grad
mm
0.02
0.02
1 rev
5.0
4.0
Feed per time(max)
mm
0.07
/
Feed per time(min)
mm
0.01
/
Work precision
Grinding Wheel(OD*W*ID)
mm
Φ200*20*Φ31.75
Φ175*13*Φ31.75
Spindle Speed
50HZ
rpm
2850
2850
Parallelism of the machined surface to the base surface
mm
300:0.005
300:0.005
Surface roughness
um
Ra0.63
Ra0.63
Motor
Spindle Motor
kw
1.5
1.1
Machine main motor
kw
2
1.14
Machine size
Net Weight
kg
950
650
Gross Weight
kg
1000
700
Dimension(L*W*H)
mm
1700*1300*1800
1550*1110*1650

Detailed Photos

M618 Small Manual Surface Grinding Machine 450x150mm With P4 Precision Bearing

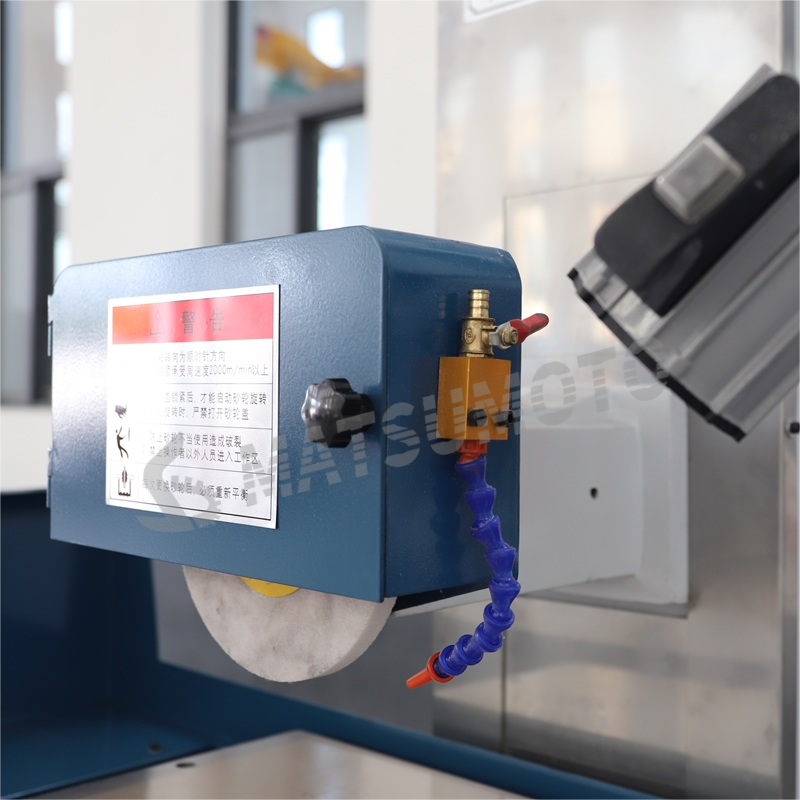

GRINDING WHEELS

Can grind various flot and complex shaped surfaces

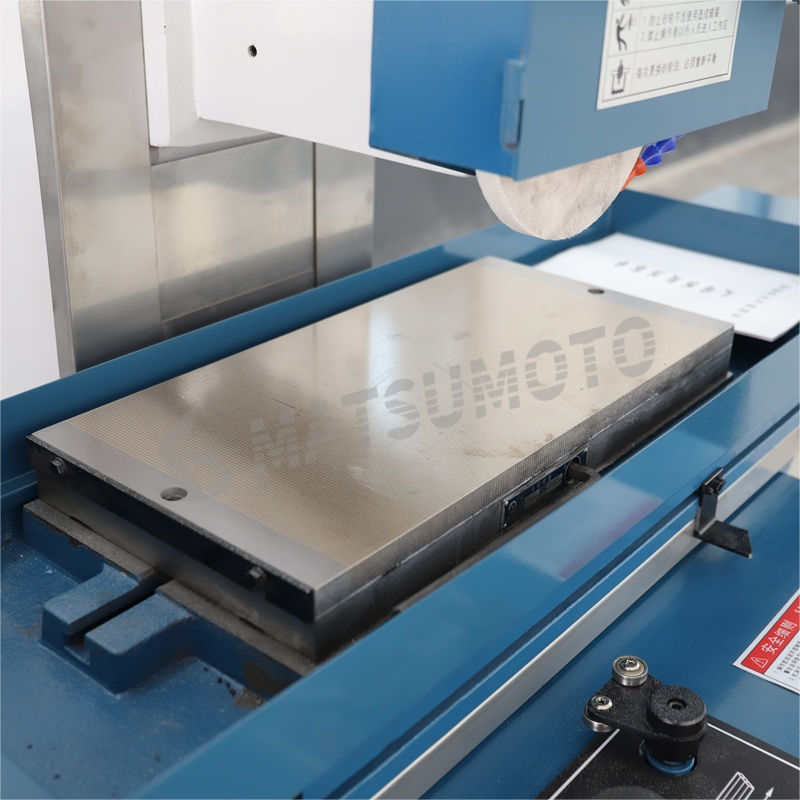

MAGNETIC CHUCK

Standard:
permanent magnetic chuck
Easy to operate
save time

M618 Small Manual Surface Grinding Machine 450x150mm With P4 Precision Bearing

M618 Small Manual Surface Grinding Machine 450x150mm With P4 Precision Bearing

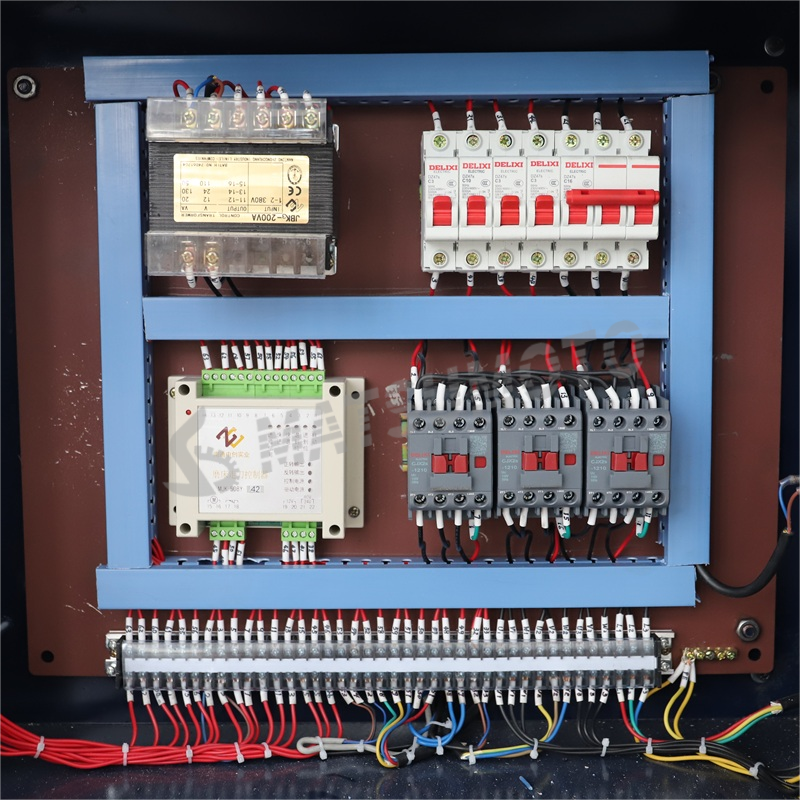

NEAT CIRCUIT
The electrical box is neat and
clean, and the maintenance
links are clear at a glance.

3 axis DRO

3 axis digital readout is optional,need extra cost

M618 Small Manual Surface Grinding Machine 450x150mm With P4 Precision Bearing

M618 Small Manual Surface Grinding Machine 450x150mm With P4 Precision Bearing

M618 Small Manual Surface Grinding Machine 450x150mm With P4 Precision Bearing
