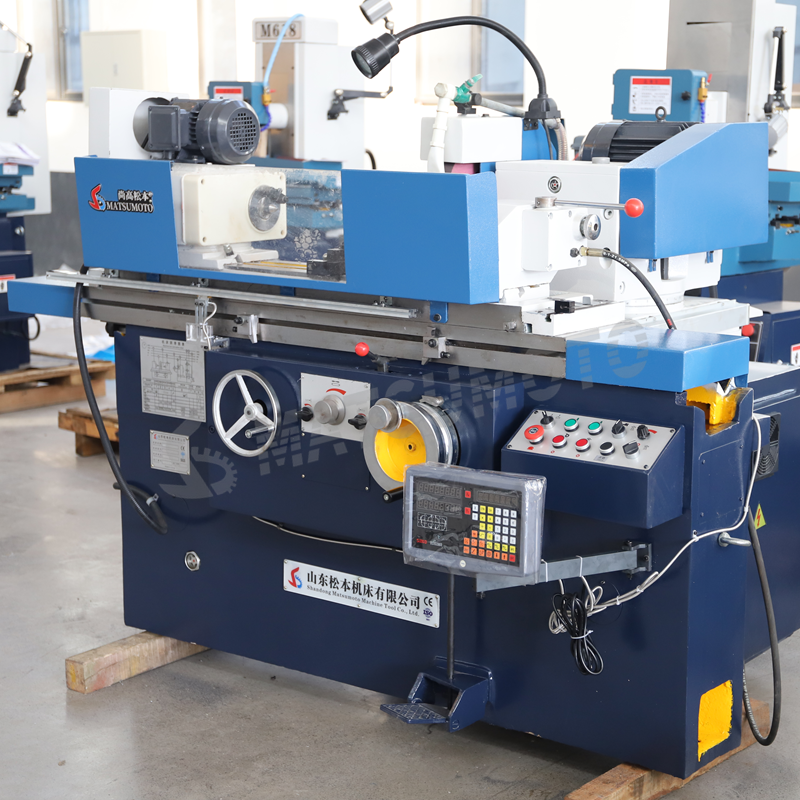

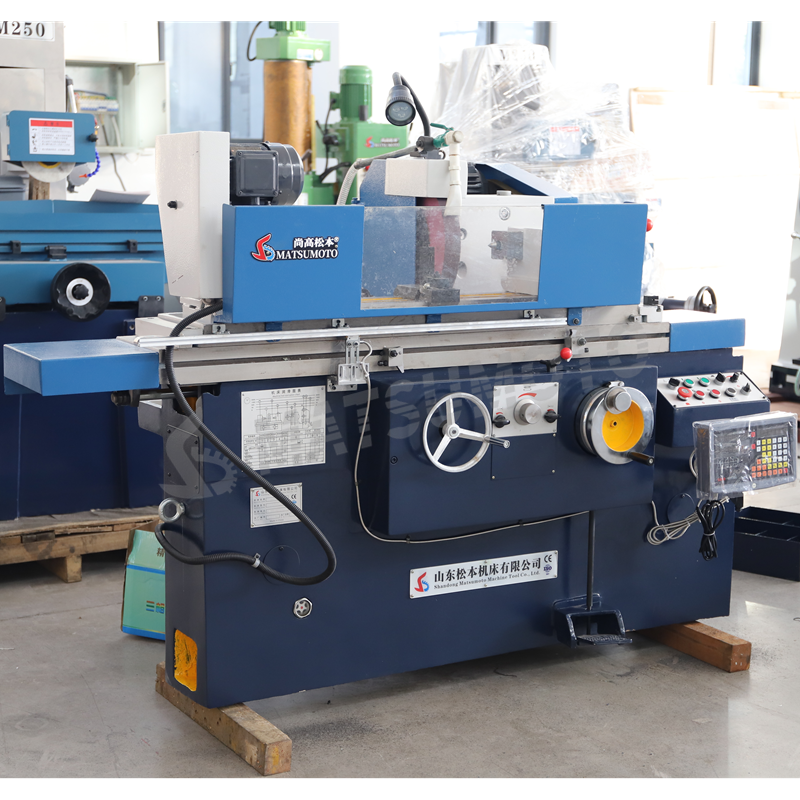

M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
M1320 External Cylindrical Grinder Machine PLC Control For Processing Shaft Components
Specifications
Brand Name :
Matsumoto
Model Number :
M1320
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$9500-10000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Diameter of grinding :
8-200mm
Maximum grinding length :
520mm
Maximum spindle load-bearing :
50kg
Maximum travel of working table :
600mm
Speed of working table :
100-4000mm/min
Center height :
125mm
Description

M1320 External Cylindrical Grinding Machine Cylindrical Grinder PLC Control


Description:

Cylindrical grinders are machines used to grind the outer surfaces and shoulder faces of workpieces formed by the generatrix of cylindrical, conical, or other shapes. They are the most widely used type of grinding machine, capable of processing various cylindrical and conical outer surfaces as well as shoulder faces.
Among all grinding machines, cylindrical grinders represent the most widely applied category. They typically consist of major components including a cast iron bed as the foundation, a worktable, a headstock and tailstock that support and rotate the workpiece, a grinding wheel head (grinding head) mounting the grinding wheel, a transverse feed mechanism controlling the workpiece dimensions during grinding, and electrical and hydraulic systems governing the machine's motion.


Specification

Unit

M1320

Diameter of grinding

mm

8-200

Maximum grinding length

mm

520

Maximum spindle load-bearing

kg

50

Maximum travel of working table

mm

600

Speed of working table

mm/min

100-4000

Rotary angle of worktable

°

-5~+9

Rotary angle of head stock

°

-30~90

Rotary angle of grinding wheel

°

180

Center height

mm

125

Center sleeve taper

#

3

Grinding wheel size

mm

400*40*203

Speed of head stock

r/min

60/85/230/120/170/460

Speed of grinding wheel

rpm

1780

High-speed travel of grinding wheel

mm

20

Maximum travel of grinding wheel

mm

150

Feed rate of grinding wheel handwheel per grid

mm

0.0025

Feed rate of grinding wheel handwheel per rev

mm

1

Power of grinding wheel motor

kw

4

Power of headstock motor

kw

0.25/0.37

Power of oil pump motor

kw

0.75

Power of cooling motor

kw

0.125

Dimension(L*W*H)

mm

2250*1450*1650

Weight

kg

2050

Roundness 0.002mm cylindricity 0.003mm roundness Ra0.32


Application:

External cylindrical grinders are primarily used for precision grinding of end faces, external cylindrical surfaces, and tapered surfaces on batch-produced shaft components. They serve as essential equipment in industries such as automotive engine manufacturing. These machines are also suitable for processing shaft components with high precision requirements and low production volumes in aerospace, and general precision machining workshops.

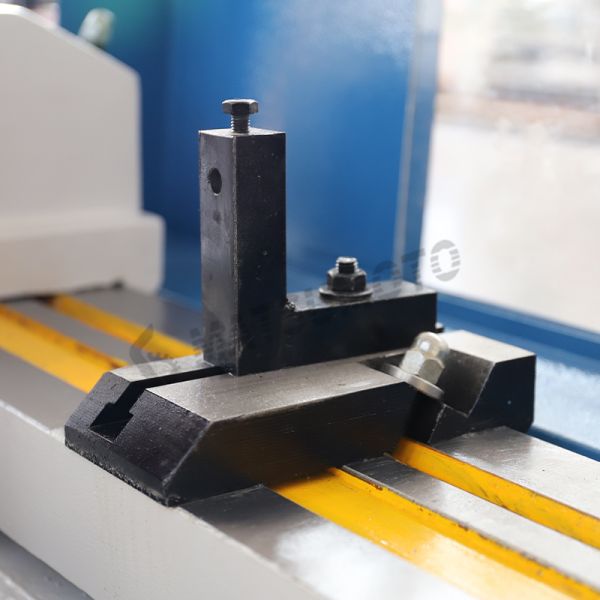

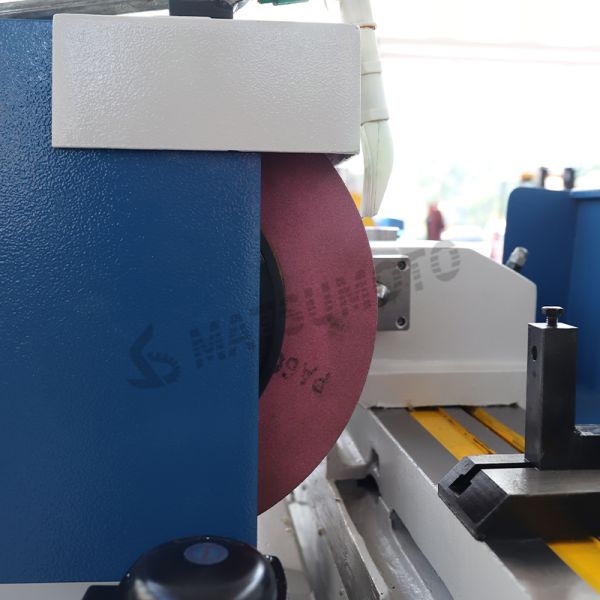

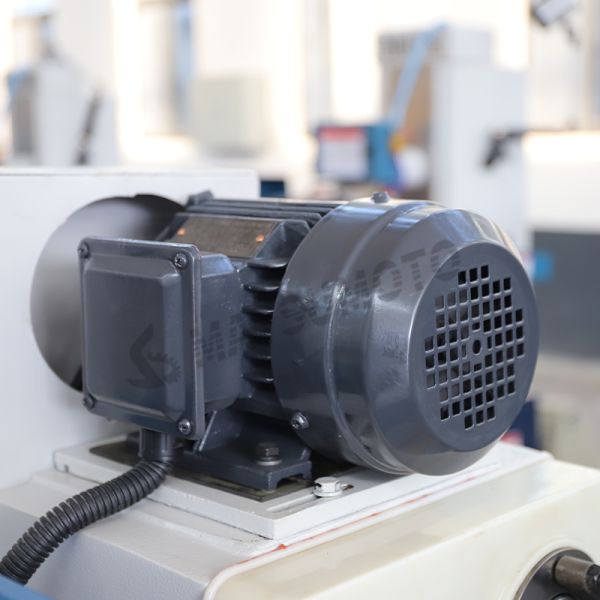

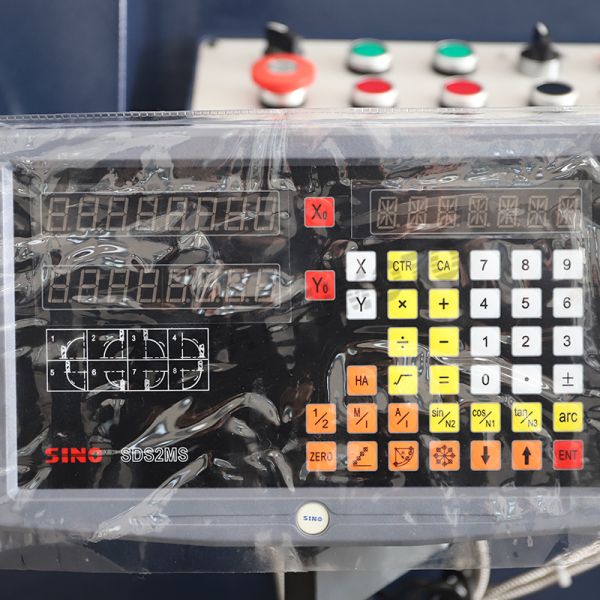

  • Details Images:
