Specifications
Brand Name :
Matsumoto
Model Number :
MK4080
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$10500-12500
Payment Terms :
T/T
Delivery Time :
20 working days
Packaging Details :
plywood case
Table size(L*W) :
406*806mm
Max. left and right movement :
830mm
Max. movement of worktable in front and back :
420mm
Max. distance from spindle axis to worktable :
500mm
Magnetic chuck size :
400*800mm
Lengthwise travel rate to table :
7-16m/min
Description

MK4080 CNC Grinding Machine Surface Grinding Machine Precision Grinder

Description:

CNC grinding machine is a machine tool that employs grinding tools to perform surface grinding operations on workpieces through numerical control technology. It can process high-hardness materials such as hardened steel and cemented carbide, as well as brittle materials like glass and granite.

Specification
Unit
MK4080CNC
Table size(L*W)
mm
406*806
Max. left and right movement
mm
830
Max. movement of worktable in front and back
mm
420
Max. diatance from spindle axis to worktable
mm
500
Magnetic chuck size
mm
400*800
Lengthwise travel rate of table
m/min
7-16
Horizontal movement of worktable
Auto feed rate
mm/min
0.1-8
Maneuvering speed
m/min
990
Handwheel feed rate
mm/div.
0.02
Vertical movement of grinding head
Auto feed rate
mm/stroke
--
Rapid feed
mm/min
610
Handwheel feed rate
mm/div.
0.01
Grinding wheel
Speed
rpm
50Hz 1450
60Hz 1750
(OD*W*ID)Size
mm
300*30*75
Work accuracy:Parallelism of the machined surface to the base surface
mm
300:0.005
Spindle motor
kw
4
Hydraulic station motor
kw
2.2
Cooling pump motor
kw
0.09
Elevator motor
kw
0.09
Front and back drive motors
kw
0.06
Max. load capacity of worktable(including chuck)
kg
200
Total rated power
kw
7
Machine height
mm
1890
Gross weight
kg
2000
Overall dimension(L*W*H)
mm
2300*1900*2170

Application:

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. The spindle is made of Japanese NSK angular contact bearings, which are lubricated by permanent grease to ensure the high-speed and stable rotation of the spindle and reduce the thermal deformation to a minimum. Equipped with 500*250 permanent magnet chuck, and the suction to meet the processing requirements.All exposed sports pairs shall be fitted with protective covers.

  • Details Images:

MK4080 CNC Surface Grinding Machine Precision Grinder With 406x806mm Table Size

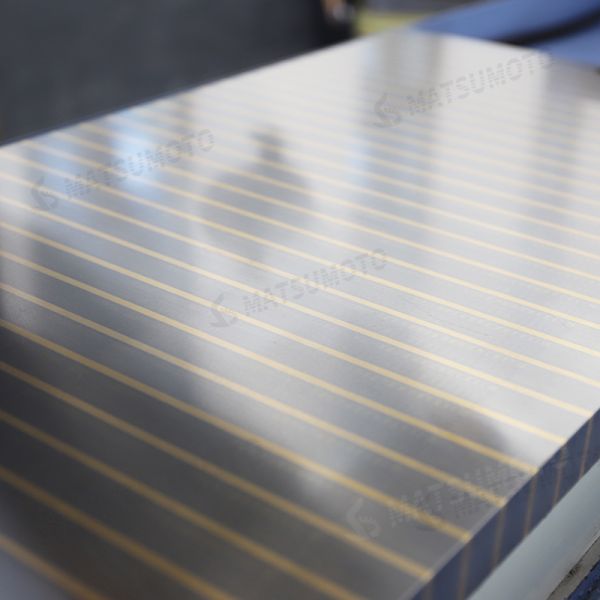

ELECTRO MAGNETIC CHUCK

Standard with electro magneitc chuck, easy to operate, save much time. It can tighten many parts and even small parts.

MK4080 CNC Surface Grinding Machine Precision Grinder With 406x806mm Table Size

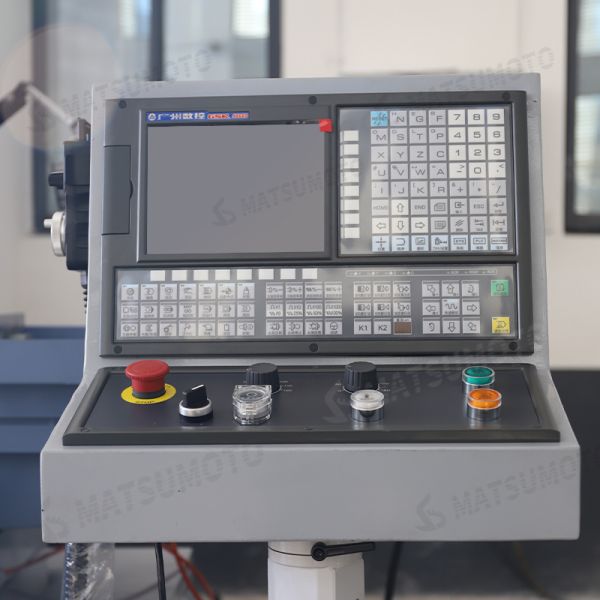

CONTROL SYSTEM

Standard with GSK system, with hand wheel easy to operate.

MK4080 CNC Surface Grinding Machine Precision Grinder With 406x806mm Table Size

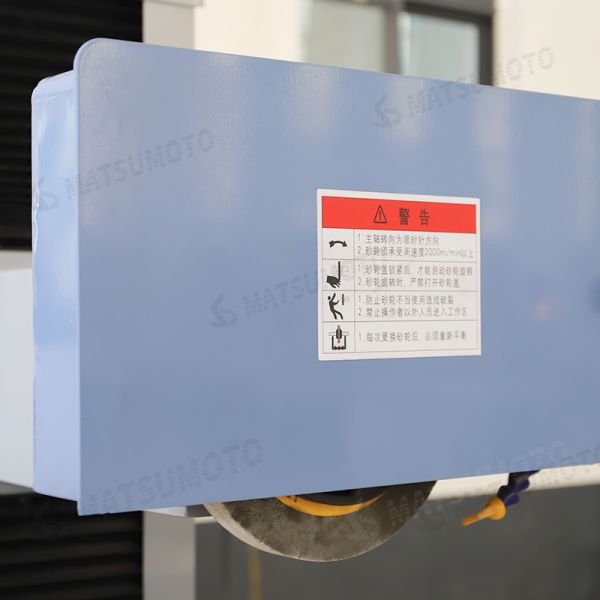

GRINDING HEAD

Grinding head moves up and down driven by precision ball screw and servo motor. It can grinding various planes planes and complex forming surfaces.

MK4080 CNC Surface Grinding Machine Precision Grinder With 406x806mm Table Size

MK4080 CNC Surface Grinding Machine Precision Grinder With 406x806mm Table Size
