Specifications
Brand Name :
Matsumoto
Model Number :
M7132
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$6000-7500
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Table size(L*W) :
1000*320mm
Max. movement of worktable(L*W) :
1100mm
T-slot(Number*width) :
3*18mm
Speed of worktable :
3-25M/min
Max. distance from spindle center to table surface :
570mm
Spindle speed :
1440rpm
Description

M7132 Auto Rectangular Table Hydraulic Surface Grinding Machine

The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Description Units M7132x1000 M7132x1600 M7132x2000
Size of work table(L x W x H) mm 1000x320 1600x320 2000x320
Max. Longitudinal movement of worktable mm 1100 1700 2100
Max. Distance from the spindle centerline to the worktable surface mm 570 570 570
Max. Cross movement of grinding herd mm 350 350 350
Max. Vertical movement of grinding head mm 400 400 400
Vertical movement of the grinding head by hand wheel Every lattice mm 0.01 0.01 0.01
Each turn mm 1 1 1
Rapid lifting motor Power KW 0.37 0.37 0.37
Speed R/min 1440 1440 1440
Abrasive wheel dim (L x D x W) mm 350x127x40 350x127x40 350x127x40
Speed of grinding wheel r/min 1440 1440 1440
Total power of motor KW 9 10 12
Power of spindle motor KW 5.5 5.5 5.5
Power of oil pump motor KW 3 4 5.5
Processing accuracy mm 0.015/1000 0.015/1000 0.015/1000
Surface roughness um Ra:0.63 Ra:0.63 Ra:0.63
Package(L x W x H) mm 2800x1750x2350 4500x2000x2350 5500x2000x2350
Net weight Kg 3500 3550 3600

  • Details Images:

Auto Rectangular Table Hydraulic Surface Grinding Machine 1440rpm 1000x320mm M7132

ELECTRIC MAGNETIC CHUCK

Standard with electric magnetic chuck, can tighten many parts and even small parts, easy to operate, save time.

Auto Rectangular Table Hydraulic Surface Grinding Machine 1440rpm 1000x320mm M7132

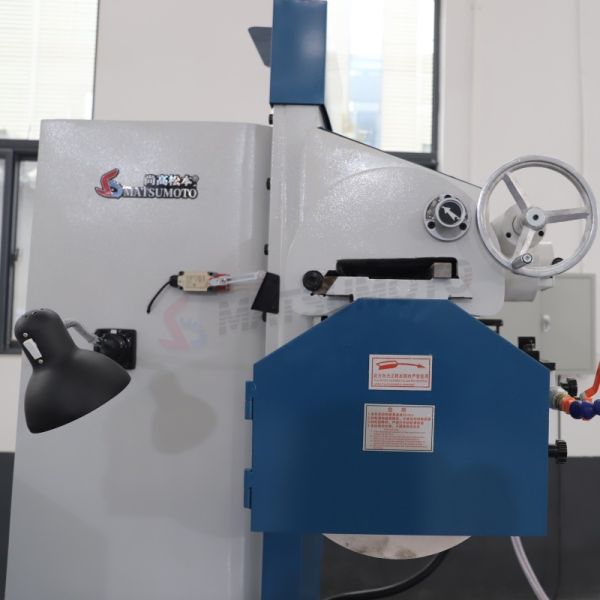

GRINDING WHEEL

Large grinding volume, can grinding various planes and complex forming surface. Work lamp as standard.

Auto Rectangular Table Hydraulic Surface Grinding Machine 1440rpm 1000x320mm M7132

HYDRAULIC TRANSMISSION

Reasonable structure, imported hydraulic transmission. Grinding and transmission synchron ization.

Auto Rectangular Table Hydraulic Surface Grinding Machine 1440rpm 1000x320mm M7132

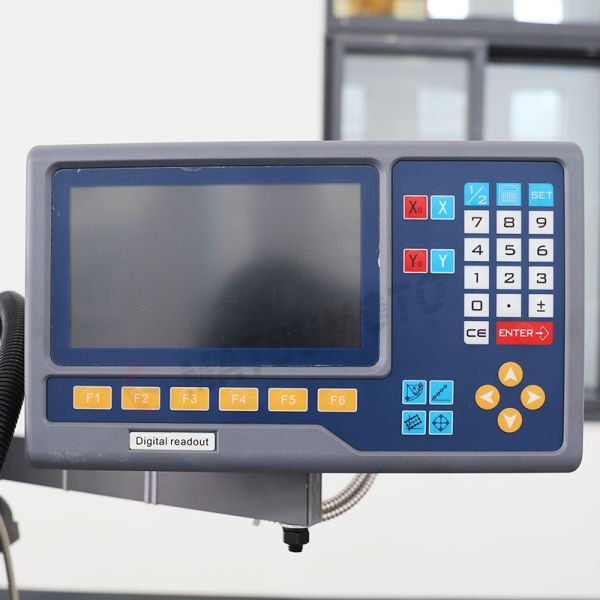

OPTIONAL ACCESSORIES

Electronic digital display,stable and precise measurement, quality assurance.

Auto Rectangular Table Hydraulic Surface Grinding Machine 1440rpm 1000x320mm M7132
