Specifications
Place of Origin :
made in China
Brand Name :
AIRERA
MOQ :
1 unit
Price :
520-30,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Model Number :
VP
Certification :
CE,ISO,GB,TUV
Condition :
New Screw Air Compressor
Noise :
68-89dB
Cooling :
Air or Water Cooled
Power Supply :
220/380/415//440V 50/60Hz 3Ph
Cooling Method :
Air or Water Cooled
Colour :
Blue
Transmission Mode :
Coupling driven
Cooling Model :
Air cooling
Power Rating :
7.5 KW To 400 KW
Advanced Design :
Design in Germany
Start :
Frequency Start
Driving System :
protection system
Inlet Pressure :
Atmospheric Pressure
Description
IE5 PM-VSD Oil-Injected Screw Compressor AGCD-VP Series
PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor
Why Choose AIRERA's New Generation IE5 PM-VSD Compressor?

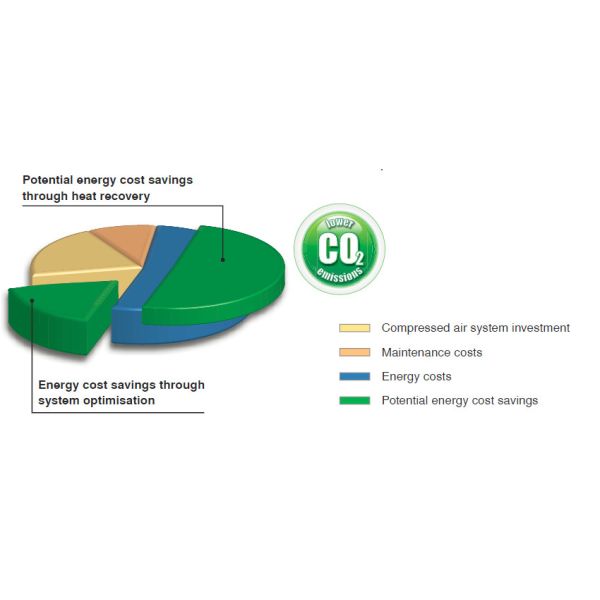

Electricity consumption accounts for over 70% of operational costs in compressed air systems, with air compressors typically representing more than 40% of a factory's total electricity bill. Our variable speed drive compressors significantly reduce energy consumption and carbon emissions while precisely matching fluctuating air demand.
Compressed air requirements vary significantly throughout the day, week, and year, with fluctuations ranging from 40% to 80%. Rotorcomp adjustable speed drive screw compressors deliver exactly the air supply needed. When demand decreases, the variable frequency inverter reduces capacity and power consumption simultaneously.
Third Generation PM-VSD Compressor Features
  • Eliminates inefficient conversion from full load to unloading cycles
  • 6-20% more energy efficient compared to three-phase asynchronous frequency conversion machines
  • Maintains pipeline pressure within 0.01 MPa, avoiding unloading power consumption
  • Reduces average working pressure and system leakage
  • Soft-start feature prevents current surges and improves motor current balance
  • Offers pressure selection from 6 to 13 bar to minimize energy consumption
Key Features of Third Generation AIRERA's IE5 PM-VSD Screw Compressor
1. Higher-Efficiency Screw Head with Increased Air Volume
Features upgraded high-efficiency screw head design for larger air volume output. Utilizes low-speed screw rotor selection paired with optimally matched motors, ensuring each rotor operates at its ideal speed for maximum energy efficiency ratio.
PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor
2. Expanded 30-200Hz Frequency Range for Enhanced Energy Savings
Our advanced control system employs dual frequency conversion technology, maintaining original motor frequency conversion characteristics while incorporating variable frequency cooling fans. This dual conversion approach ensures stable cooling system operation with modular design for easy maintenance.
PCB coating enhances environmental tolerance, while superior thermal design allows operation in 50°C ambient temperatures. The system automatically adjusts rated output based on temperature conditions, maintaining continuous high-efficiency inverter operation. Delivers 15-35% energy savings compared to most 30-100Hz compressors on the market.
PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor
3. High-Efficiency SF 1.2-1.6 IP55/IP66 IE5 PM-VSD motor

Equipped with premium efficiency motors compliant with IE4/IE5 & MEPS standards, meeting first-level energy-saving efficiency standard CN-CE-1306-06/16.
PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor

Dedicated extra-large intake valve.

  • Normally closed, ultra-large diameter, ultra-low pressure drop;

Low failure rate and long service life;

PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor

Multi-touch color controller, simple and convenient to operate and monitor

PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor

Filters out fine particles from the air intake, removing 99.99% of impurities to ensure safe entry.

Air quality at the nose section extends the lifespan of the main unit

PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor

Technical Specifications
Model Air Flow (m³/min)* Power (kW) In/Outlet Noise dB(A)** Dimension L*W*H (mm) Weight (kg)
8bar | 10bar | 13bar | 15bar Motor | Motor(Fan)
AGCD-5.5 VP 0.22-0.87 | 0.19-0.75 | 0.16-0.61 | 0.14-0.53 5.5 | 0.09 G1 69 900*750*900 255
AGCD-7.5 VP 0.30-1.20 | 0.26-1.04 | 0.23-0.90 | 0.2-0.80 7.5 | 0.09 G1 69 900*750*900 260
AGCD-11 VP 0.45-1.79 | 0.40-1.58 | 0.35-1.32 | 0.3-01.17 11 | 0.18 G1 70 950*800*1290 390
AGCD-15 VP 0.60-2.40 | 0.55-2.15 | 0.46-1.84 | 0.42-1.66 15 | 0.18 G1 70 950*800*1290 400
AGCD-20 VP 0.75-3.00 | 0.73-2.90 | 0.65-2.52 | 0.55-2.02 18.5 | 0.37 G1 71 1250*960*1300 555
AGCD-22 VP 0.88-3.51 | 0.80-3.16 | 0.68-2.71 | 0.62-2.45 22 | 0.37 G1 71 1250*960*1300 695
AGCD-30 VP 1.25-4.88 | 1.10-4.32 | 0.95-3.64 | 0.82-3.25 30 | 0.75 G1-1/4 71 1440*1006*1296 740
AGCD-37 VP 1.46-5.83 | 1.31-5.21 | 1.11-4.44 | 1.02-4.01 37 | 0.75 G1-1/4 73 1440*1006*1296 805
AGCD-45 VP 1.77-7.08 | 1.58-6.30 | 1.36-5.43 | 1.25-4.94 45 | 1.1 G1-1/4 75 1440*1006*1296 845
AGCD-55 VP 2.33-9.32 | 2.09-8.33 | 1.77-7.05 | 1.58-6.31 55 | 1.1 G2 75 1600*1200*1650 1260
AGCD-75 VP 3.1-12.31 | 2.8-11.13 | 2.44-9.61 | 2.19-8.74 75 | 1.1 G2 75 1600*1200*1650 1460
AGCD-90 VP 4.2-16.45 | 3.6-14.26 | 3.0-11.72 | 2.70-10.8 90 | 2.2 G2 75 2000*1580*1790 1650
AGCD-110 VP 5.1-20.26 | 4.4-17.48 | 3.6-14.25 | 3.3-13.05 110 | 2.2 G2 78 2540*1700*1900 1850
AGCD-132 VP 5.8-23.08 | 5.2-20.54 | 4.5-17.65 | 4.2-16.05 132 | 2.2 G2 78 2540*1640*1800 2350
AGCD-160 VP 7.1-28.00 | 7.1-26.00 | 6.05-22.00 | 6.5-18.39 160 | 3.8 G2-1/2 80 2540*1640*1800 2490
AGCD-200 VP 9.05-36.00 | 9.05-33.00 | 7.15-25.00 | 7.15-21.00 200 | 7.6 DN80 80 3150*1800*2100 3390
AGCD-250 VP 11.3-45.00 | 11.3-40.00 | 9.25-32.00 | 8.2-28.00 132 | 7.6 DN80 81 3150*1800*2100 3690
AGCD-280 VP 13.5-49.20 | 13.5-45.00 | 11.5-41.30 | 10.5-38.50 280 | 11 DN100 81 3450*2000*2200 5790
AGCD-315 VP 15.5-56.50 | 15.5-50.50 | 12.5-45.00 | 12.5-41.05 315 | 11 DN100 83 3450*2000*2200 6890
PM-VSD Oil Injected Screw Compressor IE5 AGCD-VP 7.5kw-400kw Screw Compressor
Important Notes
1. Parameters and colors are designed according to customer requirements. Specifications are for reference only; final parameters as per technical drawings shall prevail.
2. Cooling method (air/water), oil content, weight, and dimensions can be customized based on user requirements, subject to final order and technical agreement.
3. Frequency converters available as optional equipment.
4. Comprehensive warranty: 2 years general warranty with 2 years warranty on air end.
