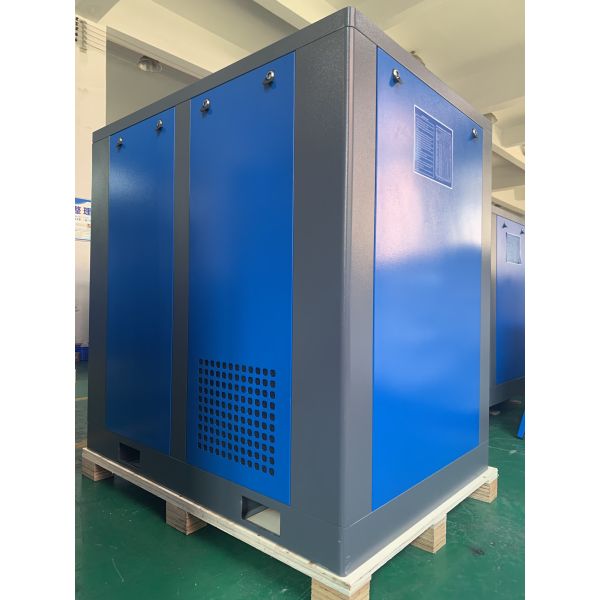

45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
45KW VSD 0.8-1.3MPa oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-45D C VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
10200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.8-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 45kW VSD Series: Full Pressure Coverage, The New Standard in Industrial Power

AIRERA is committed to enhancing industrial productivity through innovative technology. Our 45kW Variable Speed Drive (VSD) Oil-Injected Screw Compressor, featuring a wide pressure adjustment range of 0.8-1.3MPa, is the ideal choice for diverse and demanding operational needs. Whether your process requires standard 0.8MPa power or high-demand 1.3MPa precision air supply, AIRERA delivers with absolute precision

Advantages of AGCD VSD Oil-Inject Air Screw Compressor
  • Upgraded high-efficiency screw compressor heads for greater airflow

    By selecting low-speed screw rotors and the most suitable motors, and pairing them with main units optimized for specific speeds, we ensure that each rotor operates at its optimal speed, achieving the best possible energy efficiency ratio.

45KW VSD 0.8-1.3MPa oil inject screw compressor

  • Multi-touch color controller for simple and convenient operation and monitoring



45KW VSD 0.8-1.3MPa oil inject screw compressor

  • The more efficient SF 1.2 IP55 VSD motor complies with IE5 and MEPS standards and meets the national Class 1 energy efficiency standards

45KW VSD 0.8-1.3MPa oil inject screw compressor
Technical Specifications - 45KW VSD Air Cooling Compressor
ITEM UNIT MODEL AGCD-45 VP
Free air delivery m³/min 1.9-7.6 | 1.75-7. 0| 1.45-5.8
Max. working pressure MPa 0.8 ~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 800~3000
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 10200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.88 ~ 1.43
Lubricating water volume L 30
Compressed air outlet connection
G1-1/2
Dimension - L mm 1400
Dimension - W mm 1000
Dimension - H mm 1300
Net Weight kg 845
Motor - Model
YPM180L30-45
Motor - Speed rpm 800~3000
Motor - Rated Power KW 45
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE3
Motor - Startup mode
Frequency conversion starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 40-150(Special on request)
Motor - Rated current A 78
Motor - Weight of motor kg 200
45KW VSD 0.8-1.3MPa oil inject screw compressor
AIRERA 45kW VP Screw Air Compressor: Frequently Asked Questions (FAQ)
This machine supports a range from 0.8MPa to 1.3MPa. Will frequent pressure adjustments damage the unit?
Not at all. The AIRERA air end and internal systems are reinforced and engineered specifically to handle high-pressure (1.3MPa) standards. Our VSD system smoothly adjusts operational parameters to match your set pressure. This flexibility is a core advantage—whether you are prioritizing high volume at lower pressures or high penetration at 1.3MPa, the system automatically optimizes efficiency for long-term stable operation.
Why would I need a pressure as high as 1.3MPa? What are the typical applications?

1.3MPa (13 bar) provides significantly more "punch" than standard 0.8MPa systems. It is widely used in:

  • Laser Cutting: Providing higher kinetic energy to blow away molten slag, resulting in a cleaner cut.

  • Spraying & Surface Treatment: Ensuring stable terminal pressure even after long-distance piping.

  • Specialized Pneumatic Components: Driving industrial robots or molds that require higher actuation pressure.

  • Process Compatibility: If your factory has both 0.8MPa and 1.2MPa requirements, this single unit can handle both efficiently.

Is the VSD inverter prone to failure in dusty or humid factory environments?
We understand that industrial environments are complex. AIRERA utilizes inverters with IP54-rated protection (or higher), housed in independent, ventilated electrical cabinets. These cabinets are equipped with specialized dust filters to isolate moisture and debris, ensuring electronic components operate in a dry, clean, and stable environment.
