11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
11KW,15HP VSD Direct driven oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-11D C VP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
5400
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.8-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description

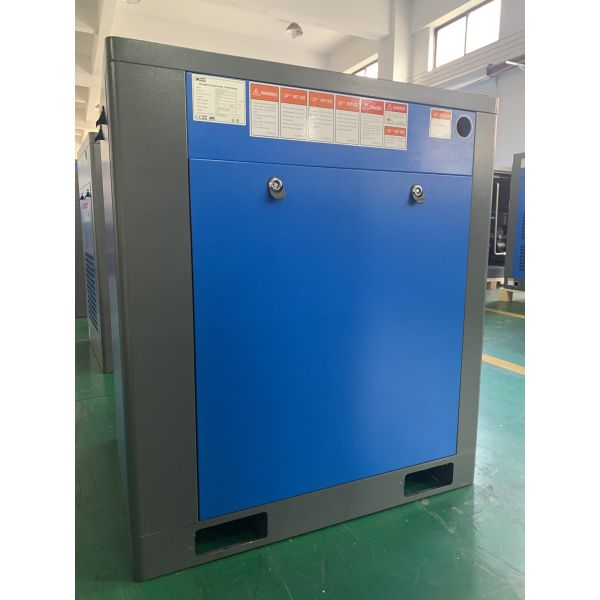

11KW,15HP VSD Direct Driven Oil Inject Screw Compressor
AIRERA | 11kW VSD Direct Driven Oil-Injected Screw Compressor
Direct Drive, Intelligent VSD — Redefining Efficiency for Mid-Sized Industry
The AIRERA 11kW Series is engineered for industrial users who demand maximum transmission efficiency and long-term stability. By replacing traditional belt drives with advanced 1:1 Direct Drive technology, this unit eliminates energy loss and mechanical wear during transmission. Paired with AIRERA's sophisticated Variable Speed Drive (VSD) system, it matches air output precisely to your real-time demand, delivering a quiet, steady power source while reducing energy costs by over 35%.
Advantages of AGCD VSD Oil-Inject Air Screw Compressor
  • Custom air intake system that prevents dust from entering
    A three-stage filtration system removes fine particles from the air, filtering out 99.99% of impurities to ensure the quality of the air entering the unit and extend its service life.
11KW,15HP VSD Direct driven oil inject screw compressor
  • Multi-touch color controller for simple and convenient operation and monitoring
11KW,15HP VSD Direct driven oil inject screw compressor
  • Upgraded high-efficiency screw compressor heads for greater airflow
    By selecting low-speed screw rotors and the most suitable motors, and pairing them with main units optimized for specific speeds, we ensure that each rotor operates at its optimal speed, achieving the best possible energy efficiency ratio.
11KW,15HP VSD Direct driven oil inject screw compressor
Technical Specifications - 11KW VSD Air Cooling Compressor
ITEM UNIT MODEL AGCD-11 VP
Free air delivery m³/min 0.45-1.65 | 0.4-1.50 | 0.33-1.15
Max. working pressure MPa 0.8 ~1.3
Compressor type Oil inject screw compressor
Cooling type Air cooling
Driven type Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity ≤90%
Noise Level dB(A) ≤70
Residual oil content ppm ≤2
Drive rotor speed rpm 800~3000
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 5400
Control mode Intelligent controller
Safety valve set pressure MPa 0.88 ~ 1.43
Lubricating water volume L 10
Compressed air outlet connection G1
Dimension - L mm 1060
Dimension - W mm 700
Dimension - H mm 1200
Net Weight kg 395
Motor - Model YPM13230-11
Motor - Speed rpm 800~3000
Motor - Rated Power KW 11
Motor - Service factor 1.2
Motor - Protection type IP55
Motor - Efficiency IE3
Motor - Startup mode Frequency conversion starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 40-150(Special on request)
Motor - Rated current A 21.8
Motor - Weight of motor kg 115
11KW,15HP VSD Direct driven oil inject screw compressor
AIRERA 11kW VP Screw Air Compressor: Frequently Asked Questions (FAQ)
What is "Direct Driven," and why is it better than a belt drive?
Direct drive means the motor is coupled directly to the airend via a flexible coupling with a 1:1 ratio.
  • Zero Loss: Transmission efficiency is nearly 100%, whereas belt drives typically lose 2-3% of power due to friction.
  • Maintenance-Free: There is no need to adjust tension or replace worn belts periodically.
  • Enhanced Stability: It eliminates the radial load on bearings caused by belt tension, extending the lifespan of both the motor and the airend.
How much on electricity bills can an 11kW VSD unit save in a real factory setting?
This depends on your air demand fluctuations. Since most factories have varying demand, the AIRERA VSD system adjusts the frequency in real-time. At an average load of 60-70%, you can save about 30% -35% annually compared to fixed-speed units. Often, the energy savings within the first year can cover the price premium of the VSD system.
Does Variable Speed Drive (VSD) affect the quality of the compressed air?
Not at all; it actually helps. The VSD system ensures constant discharge pressure. While fixed-speed units fluctuate between, say, 0.6 and 0.8MPa, AIRERA VSD locks precisely onto your set point (e.g., 0.7MPa). Stable pressure ensures consistent quality for downstream tasks like precision spraying, pneumatic tools, or automated assembly lines.
